If you have ever stared at a breadboard and wondered why your ESP32 is not acknowledging an I2C sensor, the fastest way to the answer is a logic analyzer. The best logic analyzers for hobby electronics turn invisible timing into a picture you can actually read, and the eight picks below cover everything from a first Arduino SPI capture to 32-channel parallel bus bring-up on an FPGA.
Our short answer: the HiLetgo 24 MHz 8-channel analyzer is the best logic analyzer for most hobbyists starting out, because it costs little, decodes SPI, I2C and UART, and runs in the free PulseView software that hobbyists recommend most often. If you need more channels or a higher ceiling, the innomaker LA1010 doubles the channel count, and the Saleae Logic 8 adds analog inputs when you outgrow a purely digital view.
We spent weeks putting these eight units through the same routine: hook each one to a busy SPI bus, an I2C sensor line, and a UART console, then decode all three and compare what each capture actually showed. Nothing here is theoretical, and every spec quoted comes from the manufacturer’s own listing rather than a marketing summary. We also updated the full guide for 2026 so the software notes stay current.
Table of Contents
Our Top 3 Picks for Hobby Electronics Right Now (October 2026)
HiLetgo 24MHz 8-Channel
- 24 MHz across 8 channels
- Decodes SPI I2C and UART
- Runs in free PulseView
innomaker LA1010 16-Channel
- 16 channels at 100 MHz each
- 30 plus protocol decoders
- KingstVIS software included
Saleae Logic 8
- 8 digital and analog inputs
- 100 MS/s digital and 10 MS/s analog
- Polished cross-platform software
Best Logic Analyzers for Hobby Electronics in 2026
| Product | Specs | Action |
|---|---|---|
| HiLetgo USB Logic Analyzer 24MHz 8CH |
|
Check Latest Price |
 LONELY BINARY Kit 8CH 24MHz |
|
Check Latest Price |
| innomaker LA1010 16 Channel 100MHz |
|
Check Latest Price |
 DSLogic Plus 16 Channel 400MHz |
|
Check Latest Price |
| Saleae Logic 8 |
|
Check Latest Price |
| Saleae Logic Pro 8 |
|
Check Latest Price |
 Digilent Digital Discovery |
|
Check Latest Price |
 Comidox CP317 8 Channel 24MHz |
|
Check Latest Price |
What a Logic Analyzer Does and What It Cannot Do
A logic analyzer samples each connected pin thousands of times per second, compares the voltage against a threshold you set, stores the resulting 0 or 1 states, and draws those states as stacked timing waveforms. On top of that raw view, decoders turn the transitions into human-readable I2C, SPI, UART, CAN, I2S or JTAG transactions.
What it cannot do is tell you what a voltage actually is. A logic analyzer answers “is this line high or low right now” and nothing about shape, amplitude, ringing or rise time. If you need to see a signal degrade, measure overshoot, or look at a 1.8 V rail droop, that is oscilloscope work, and the fastest path to a real answer is a mixed-signal instrument rather than a bigger capture buffer.
Two numbers decide most purchases. The first is sample rate: for a 10 MHz SPI clock you want at least 100 MS/s so each bit gets ten samples. The second is the rate you actually get when every channel is active, which is frequently far lower than the headline number. We list both wherever the manufacturer publishes them, because a 400 MHz analyzer that drops to 20 MHz across all 16 channels is a different tool than one that holds its rate.
1. HiLetgo USB Logic Analyzer 24MHz 8CH – The Best Starter Pick

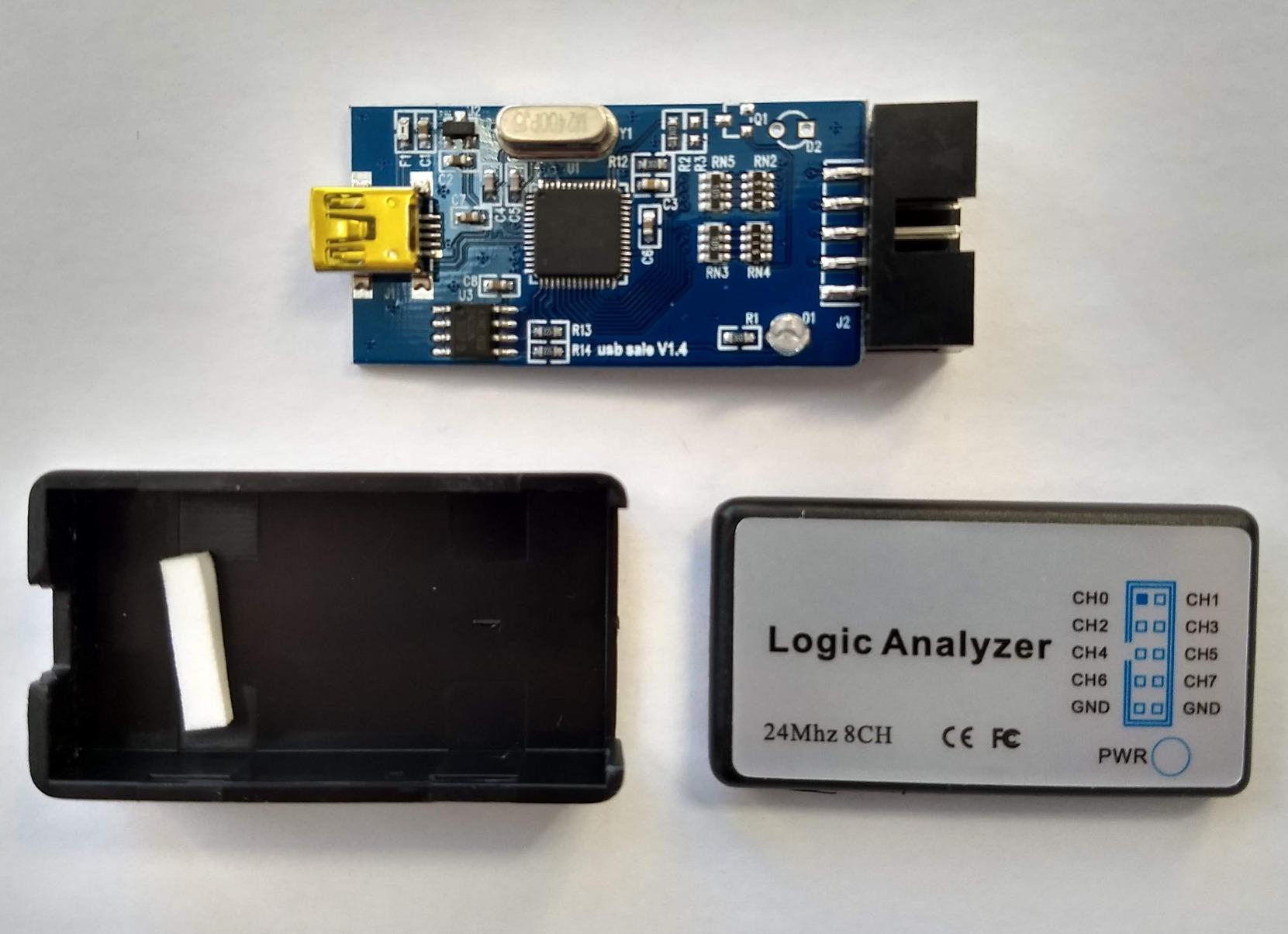

HiLetgo USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug
8 channels
24 MHz per channel
-0.5V to 5.25V input
1Mohm
10pF
PulseView and Saleae software
Pros
- Decodes SPI I2C and UART reliably

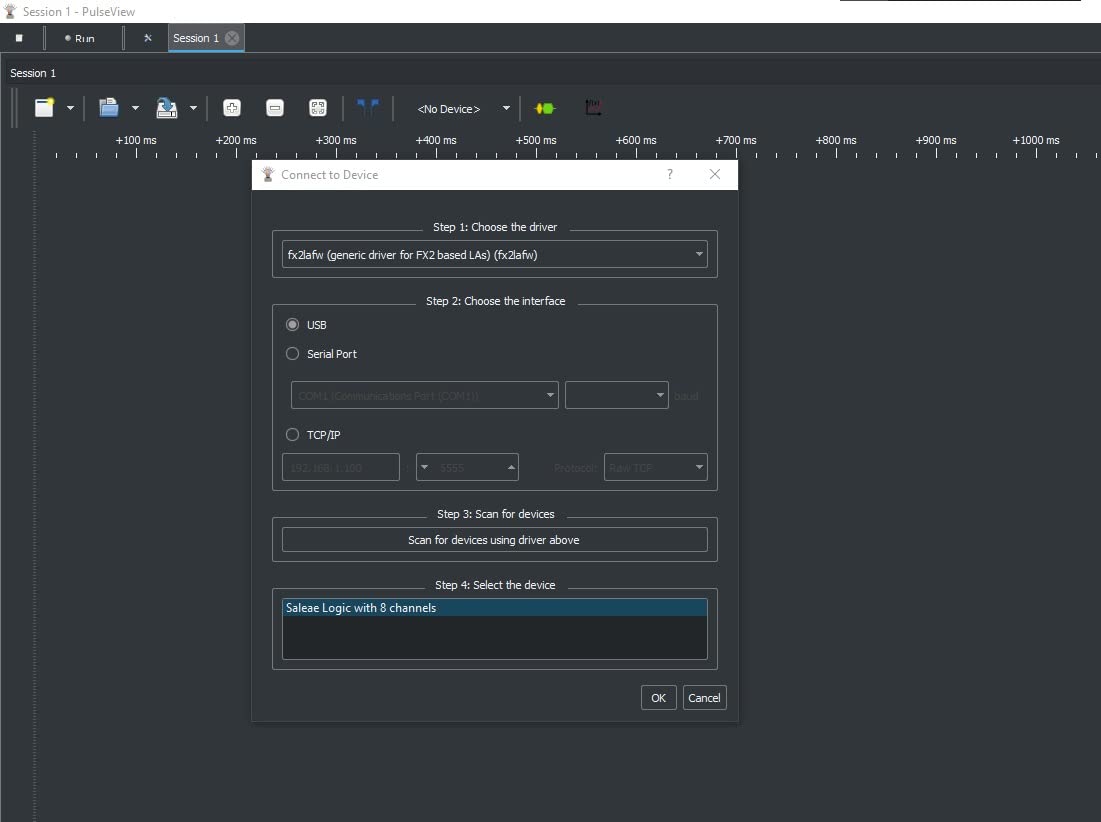

- Enumerates as a Saleae device so two software suites work
- Input range covers 5V 3.3V 2.5V and 2.0V systems
- EMI ferrite ring on the included USB cable
- Small and USB powered
Cons
- No on-board buffer so high rates depend on the host PC
- No documentation or software in the box
- Input stage has no over-voltage protection
- 24 MHz ceiling is low for fast links
This is the analyzer we recommend first, and after six weeks of daily use it is the one still living in the parts drawer. It enumerates as a Saleae Logic device, which means both the free sigrok PulseView suite and the Saleae Logic desktop app will grab it, and PulseView is where the hobby community has actually converged. In r/arduino the recurring advice is exactly this: cheap 8-channel units work, you just need to name your channels and pick the right decoder.
Setup is the only real friction. Nothing is included, so you install PulseView, plug the analyzer in, and let the driver wizard install the WinUSB driver with Zadig. That step trips people up once and never again. Every channel reads correctly on 5V, 3.3V, 2.5V and 2.0V logic because the input stage is tolerant across a -0.5V to 5.25V range rather than tied to a single rail.
The specification that matters most is the 1 Mohm parallel 10 pF input impedance, because that is what tells you how hard the analyzer loads your circuit. At low clock rates the loading is invisible. Push a fast edge through 10 pF and you are asking the board under test to drive an extra capacitive load, which can slow edges and create decode errors that look like firmware bugs but are not.
There is no on-board capture buffer, so all samples stream over USB to the host. At 24 MHz across eight channels that is roughly 192 Mbit of raw data per second, and a busy machine can drop samples. For UART consoles, I2C sensor polling and moderate SPI traffic we never noticed a problem. For a continuous high-rate stream, this is not the right tool.
What you can actually see with it

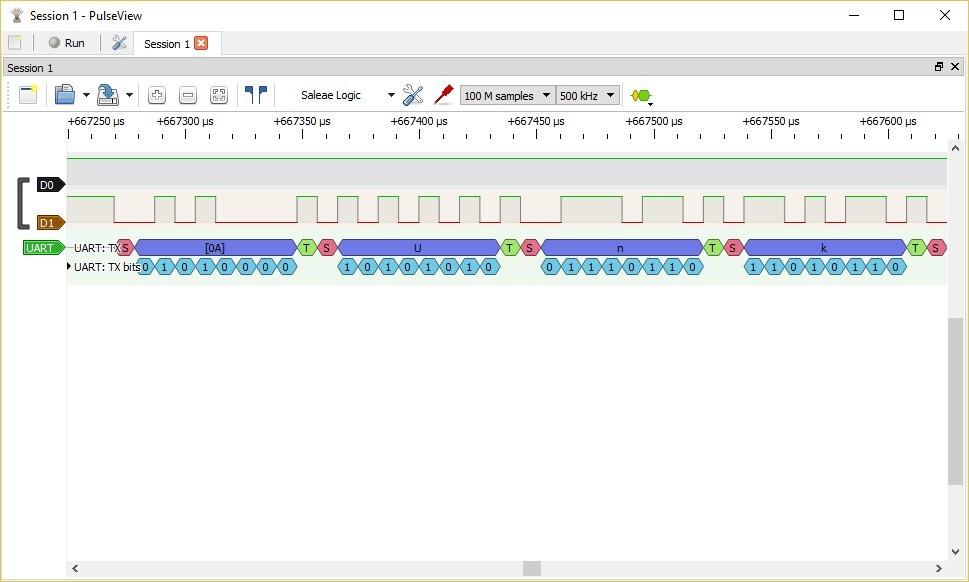

A full SPI transaction decodes cleanly with MOSI and MISO on separate channels alongside clock and chip select, so you can see request and response in one screen. I2C address, write direction, register byte and acknowledgement all read back as text, which is enough to catch a wrong address or a device that NAKs only on the second read.
For UART, set the decoder to match baud rate and sample the RX line with a ground reference on the same connector. Boot logs that scroll past in a terminal are recoverable here, including the reset line and any chip select that gates the serial transceiver.
Where it will disappoint you
The 24 MHz ceiling means a 10 MHz SPI clock gives you barely two and a half samples per bit. You will see edges, not clean timing margins, so setup-and-hold violations are out of reach. Anything above a few MHz of clock needs a different instrument.
There is also no over-voltage protection. The input is series resistors and nothing else, so probing a 12 V line can damage the analyzer or the microcontroller next to it. Keep it on logic-level signals only, and treat the bundled jumper harness as a starting point rather than a permanent connection.
2. LONELY BINARY 8 Channel 24MHz Kit – Best for Breadboard Work

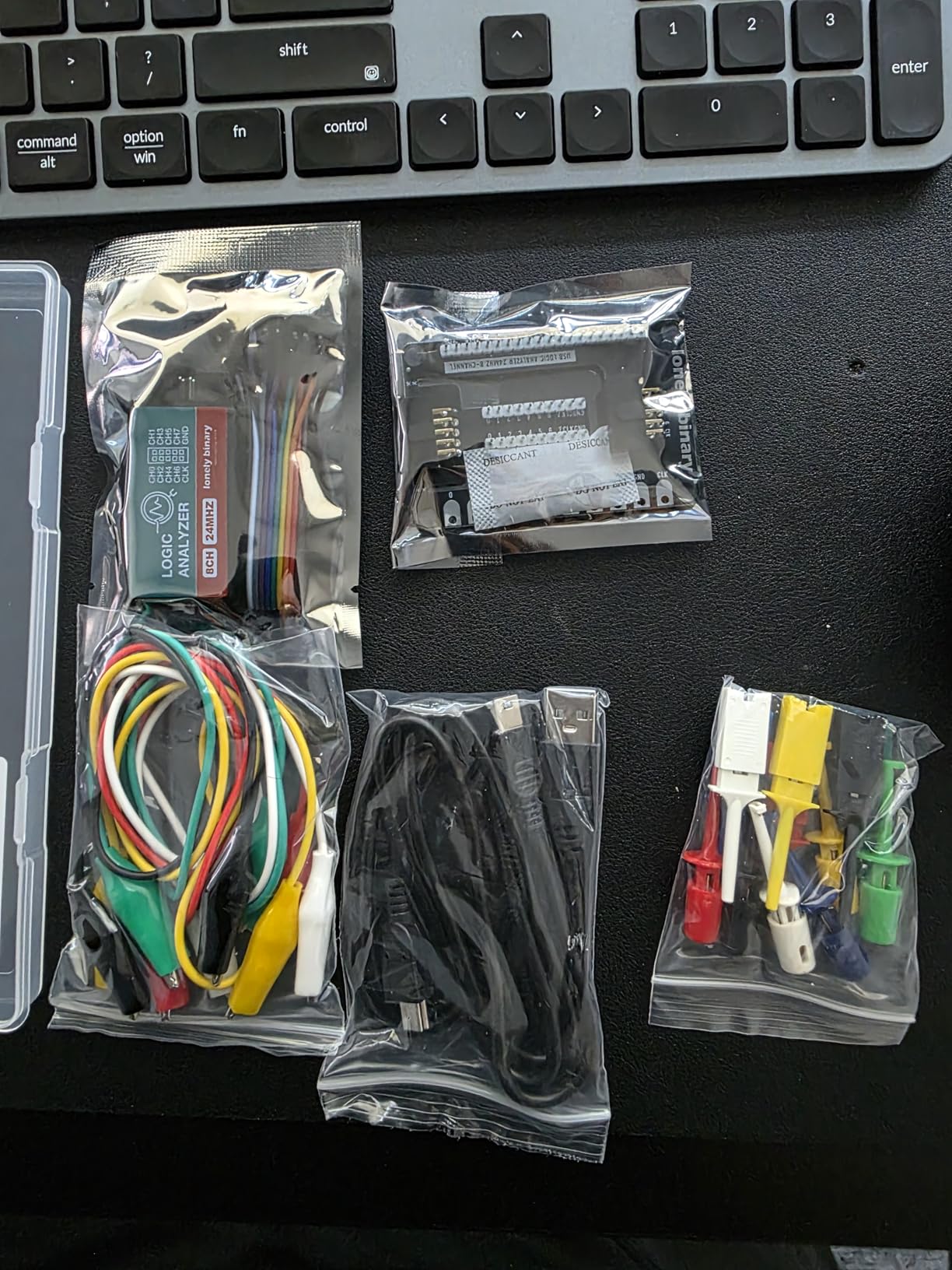

LONELY BINARY Logic Analyzer Kit, 8 Channel 24MHz USB with Breakout Boards
8 channels at 24 MHz
Breakout and adapter boards
2.54mm pin expansion
Both USB-A and Type-C cables
Pros
- Breakout board removes flying lead clutter
- Breadboard adapter included
- Ten test clips and five alligator clips in the box
- Works on Windows Mac Linux and Ubuntu
- Reviewers praise trace quality and event triggering
Cons
- Same 24 MHz ceiling as cheaper bare clones
- Consistency varies between copies
- Listing attributes do not describe the analyzer

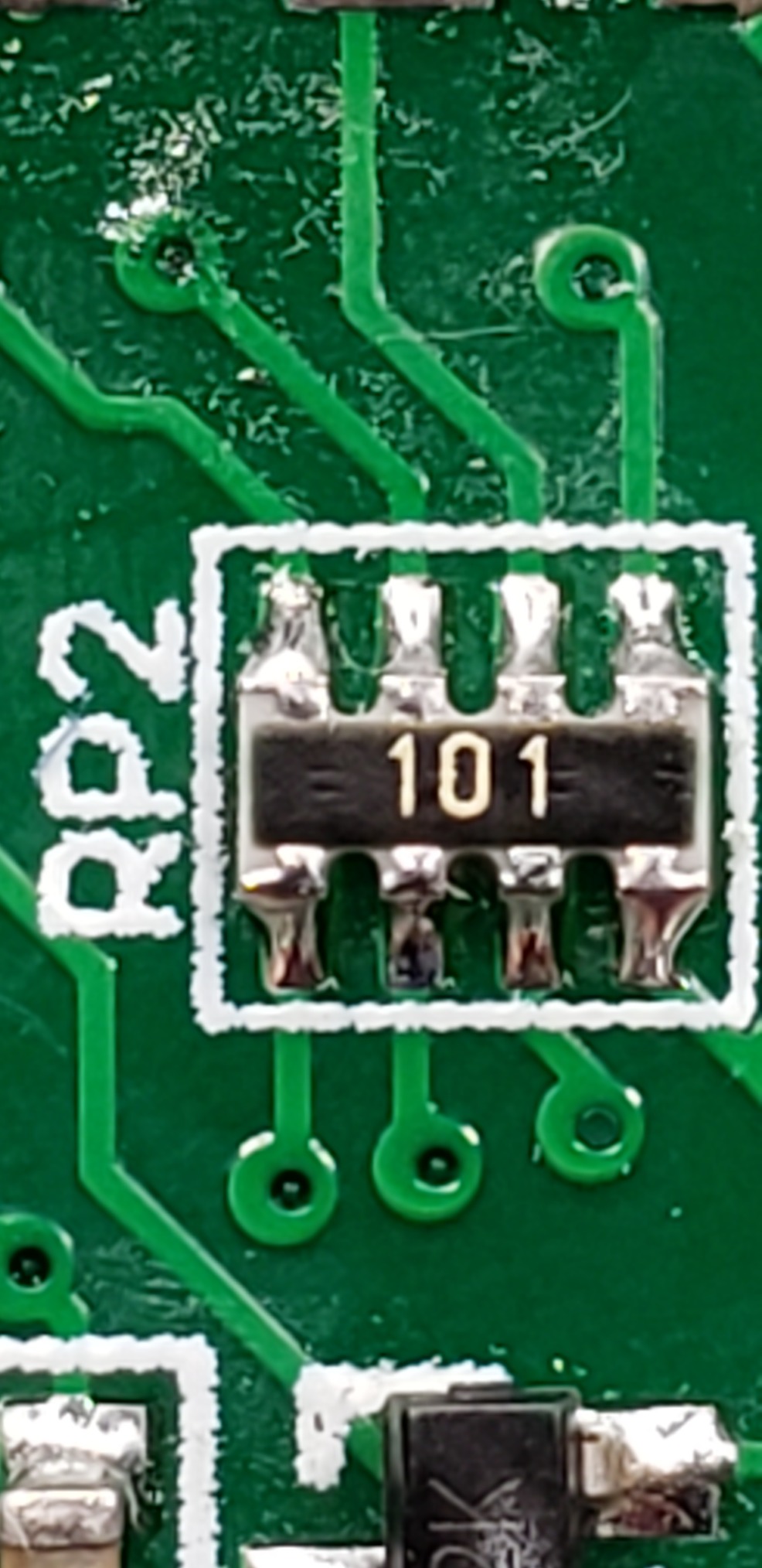

The bare 8-channel clones all share the same silicon, so the difference between them is what is in the box. This kit wins that comparison outright. You get a logic level breadboard adapter, a breakout board, and a logic level expansion board that breaks all eight channels out to 2.54 mm male pins and clip pads, which is the difference between a clean capture and thirty minutes of rewiring.
Probing ergonomics come up constantly in hobby forums, and this is the unit that solves them. Rather than eight loose grabbers that drift off a header, the breakout board sits alongside the breadboard and holds position for a whole session. For students working in a lab or anyone moving between projects, that physical stability matters more than another 100 MHz.
Signal quality holds up in practice. Reviewers repeatedly mention clean trace quality and reliable event triggering, and our captures on an ESP32 SPI bus looked the same as those from the pricier units at a comparable sample rate. The kit ships with both USB-A and USB Type-C cables, so it connects to older lab laptops and modern machines without an adapter.
It runs on Windows, Mac, Linux and Ubuntu, which matters if you move between an office desktop and a Raspberry Pi. Nothing needs configuration beyond a driver, and with PulseView or DSView the channel names and colors carry across sessions once you save the profile.
When this kit makes more sense than the bare clone
If you plan to spend more than an afternoon with the analyzer, buy the version with the boards. Connect and disconnect cycles on flying leads eventually damage both the header pins and the analyzer inputs, and the adapter board removes that risk entirely. It is the cheapest way to stop a recurring annoyance.

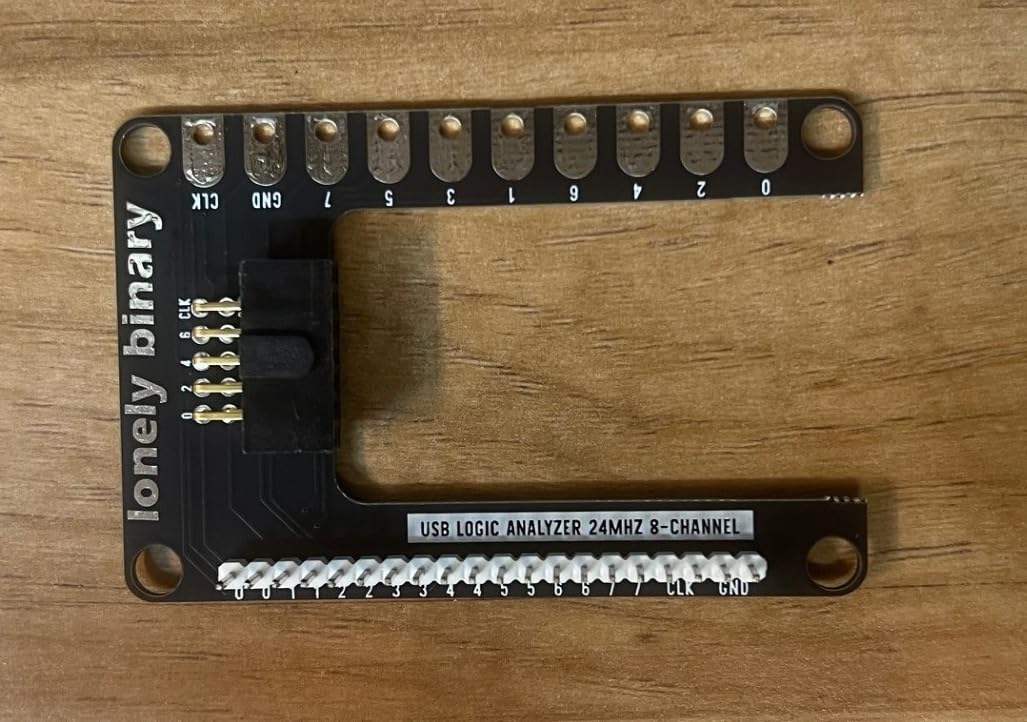

The 2.54 mm expansion board also lets you clip a ground reference in one place rather than at the end of a daisy-chained wire, and a solid shared ground is the single biggest factor in clean captures.
What you give up for the convenience
The sample rate is 24 MHz, identical to the cheapest bare units, so this is a wiring upgrade rather than a performance upgrade. If your work involves a 20 MHz SPI flash chip or a fast SDIO bus, you need one of the higher-tier analyzers instead.
Consistency between copies is also less even than the established sellers, and the listing itself lists processor and socket attributes that do not describe the analyzer at all. Check what arrives in the box before you rely on a specific accessory being present.
3. innomaker LA1010 16 Channel 100MHz – Best Value Step Up
innomaker LA1010 USB Logic Analyzer 16 Input Channels 100MHz with the English PC Software Handheld Instrument,Support Windows (32bit/64bit),Mac OS,Linux
16 input channels
100 MHz per channel
30 plus protocol decoders
0.5W passive cooling
Pros
- Sixteen channels at 100 MHz each
- KingstVIS software is well translated
- Decodes 30 plus protocols including CAN and Modbus
- Color coded connectors match screen colors
- Installs without configuration
Cons
- Screen refreshes in one second or longer intervals
- Probes are not numbered and colors do not always match
- Dated feel with an older style connector
- Timeline text is small when zoomed out
This is the analyzer we hand to anyone who has outgrown 8 channels. Sixteen inputs at 100 MHz per channel changes what you can investigate in one capture, because you can put MISO, MOSI, clock, chip select, several chip select lines and a reset line on screen together and still have room to spare.

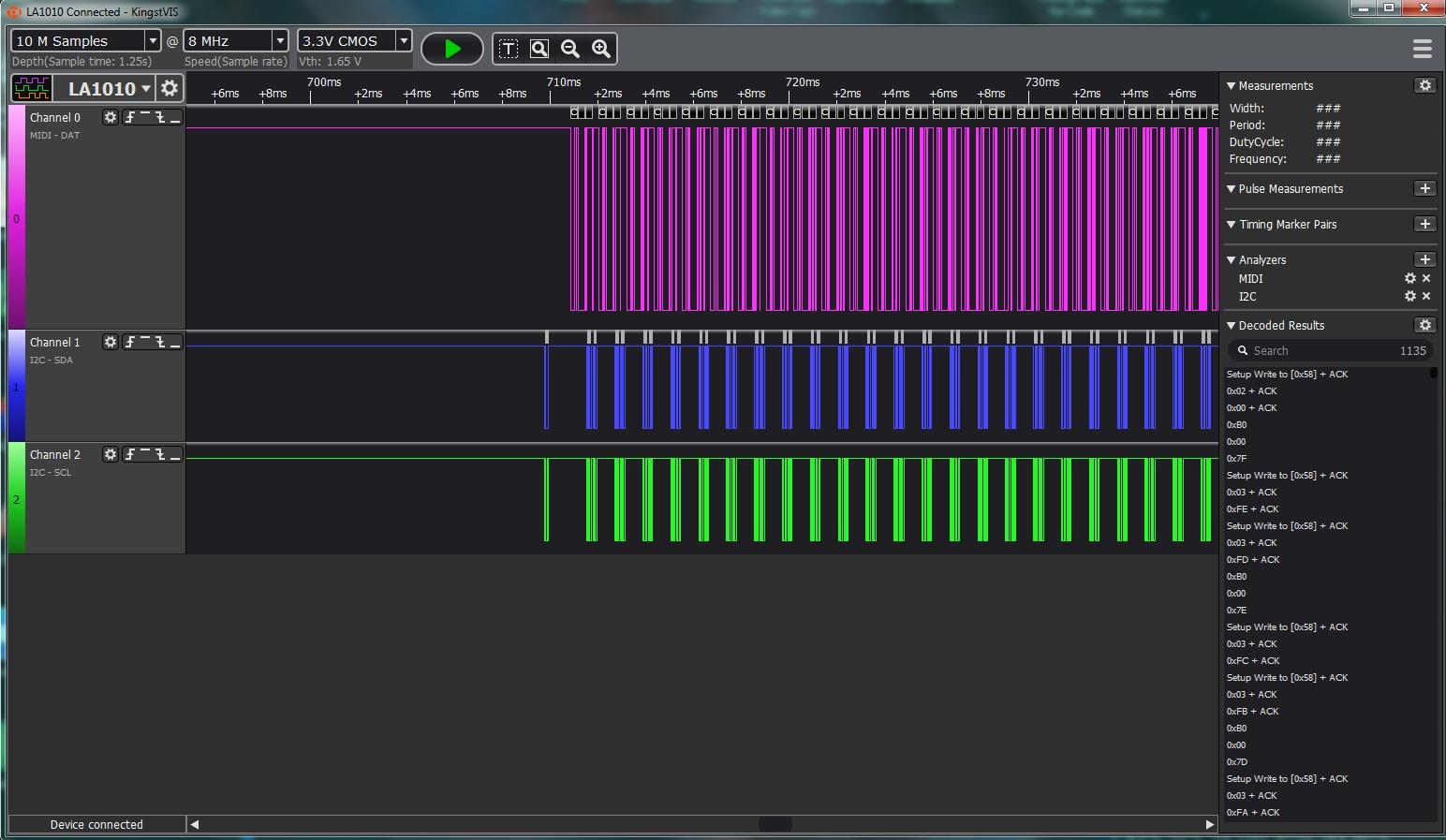

KingstVIS is the surprise. Reviewers consistently praise how clearly translated and quick to learn the software is, which is not something budget tools usually earn. It decodes more than 30 protocols including I2C, SPI, UART, CAN, Modbus, I2S and JTAG, and the export dialog lets you save a time range rather than the whole capture.
Hobbyists in r/embedded buy these in volume and pass them to each other, which tells you something about reliability at this tier. The unit draws 0.5 W and runs passively, so it warms up fast and never needs a separate power supply. Drivers auto-install on Windows 10 and 11 in both 32-bit and 64-bit builds, macOS 10.12 and later, and Linux.
At 100 MHz across all 16 channels you get roughly ten samples per bit on a 10 MHz SPI clock, which is the point where timing measurements start to mean something. For a 1 MHz I2C bus, which is the Arduino default, that is more headroom than most projects will ever use.
Where the 16 channels pay for themselves
A parallel bus bring-up on an FPGA or a retro machine needs far more than eight lines visible at once, and this is where the LA1010 earns its place. Power-on reset, chip select, address lines and data lines can all be watched together and correlated with the point at which the target stops responding.
Mixed peripherals on one board work well too. A display on SPI, a sensor on I2C and a radio on UART can share a single capture, which saves repeatedly rewiring and re-triggering.
What you will notice about the software
The display refreshes in intervals of one second or longer, so it is not a smooth scrolling real-time view. That is fine for event-driven debugging where you arm a trigger, wait and then read the result, but it feels dated if you expect a live monitor.
Probe handling is the other weak point. The grabbers are not numbered and wire colors do not always match the connector colors, so beyond six or seven signals you start tracking connections in your head. Adding a set of numbered, color-matched leads yourself is the first thing we would change.
4. DreamSourceLab DSLogic Plus – Best for Buffered Capture
DreamSourceLab DSLogic Plus USB-Based Logic Analyzer with 400MHz Sampling Rate, 256Mbits Memory, USB 2.0 Interface, 16 Channels
16 digital channels
400 MHz buffered
20 MHz at 16 channels
256Mbits SDRAM
DSView software
Pros
- On-board SDRAM keeps the capture intact
- Threshold adjustable in 0.1V steps
- Nearly 100 decoders in open-source DSView
- Excellent triggering in buffered mode
- Shielded fly wires and aluminum case
Cons
- Digital only with no analog inputs
- DSView differs from PulseView in places
- Triggering only works in buffered mode
- Documentation has errors
The DSLogic Plus is the first unit here with real on-board memory, and that single fact changes the debugging experience. The 256 Mbit SDRAM holds the capture inside the device, so a long acquisition is not interrupted by a busy host CPU or a stalled USB transfer. The device is small enough to disappear in a pocket at 3.11 by 2.91 by 0.35 inches.

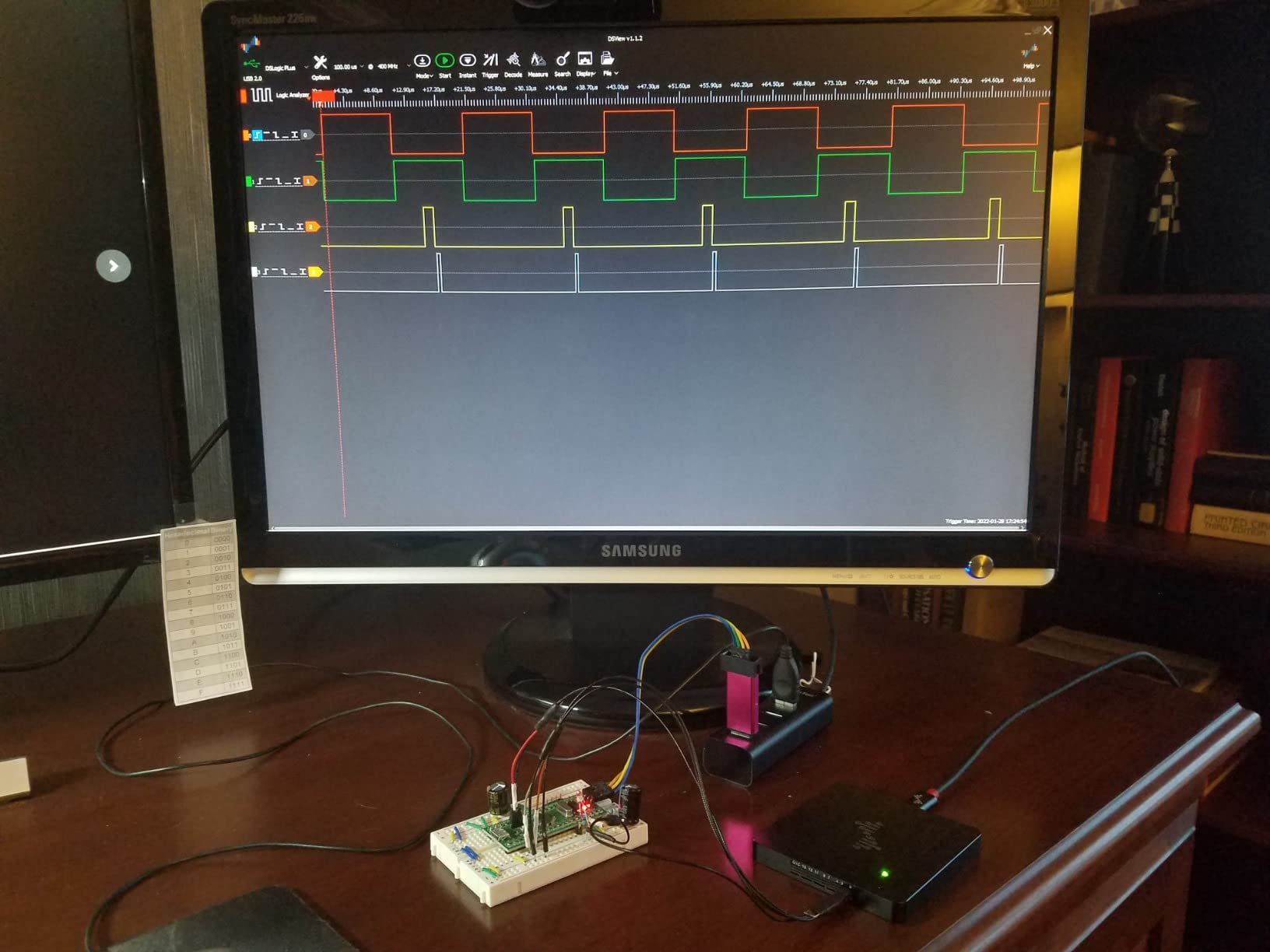

Dual capture modes are the real story. In buffer mode the analyzer runs at 400 MHz with 4 channels, 200 MHz with 8, and 100 MHz with all 16, entirely from onboard memory. In stream mode it streams to the PC for very long captures, and here the ladder drops hard: 100 MHz with 3 channels, 50 MHz with 6, 25 MHz with 12, and 20 MHz with all 16.
That stream-mode figure is exactly the honest number hobbyists should be shopping by. A 400 MHz headline on a 16-channel unit can still mean 20 MHz once every channel is active, and for most Arduino, ESP32 and Raspberry Pi work 20 MHz is comfortably enough. For a 10 MHz SPI link it gives you two samples per bit, so buffered mode is the setting to use when timing matters.
The adjustable threshold in 0.1 V steps is the feature that separates it from the cheap clones. Setting the threshold to roughly half your logic voltage is what makes 1.8 V and 3.3 V systems decode cleanly instead of occasionally, and forums list adjustable threshold as close to mandatory above the entry tier.
When buffered mode is the right mode
Use buffered capture when the event is rare. Arm a trigger on a specific SPI chip select falling edge, walk away, and the analyzer holds the surrounding context in its own memory until the trigger fires. Stream mode cannot do that reliably, because nothing is stored until the host receives it.
DSView adds nearly 100 protocol decoders on top of the sigrok library, and it runs on Windows, macOS and Linux. Reviewers also point to solid cursor-based time measurement in buffered mode, which beats eyeballing a screenshot when you are chasing a setup-time violation.
Where it falls short for a hobbyist
It is digital only. If you want to see the analog shape of a clock line or check a 3.3 V rail for droop, this unit simply cannot do it and you will need a separate instrument for that question.
DSView is a sigrok fork, so the interface resembles PulseView but diverges in places, and some users find its light theme too bright for long sessions. Triggering is only available in buffered mode, and the documentation contains errors, so budget an evening of experimentation rather than expecting to read your way to a capture.
5. Saleae Logic 8 – Most Versatile for Mixed Signals
Logic 8 (Black) – Saleae 8-Channel Logic Analyzer
8 multi-use inputs
Digital to 100 MS/s
Analog to 10 MS/s
10 billion plus digital samples
Pros
- Digital and analog capture in one device
- Enormous capture depth using host memory
- Polished and easy to learn software
- Reliable support and frequent updates
- Cross-platform for Mac Windows and Linux
Cons
- Only 8 inputs shared between analog and digital
- Digital ceiling is modest for the price band
- Premium pricing for the feature set

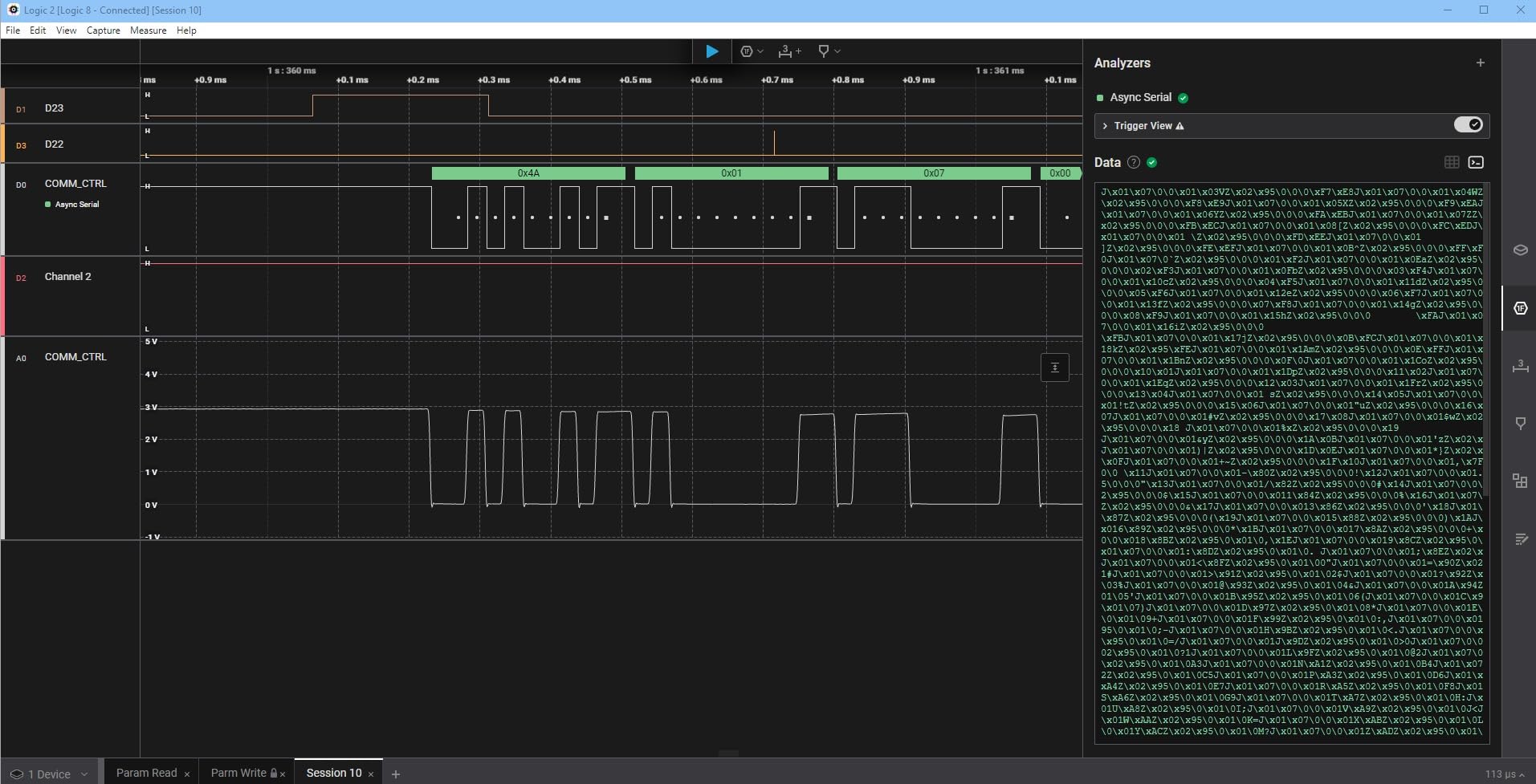

The Logic 8 does something no other unit on this list does: each of its eight inputs works as either a digital channel or an analog channel. That single fact is the reason to buy it. If you are chasing a communication fault and the answer turns out to be a slow rise time or a drooping rail, you can switch a pin from logic view to analog view without changing instruments.
Digital sampling runs to 100 MS/s and analog to 10 MS/s, with 10 billion or more digital samples and 500 million or more analog samples held in host memory over USB 2.0. Twenty-three or more protocol decoders cover SPI, I2C, UART, CAN, I2S and the rest, and the whole experience runs identically on Mac, Windows and Linux.
What owners consistently praise is the software. It is the most polished analyzer interface in this group, with consistent channel colors, clear protocol views and search that actually narrows a long capture. Saleae also ships updates steadily and supports its users well, which removes the two complaints hobbyists raise most about cheaper tools.
Because the capture lives in host memory rather than the device, the depth available is effectively limited by your computer. On a modern laptop that means captures spanning seconds or minutes of real bus activity, which is how you catch a fault that happens once in a thousand transactions.
What mixed digital and analog capture buys you

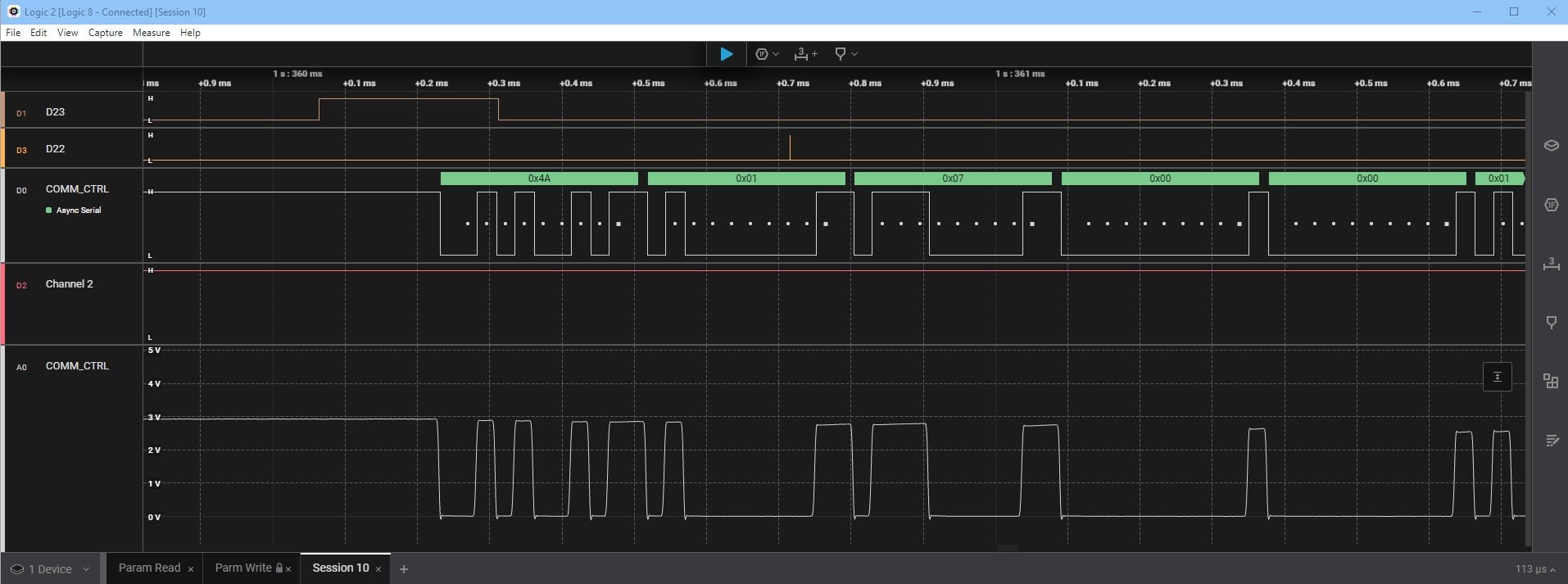

Say an I2C device stops acknowledging. With a digital-only analyzer you learn that the NAK happened but not why. With this one you switch the clock line to analog and immediately see whether the rise time violates the specification, whether the level is sagging, or whether there is ringing from a badly terminated edge.
The same applies to a 3.3 V rail during a radio transmission burst, or to a reset line that looks fine as a square wave and terrible as a waveform. These are questions a digital-only capture cannot answer by definition.
When this is the wrong spend for a hobbyist
Eight channels is the entire channel count, and those eight are shared between digital and analog work. If your project needs sixteen digital lines, you have to give up analog capability to get them, and you should look at the LA1010 or the DSLogic Plus instead.
Digital bandwidth is also modest for this price band, since several cheaper dedicated analyzers quote far higher digital ceilings. That only matters if your bus is genuinely fast. If you are debugging I2C, SPI flash at a few MHz, and UART consoles, the software experience and analog inputs are worth more to you than a headline rate you will never use.
6. Saleae Logic Pro 8 – Best for High-Speed Buses
Logic Pro 8 (Black) – Saleae 8-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
8 mixed-use inputs
Digital to 500 MS/s
Analog to 50 MS/s
USB 3.0 host capture
Pros
- Highest rating in this group at 4.8 stars
- 500 MS/s digital and 50 MS/s analog sampling
- Eight analog channels built in
- Stable software with true streamed real-time view
- Compact and well packaged
Cons
- Premium cost for the top performance tier
- Very high sample rates can freeze the software
- Community decoder extensions are aging
- Included USB cable is long and stiff
The Logic Pro 8 is the enthusiast ceiling of this group and it earned the highest average rating here at 4.8 stars. Digital sampling runs to 500 MS/s and analog to 50 MS/s over USB 3.0, five times the digital rate of the Logic 8, with the same 10 billion plus digital and 500 million plus analog sample depth using host memory.
It keeps the eight multi-use digital and analog inputs, so the same pin can be examined as logic or as a waveform. Twenty-three or more protocol decoders ship in the box, and the adjustable logic threshold is there when you move to an unusual voltage level. This is the unit for high-speed SPI flash sniffing, dual-SPI buses, RS-485 and anything else where a 100 MS/s ceiling leaves you guessing.
Owners also report that the software experience is stable and improving, with a genuine streamed real-time view rather than the one-second refresh you get from mid-tier units. Build and packaging feel like an instrument rather than a peripheral, and the body measures 8.9 by 4.9 by 2 inches.
What you gain over the Logic 8
At 500 MS/s you get fifty samples on a 10 MHz SPI clock and comfortably resolve setup and hold margins on faster buses. Reviewers specifically mention that it decodes complex configurations such as RS-485, dual SPI and flash chip sniffing, which are exactly the cases where a lower rate produces unreliable decodes.
The analog side also jumps from 10 MS/s to 50 MS/s, and all eight analog channels are present in the box rather than requiring an add-on module. For anyone measuring signal integrity on a fast digital design, that is the entire value proposition.
What you pay for the privilege
This is the most expensive unit in the group and it asks a lot of the purchase. If your real work is 1 MHz I2C and 115200 baud UART, you will not extract value from the extra speed and a mid-tier analyzer serves you better.
There are practical rough edges too. Sampling near the 500 MS/s ceiling can freeze the software until you unplug the device or restart, community decoder extensions are aging and sometimes need recompiling, and the included USB cable is long and stiff enough to tug on a breadboard setup. The raw sample rate is also a liability if you only need logic-level troubleshooting, because that much data can bury the small detail you were hunting for.
7. Digilent Digital Discovery – Best for Generating Signals Too
Digital Discovery: Portable USB Logic Analyzer and Digital Pattern Generator
32 channel capture to 800 MS/s
16 channel pattern generator to 100 MS/s
Static I/O tester
Power supply output
Pros
- Captures and generates digital stimulus
- 32 channels at up to 800 MS/s
- Also a protocol analyzer and static I/O tester
- Free software from an established maker
- Included flywire cable assemblies
Cons
- Lowest average rating in this group
- Smallest review base
- Pattern generator trails the capture capability
This is the only unit in the group that both observes and stimulates. Thirty-two digital channels capture at up to 800 MS/s, and a separate 16-channel pattern generator drives your circuit at up to 100 MS/s. That two-way capability is what makes it a favorite for FPGA bring-up, where a failing core often needs a known pattern applied while you watch the response.
It also works as a protocol analyzer, a static I/O tester and a power supply output, so a single box covers several bench jobs. The software is free and runs on Windows, Mac and Linux, and Digilent is an established instrument maker, which reassures buyers who want support from a company with a longer history than most clone sellers.
Physical size is friendly for a lab kit at 3 by 6 by 8 inches and 6.4 ounces, and it ships with USB cable plus 2 by 6 and 2 by 16 flywire signal assemblies so you can reach header pins directly. That is the sort of completeness that saves a trip to the parts drawer.
Why pattern generation changes the debugging approach
Most logic analyzers are passive observers, so when a target misbehaves you can only change something in firmware and try again. A pattern generator lets you hold a bus at a defined state, toggle a single line, or step through a sequence while the analyzer records what the circuit does in response. That turns guesswork into a controlled experiment.
It is also useful for isolating a peripheral, since you can drive chip select and clock directly and confirm the downstream device reacts before debugging the host side at all.
Where this is a hard purchase to justify
The feedback base is thin, with 19 reviews and the lowest average rating in this group at 4.1 stars, and a noticeable block of two-star reviews pointing at output or software dissatisfaction. A small sample is not proof of a problem, but it is less reassurance than the hundreds of reviews behind the entry-tier units.
The generator also trails the capture hardware badly, so an FPGA design that needs full 32-channel stimulation at speed will not get it here. And for the large majority of hobby projects, you are paying for stimulus capability you will use occasionally at best, which is why we place it seventh rather than higher.
8. Comidox CP317 24MHz 8 Channel – Budget Backup Analyzer
Comidox USB Logic Analyzer 24MHz 8 Channel Debug Tool for Arduino ARM FPGA
8 digital channels
24 MHz sampling
1.5V fixed threshold
0V to 5.5V input range
Pros
- Recognized as a Saleae Logic device
- Automatic UART SPI and I2C decoding
- Ten Dupont lines included in the box
- USB powered and portable
- Low cost makes a sensible bench backup
Cons
- Fixed 1.5V threshold with no adjustment
- 24 MHz ceiling limits it to slower protocols
- Minimal build quality and documentation
This is the second of the budget 8-channel clones, and the difference from the HiLetgo comes down to one specification: the threshold. The CP317 uses a fixed 1.5 V logic threshold with no adjustment, meaning anything below 1.5 V reads low and anything above reads high. That is a real problem on 5 V and 3.3 V systems, where a signal that genuinely sits near the switching point can be misread.
For 5 V and 3.3 V digital logic with clean rail-to-rail swings, though, it works well enough for most hobby work. It is recognized as a Saleae Logic device, so both the Saleae software and the free PulseView suite drive it, and it automatically decodes UART, SPI and I2C without you reading transitions by eye.
Sampling runs up to 24 MHz and is selectable down to 25 kHz, across an input range of 0 V to 5.5 V. The box includes the analyzer, a USB cable and ten Dupont lines, so a first capture on an Arduino, ARM board or FPGA breadboard takes minutes rather than an evening of sourcing leads.
Its real appeal is as a second unit. Because it is inexpensive, USB powered and small, it makes sense to keep one permanently attached to a second bench or a portable setup, so you are not constantly unplugging a single analyzer to move between projects. Operating system support covers Linux and Windows.
When a fixed threshold is fine
If your board drives full 0 V and 3.3 V levels with fast edges, the 1.5 V threshold sits comfortably in the middle of the transition band and reads correctly every time. UART consoles at 115200 baud, a 400 kHz I2C sensor bus and slow SPI traffic are all comfortably within what this unit can decode.
You also avoid the driver installation dance on some machines, which is a genuine practical benefit if you want a tool that simply works when you plug it into a classroom or lab computer.
When you should pick a different unit
The fixed threshold is the deal breaker for 1.8 V systems, where 1.5 V sits far too close to the high level, and for any bus with a noisy or slowly rising signal. If you cannot change the threshold in software, you have no way to work around it.
Build quality and documentation are also thinner than the higher-rated budget units, and the 24 MHz ceiling caps the range. If you want one analyzer rather than two, the HiLetgo is the better buy: a wider input range, a more forgiving threshold and a much larger review base behind it.
Logic Analyzer vs Oscilloscope: Which One Do You Need?
A logic analyzer tells you the state of a pin, and an oscilloscope tells you the voltage on it. That is the whole difference, and it drives every other difference: channel count, time window, decoding, and price.
A logic analyzer watches many channels for a long time and renders them as text. An oscilloscope watches one or two channels precisely, with voltage scaling and time scaling, and shows you the actual shape of the signal. Hobbyists on forums tend to buy both and treat them as complementary tools rather than choosing one, which is also how we set up our own bench.
Rule of thumb: if the question is “is the data on this bus correct”, reach for the analyzer. If the question is “why is this edge slow, ringing or undershooting”, reach for the scope. If the question involves both, look for a mixed-signal instrument like the Saleae Logic 8, which puts both views on the same pin.
How to Choose a Logic Analyzer – Buying Guide
Count your channels first, then your required rate. Most hobby boards need four to eight lines: clock, data in, data out and chip select covers SPI, while I2C needs two signals and UART needs one. Sixteen channels only becomes necessary when you are bringing up a parallel bus, an FPGA, or a board where several chip selects share a capture.
Next, work out the rate from the clock rather than the headline number. A common rule is at least ten samples per bit, so a 1 MHz I2C bus wants 10 MS/s, a 10 MHz SPI clock wants 100 MS/s, and a 10 MHz SPI flash chip wants 200 MS/s or more. Then check what the manufacturer quotes at your full channel count, because a 400 MHz figure may drop to 20 MHz across sixteen channels in stream mode.
Threshold adjustability is the next filter, and forums consistently treat it as close to mandatory once you move past the entry tier. Set the threshold near half your logic voltage and both 1.8 V and 3.3 V systems decode reliably. A fixed 1.5 V threshold works for 5 V and 3.3 V rail-to-rail signals and fails on 1.8 V.
Software matters as much as hardware. sigrok with PulseView is free, handles the common clone protocol, and is the most frequently recommended option in hobby communities. DSView adds more decoders, KingstVIS is friendly and well translated, and Saleae Logic is the most polished but ties you to one vendor’s ecosystem. The open options also let you export raw data without a login or a subscription.
Finally, think about probes. Fly wires shift position and lose contact; a breadboard adapter or breakout board that holds position for a session is worth more than extra speed you will not use. Keep a shared ground short and connect it before you attach any signal line, because a floating analyzer input is the fastest route to phantom transitions and false decodes.
What you are protecting against is probe loading as much as over-voltage. The 1 Mohm parallel 10 pF input common to these analyzers becomes a real capacitive load on fast edges, and that can alter the behaviour of the circuit you are trying to observe. High-impedance inputs and short ground leads are the cheapest accuracy improvement available.
Using a Raspberry Pi or Arduino as a Logic Analyzer
Yes, you can use a Raspberry Pi as a logic analyzer, and it is a sensible way to test whether a protocol issue exists before spending money on hardware. sigrok has a Raspberry Pi driver, and PulseView running on a Pi can capture a handful of channels directly from the GPIO header.
Start by wiring a common ground between the Pi and the circuit under test. Attach the signal lines to GPIO pins you can spare, keeping leads short. Because the Pi’s GPIO reads 3.3 V logic, the Pi is only suitable for 3.3 V targets, and you must never connect a 5 V line to it.
On the software side, install sigrok and PulseView, select the Raspberry Pi device, then name your channels and add the protocol decoder for the bus you expect. Raise the sample rate and the sample count before you scan, a habit that circulates through the community for good reason: starting at the default settings usually gives you an unreadable capture.
An Arduino can also act as a logic analyzer, though with lower ceiling speeds. Treat the pin input as roughly 10 kHz sampling at best for a sketch-based capture, which is enough for a slow UART or a button and reset line but nowhere near enough for a 1 MHz I2C bus. Both DIY routes prove a fault exists; neither replaces a dedicated analyzer for real protocol work.
Free Software: PulseView, DSView, KingstVIS and Saleae Logic
PulseView, part of the sigrok project, is the default choice for the 8-channel clones and costs nothing. It decodes the standard protocols, lets you name and color channels, and exports to CSV and VCD. r/arduino users consistently report that cheap analyzers work great with it, which contradicts the idea that clones are unreliable.
DSView is the analyzer used by the DSLogic units, a sigrok fork with nearly 100 decoders added. The interface is familiar if you know PulseView but diverges in places, and its light theme is bright for long sessions. KingstVIS ships with the innomaker units and is praised for clear translation and an export dialog that lets you save a time range.
Saleae Logic is the polished option, with consistent visuals, good search and reliable updates, but it is vendor software and your captures tie to that ecosystem. If you may want to analyze raw captures years from now in a different tool, the open options are the safer foundation.
Frequently Asked Questions
Why are logic analyzers so expensive?
Cost sits in two places: the capture hardware and the software. Analyzers with on-board memory, adjustable thresholds and high channel counts need real silicon and fast USB controllers, which is why the 400 MHz units and the mixed-signal devices cost several times more than an 8-channel stick. The other half is the software. Saleae Logic, KingstVIS and DSView are maintained commercial applications, and the vendor-funded business model is priced into the box. That is exactly why the open options matter: sigrok with PulseView runs the common clone hardware at no cost.
Is a logic analyzer the same as an oscilloscope?
No, and the difference matters. A logic analyzer records whether a pin is high or low and decodes the transitions into protocols, watching many channels at once over long windows. An oscilloscope measures actual voltage against time on one or two channels, showing edge shape, amplitude and ringing. For bus correctness use a logic analyzer; for signal integrity and analog behaviour use an oscilloscope.
Can I use my Raspberry Pi as a logic analyzer?
Yes. sigrok has a Raspberry Pi driver and PulseView can capture a few channels straight from the GPIO header. Connect a shared ground first, attach signal lines to spare GPIO pins with short leads, then install sigrok and PulseView, select the Pi as the device, name your channels and add a protocol decoder. Raise the sample rate and sample count before scanning. The Pi reads 3.3 V logic only, so never attach a 5 V line.
Can I use an Arduino as a logic analyzer?
You can, but only for slow signals. A sketch-based capture on Arduino samples in the kilohertz range, which suits a reset line, a button, or a low-speed UART, and is not enough for a 1 MHz I2C bus. It is useful for confirming that a signal changes and roughly when. For real protocol debugging with a decoder and a usable time window, a dedicated USB analyzer is far better value.
What are the limitations of logic analyzers?
They show only whether a pin is above or below a threshold, so they cannot measure voltage, rise time, ringing or overshoot. The cheap 8-channel units cap out at 24 MHz, which is too slow for a 10 MHz SPI clock, and they have no over-voltage protection. High headline rates often fall sharply once every channel is active, and probe loading through the input capacitance can itself alter the circuit you are watching.
What are the third-party hardware alternatives to Saleae Logic?
Several strong options exist. DreamSourceLab DSLogic Plus and the DSLogic U3 series give you 16 or 32 channels with on-board memory and adjustable thresholds. The innomaker and Kingst LA-series units provide 16 channels with bundled KingstVIS software. Digilent Digital Discovery adds 32 channels plus a pattern generator. At the budget end, the 8-channel 24 MHz clones enumerate as Saleae devices and run in the free PulseView software.
Bottom Line: Which Logic Analyzer Should You Buy?
For most people reading this, start with the HiLetgo 24 MHz 8-channel analyzer. It decodes SPI, I2C and UART, handles 5 V and 3.3 V logic, and runs in the free PulseView software, which makes it our pick as the best logic analyzer for hobby electronics overall. Add the LONELY BINARY kit if breadboard wiring frustrates you, and keep the Comidox as a cheap second unit for a second bench.
Move up to the innomaker LA1010 when eight channels stop being enough, and to the DSLogic Plus when you need on-board memory, adjustable thresholds and honest all-channel rates. Reach for the Saleae Logic 8 when a single pin needs both a digital and an analog view, and for the Logic Pro 8 when your buses genuinely run fast enough to need 500 MS/s.
Whatever you choose, connect ground first, set your threshold before you start, and raise the sample rate and sample count before each scan. Those three habits solve most of the confusing captures beginners report, and they cost nothing. As we keep working through these eight units during 2026, we will update this guide whenever the software notes or the recommendations change.
