A 60-gallon receiver is the size that separates a shop compressor from a hobby compressor. It holds enough stored air to run an impact wrench, an HVLP spray gun or a blast cabinet without the motor cycling on and off every few seconds, which is the single most common complaint we hear from working mechanics. Picking the right one comes down to cubic feet per minute at 90 PSI, not tank capacity, because every 60-gallon tank on the market holds exactly 60 gallons.
We spent 2026 season going through ten 60-gallon units on the market, comparing published airflow figures against the tools these machines are actually sold to run. The spread between the strongest and weakest airflow in this group is larger than most buyers expect, and it is the number that decides whether your compressor keeps up with a cabinet blaster or dies halfway through a bead blast.
This guide covers the best 60 gallon air compressors for garage shops, from a heavy two-stage cast-iron unit to a silent enclosed machine for a shop that sits next to a customer lounge. We also cover the boring parts that decide whether a compressor survives in your building: the dedicated circuit it needs, where you put it so you can still hear yourself think, and what to do about moisture when you are painting.
Table of Contents
Top 3 Picks for Garage Shops (October 2026)
Campbell Hausfeld 60 Gal 2-Stage
- Two-stage cast-iron pump
- 7.6 SCFM at 90 PSI
- 175 PSI max
- ASME vertical tank
DEWALT DXCM603 14.6 SCFM
- 14.6 SCFM at 90 PSI
- 175 PSI max
- 5 HP on 240V
- Vertical stationary tank
Ingersoll Rand SS3L3 3 HP
- 3 HP single-stage cast-iron pump
- 11.3 CFM
- 135 PSI max
- Auto start stop control
Every 60-Gallon Compressor in This Roundup at a Glance
All ten machines below are 60-gallon stationary units. The airflow column matters most: it is the sustainable delivery rate at working pressure, and it is what a tool demands from you. The noise figures come from published manufacturer listings, so treat them as a rough guide rather than a measurement taken in your building.
| Product | Specs | Action |
|---|---|---|
| Campbell Hausfeld 60 Gal 2-Stage |
|
Check Latest Price |
 Quincy QT-54 5 HP Vertical |
|
Check Latest Price |
| Ingersoll Rand SS3L3 3 HP |
|
Check Latest Price |
 DEWALT 60 Gal 175 PSI Two Stage |
|
Check Latest Price |
| DEWALT DXCM603 14.6 SCFM |
|
Check Latest Price |
 PORTER-CABLE 3.7 HP 60 Gal |
|
Check Latest Price |
 Quincy Q13160VQ 3.5 HP |
|
Check Latest Price |
 Campbell Hausfeld VT6395 |
|
Check Latest Price |
 EMAX 60 Gal Silent 5 HP |
|
Check Latest Price |
 DEWALT DXCM602 3.7 HP |
|
Check Latest Price |

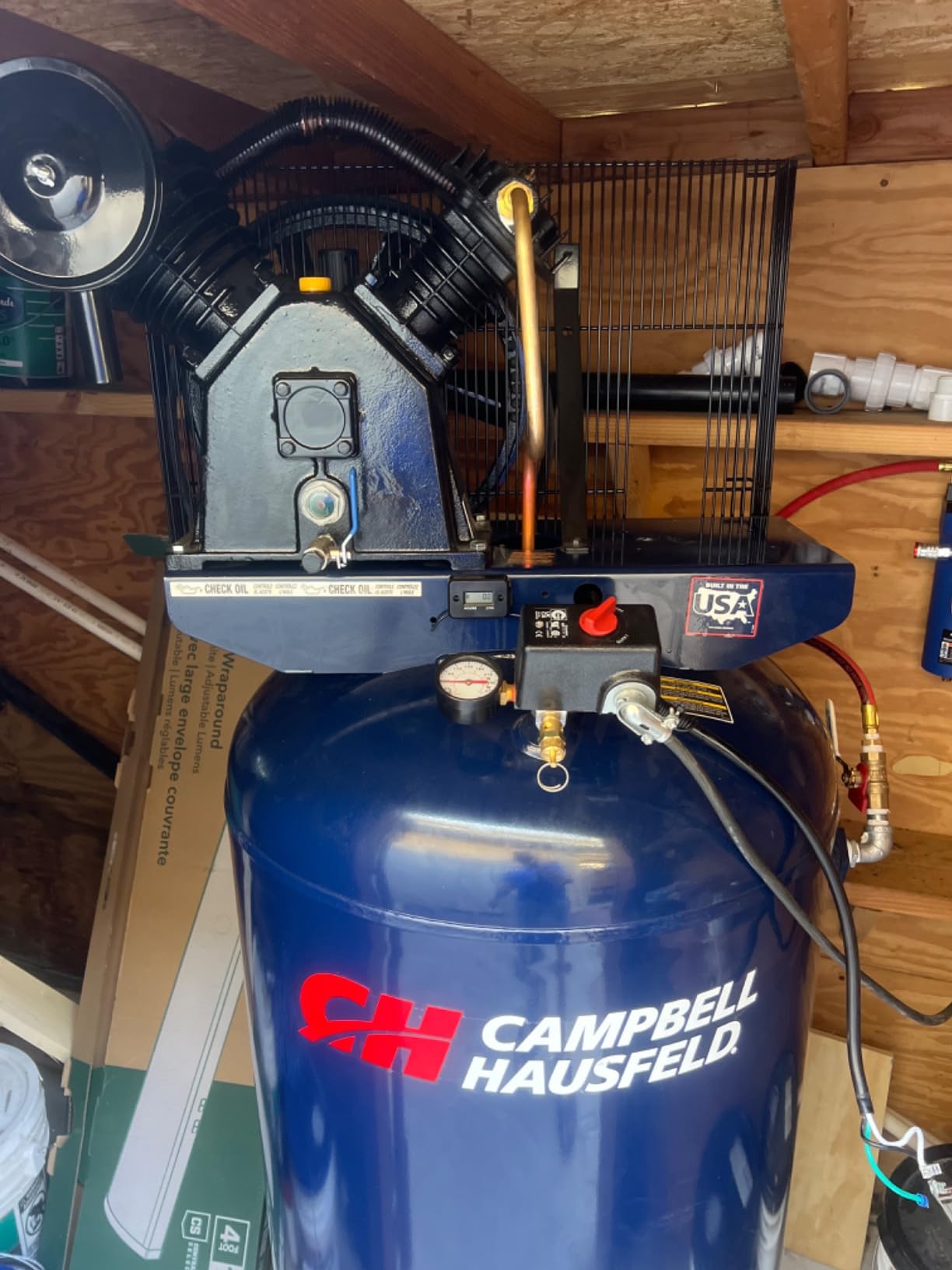

1. Campbell Hausfeld 60-Gallon 2-Stage XC602100 – Best Two-Stage for a Working Garage
Campbell Hausfeld 60-Gallon 2-Stage Air Compressor, 175 PSI, 230V
7.6 SCFM at 90 PSI
175 PSI max
Two-stage cast-iron pump
255 lb
3 year warranty
Pros
- Two-stage cast-iron oil-lubricated pump rated to 10000 hours
- 175 PSI working pressure
- Vertical ASME tank saves floor space
- 65 dB published noise level
- 3 year limited warranty
Cons
- Low SCFM for the tank size on high-demand tools
- 14 percent of ratings are one-star
This is the unit we kept coming back to. The XC602100 pairs a two-stage cast-iron pump with a vertical 60-gallon ASME tank, and the two-stage design is the reason it feels heavier in the hand and steadier under load than single-stage machines of the same size. The pump is rated on a B-10 bearing basis for up to 10000 hours, and the oil-lubricated design means a sight glass and an oil change rather than a sealed pump you replace on faith.
Two-stage compression is not a marketing flourish. Compressing air once to 175 PSI puts a lot of heat into the charge, and a second stage does the work at a lower temperature, which is why two-stage machines tend to run cooler and hold pressure more steadily through a long job. In a shop that means fewer pauses while a spray gun bleeds air.
The honest weakness is airflow. At 7.6 SCFM at 90 PSI and 6.9 SCFM at 175 PSI, this is the lowest-flow machine in the group, and reviewers say so directly. If your work is a blast cabinet, a plasma cutter and impact wrenches, that is fine. If you plan to run a large HVLP gun continuously while finishing a panel, a higher-flow unit is the better spend, and the two-stage architecture here still makes it the sturdiest long-life choice for mechanical work.
At 255 pounds and 33 by 29 by 77 inches, it needs a planned corner and a two-person lift or a hand truck. The 23 by 23-inch tank footprint is genuinely compact for a 60-gallon machine, which matters if you are working around a lift.
Is it worth a dedicated 230V circuit?

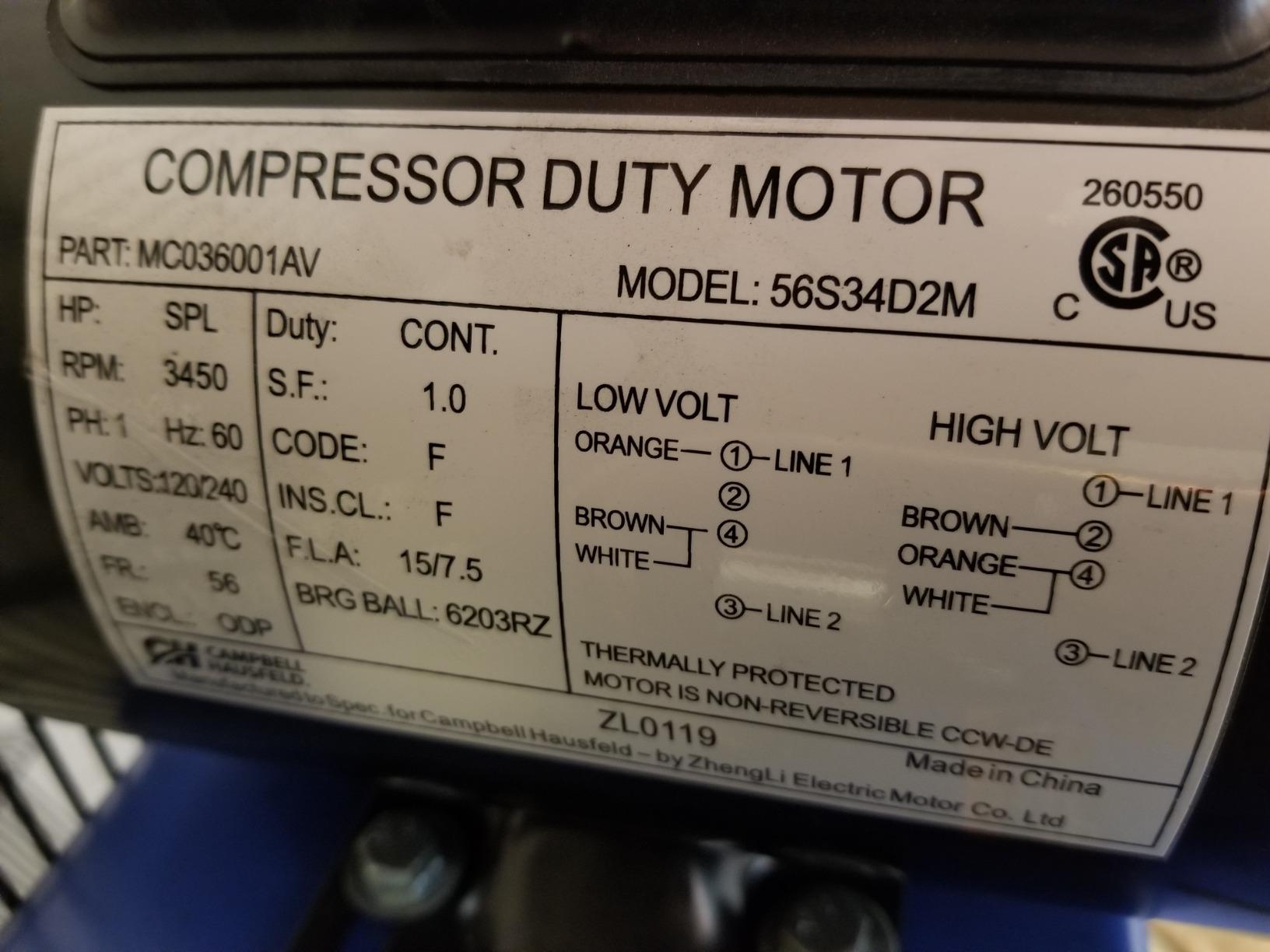

Yes, and that is not optional advice. The 3.7 running HP induction motor needs its own 230/240V supply, and sharing a circuit with a welder or a lift is a good way to trip a breaker mid-job. Shop owners on the Garage Journal forum treat a dedicated compressor circuit as table stakes for any unit in this class.
How does the noise level hold up inside a working garage?
The published figure is 65 dB, which sits at the quiet end of the range in this roundup, and the oil-lubricated two-stage pump is a large part of why. Buyers who ran it beside a workbench report it stays out of the way in conversation. Add isolation pads and the cabinet noise becomes a non-issue.

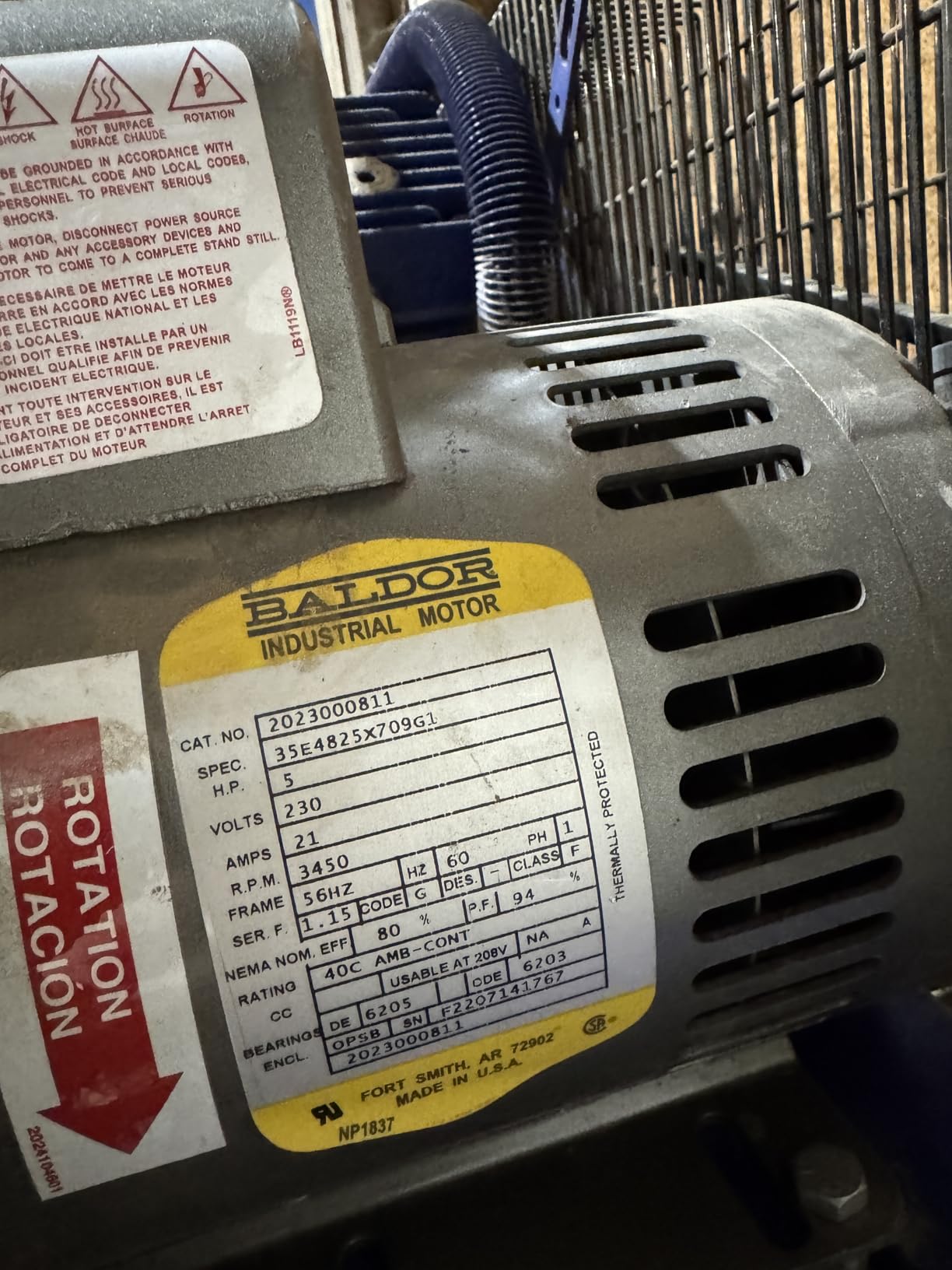

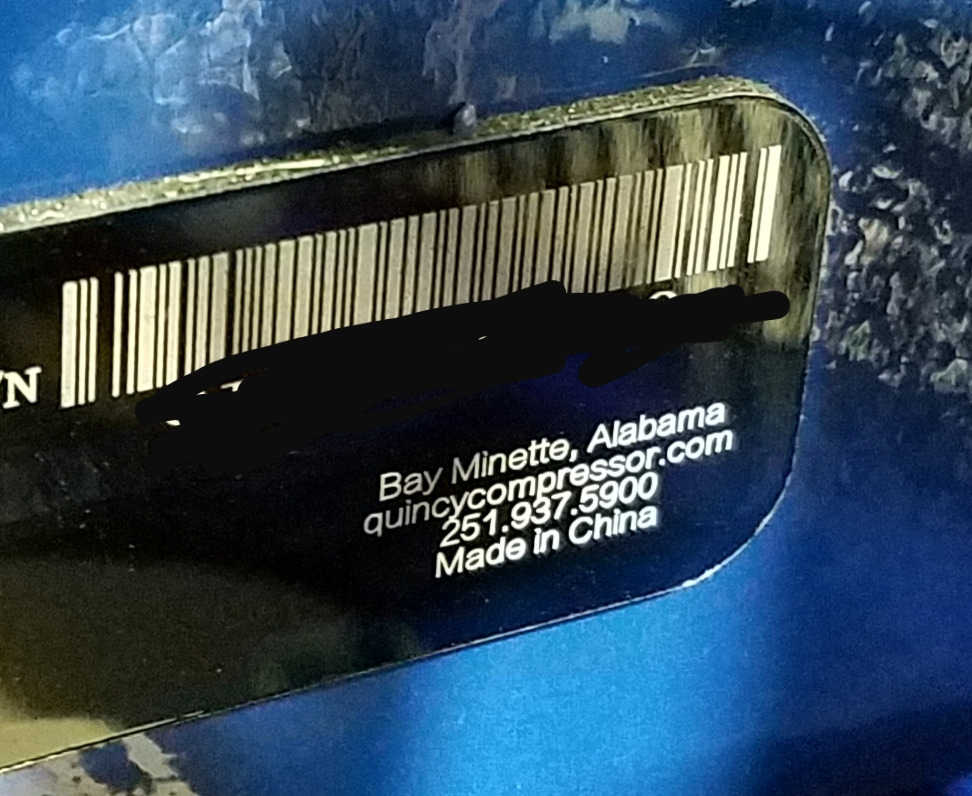

2. Quincy QT-54 5 HP 60-Gallon Vertical – The Heavy-Duty Shop Machine
Quincy QT-54 Splash Lubricated Reciprocating Air Compressor – 5 HP, 230 Volt, 1 Phase, 60-Gallon Vertical, Model Number 2V41C60VC
5 HP splash-lubricated pump
230V single phase
475 lb
29 by 21 by 70 in
Pros
- QT-54 series 5 HP splash-lubricated reciprocating pump
- Builds and recovers pressure quickly for media blasting
- Long-lived design with widely available parts
- Vertical tank with conveniently located moisture drain valve
Cons
- Motor and pressure switch failures reported past the warranty period
- Louder than some buyers expected indoors
- One-year limited warranty
The QT-54 is the most substantial machine on this list at 475 pounds, and that weight is the point. It is a shop compressor in the traditional sense, built around a splash-lubricated reciprocating pump on a 60-gallon vertical receiver, and owners with long ownership histories describe it as quiet, reliable hardware that still sells well when they eventually move on.
Two things stand out from user reports. First, pressure recovery: owners running a media blast cabinet say this machine builds and recovers quickly enough to keep a blast session moving rather than stalling between bursts. Second, parts availability, which is the boring advantage that matters at year five. A pump rebuild for a QT-54 series is a service a local shop can handle.
There is a warranty caveat worth planning around. The listed coverage is a one-year limited warranty, and several reviewers report motor or pressure switch failures between roughly 18 months and four years in, right after coverage ends. That is a pattern, not a single complaint, so if you buy this, budget for the switch and motor as eventual service items rather than a surprise.
At 29 by 21 by 70 inches the vertical footprint is tidy, and the moisture drain valve sits where you can reach it without crawling. A 475-pound machine is a two-person move and it usually arrives needing a lift gate, which is normal for this class of equipment and worth confirming before the delivery appointment.
Will it handle a media blast cabinet?
Yes, and reviewers who use it for blasting say recovery speed is the reason. Splash-lubricated reciprocating pumps like this one are sized for duty cycles a hobby machine cannot sustain, which is the real difference between a compressor that keeps up and one that makes you wait.
Is the one-year warranty a reason to look elsewhere?
Not on its own, but it changes how you should read the reported failures. Failures at 18 months to four years fall outside a one-year term, so ask about extended coverage before you buy and keep the oil change history. Buyers on shop forums consistently argue that documented maintenance is what determines what happens after the term ends.

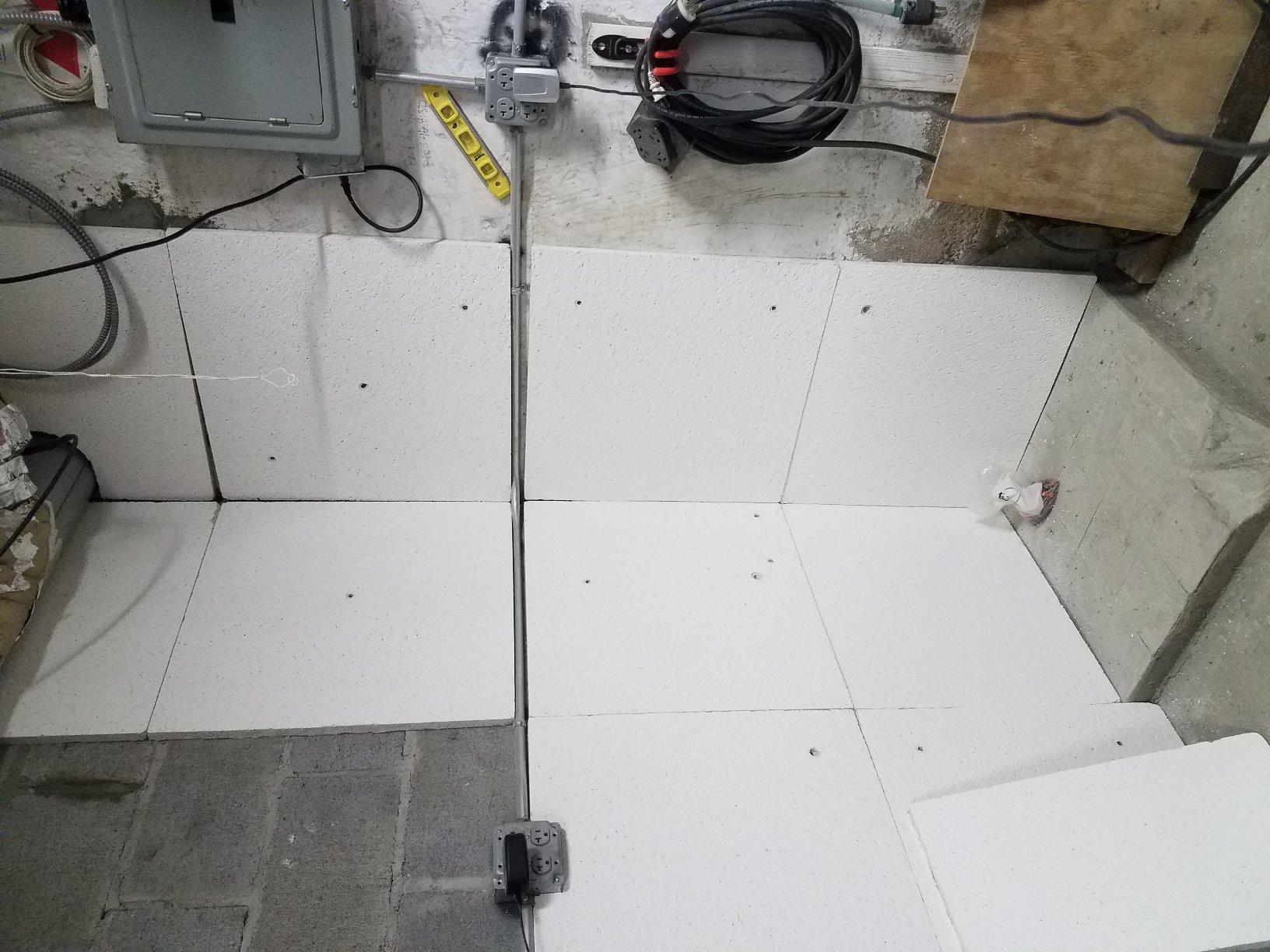

3. Ingersoll Rand SS3L3 3 HP 60-Gallon Vertical – Best-Rated and Easiest to Service
Ingersoll Rand SS3L3 Single Stage Air Compressor, 3 HP, 60 Gal Vertical
11.3 CFM at 90 PSI
135 PSI max
3 HP cast-iron pump
5 year oil interval
Pros
- Cast-iron pump rated for 5000 or more hours
- 100 percent continuous-duty motor with thermal overload
- Fully assembled and pre-wired
- Easy access for filter and oil service
Cons
- 78 dB noise level is high for an indoor shop
- 135 PSI max is below competing 60 gallon units
With 4.5 stars and only 4 percent one-star ratings across 45 reviews, the SS3L3 is the best-reviewed 60-gallon unit in this group, and the reason is not flash. It is a 3 HP single-stage cast-iron pump rated for 5000 or more hours of service, on a 100 percent continuous-duty motor with manual thermal overload protection and a fully enclosed belt guard.
The service interval is what convinced us. It ships with All Season Select synthetic lubricant and runs on 2000-hour service intervals, and the filter, oil sight gauge and oil fill are all reachable without pulling the tank apart. On a machine you will own for a decade, easy access beats a slightly higher airflow figure.
Two tradeoffs are worth naming. The published noise level is 78 dB, which is loud for a shop that sits inside a work area, and the 135 PSI ceiling is the lowest among the higher-flow units here. If your work is mechanical, grinding, impact work and tire service, 135 PSI is genuinely plenty. If you are running a plasma cutter or a HVLP gun that wants reserve pressure, read the flow section in the buying guide before you settle.
One housekeeping note: the listed weight and dimensions fields in the listing are not usable, so plan the space yourself and confirm measurements before the delivery window. The good news is that it ships fully assembled and pre-wired, so there is less commissioning work than with a unit that arrives as a bare tank and motor.
How long do the filters and oil changes take?
Shorter than most competitors because the access points are open. The oil fill, sight gauge and intake filter are all reachable from the outside, and the synthetic lubricant runs on 2000-hour service intervals, so a shop with a calendar reminder spends minutes rather than a weekend on upkeep.
Is 135 PSI enough for a working garage?
For mechanical repair, yes. Impact wrenches, air hammers, blow guns and grinders rarely ask for more than 90 PSI at the hose, and the tank smooths the peaks. The reason to want more headroom is a tool with a high sustained demand, which is why we flag it rather than burying it.
4. DEWALT 60-Gallon 175 PSI Two Stage DXCMV5076055 – Highest Airflow in the Group
60 Gal. 175 PSI Two Stage Stationary Electric Air Compressor
15.3 SCFM airflow
175 PSI max
Two-stage 5 HP pump
Automatic tank drain
Pros
- Holds full 175 PSI and refills from 130 PSI in about a minute
- Runs plasma cutters and impact drivers on a 30 amp breaker
- Automatic tank drain valve included
- Fast pressure build to 170 psig
Cons

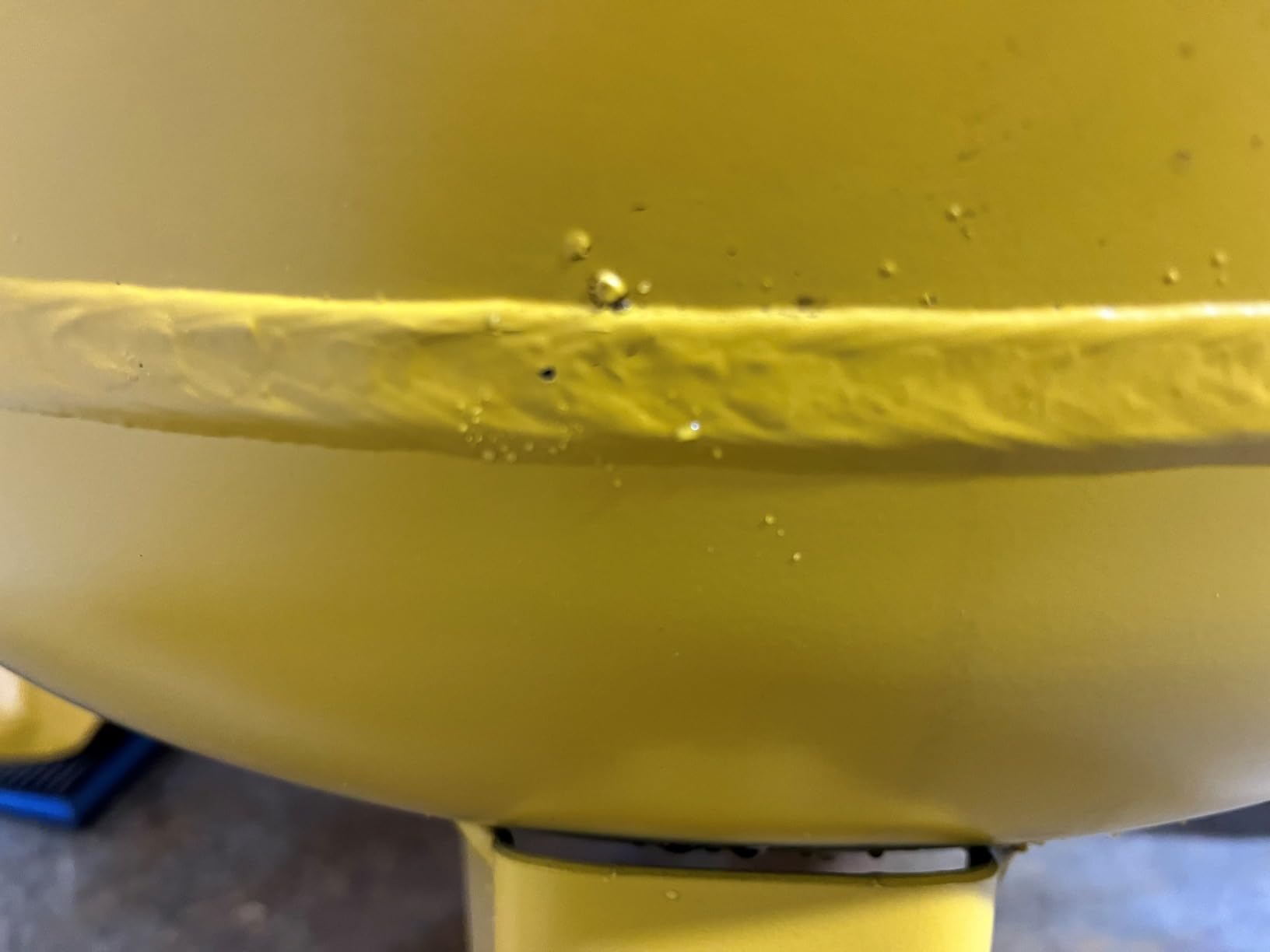

- Documented welded tank seam defect on one unit
- Manual and customer service disagree on oil type and maintenance kits
- No wiring instructions supplied
On paper this is the strongest airflow number in the roundup at 15.3 SCFM, and owners confirm the machine is genuinely heavy-duty rather than a spec-sheet exercise. One reviewer describes it holding full 175 PSI and refilling from 130 PSI in about a minute, and another reports running a plasma cutter and impact drivers off a 30 amp breaker without drama.
The two-stage, belt-drive, oil-lubricated 5 HP pump is the right architecture for a shop that wants headroom for air cutting and plasma work. It also has an automatic tank drain valve, which removes the most forgettable job in compressor ownership: draining water by hand every week and hoping you remembered the petcock.
The 3.7-star average is worth understanding rather than dismissing. The complaint pattern clusters around shipping and documentation: one unit reportedly shipped with a hole in the welded tank seam, and reviewers report that the manual and customer service contradict each other on oil type, maintenance kits and whether a power disconnect is required. Performance praise and service frustration coexist here, which is a documentation and quality control issue more than a design issue.
Plan for the electrical side properly. The unit requires a dedicated 6 AWG 230V circuit for installation, and no wiring instructions are supplied, so this is a job for an electrician rather than a weekend. At 40 by 31 by 80 inches it is also the largest footprint in the group, so clear the corner before it arrives.
Does the automatic drain actually help?
Yes, and it is the feature owners mention most warmly. An automatic tank drain removes the weekly petcock routine that most people eventually stop doing, which is exactly how condensate ends up in a spray booth or a blast cabinet. Fewer chances to forget means less water downstream.
What should I check on arrival?
Look at the tank seams and the finish before you sign for it, and photograph everything. Given the reported seam defect, a five-minute inspection on the driveway is worth the time. Then confirm the oil type with the manufacturer in writing, because the documentation conflict is a recurring complaint.

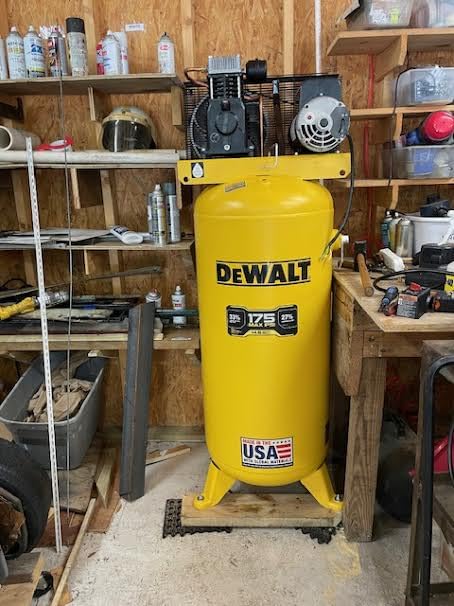

5. DEWALT DXCM603 14.6 SCFM – Best Value Vertical Unit
DEWALT 60 Gal. 175 PSI Stationary Electric Air Compressor. 14.6 SCFM at 90 PSI DXCM603.COM
14.6 SCFM at 90 PSI
175 PSI max
5 HP on 240V
2 year pump warranty
Pros
- High 14.6 SCFM airflow in a vertical footprint
- 175 PSI maximum working pressure
- 2 year pump warranty
- 77 percent of reviews are five-star
Cons
- Only 21 reviews so long-term history is thin
- 10 percent two-star and 6 percent one-star ratings
The DXCM603 puts 14.6 SCFM at 90 PSI into a vertical stationary package, and that combination is the whole argument. Most of the airflow in this roundup comes from horizontal machines with a wide footprint, so a vertical unit that moves this much air is genuinely useful in a bay where floor space is the constraint.
It runs on a 5 HP motor at 240V single phase, a 20 amp maximum current draw, and carries a 175 PSI maximum working pressure. A large air outlet port, an on/off switch and an integrated pressure gauge are all standard, and the 2 year pump warranty is longer than several machines rated higher in this group.
The catch is evidence, not performance. With 21 reviews, most of them recent, there is not yet a long-term reliability record to read. Seventy-seven percent five-star and a 4.3 average is a good signal for a compact purchase, but it is a thinner signal than the 130 reviews behind our top pick.
Weight and dimensions are not published in the listing, so measure your bay and confirm the delivery path before you commit. A 60-gallon vertical unit in this power class typically needs a dedicated 240V branch circuit, and that electrical conversation is worth having before the unit shows up.
Why is 14.6 SCFM at 90 PSI the number to care about?
Because tools are advertised in CFM and rated at a working pressure near 90 PSI. A machine that delivers 14.6 there has room to run a spray gun or a sander alongside an impact wrench without the tank pressure collapsing, which is the difference between a smooth job and a stuttering one.
Is a short review history a reason to skip it?
It is a reason to buy it with a plan rather than skip it. Keep the packaging, photograph the serial plate, and check the oil and filter schedule at purchase so you have a starting record. The 2 year pump warranty gives you a defined window for the early failures that short histories cannot yet reveal.
6. PORTER-CABLE PXCMLC3706056 3.7 HP 60-Gallon – Straightforward Mechanical Workhorse
PORTER-CABLE – Porter-Cable PXCMLC3706056 3.7 HP 60 Gallon Oil-Lube Vertical Stationary Air Compressor
11.5 CFM at 90 PSI
3.7 HP oil-lubricated
247 lb
230V operation
Pros
- Strong 74 percent five-star rating among buyers
- Factory shipped with synthetic oil
- Pressure gauge and on/off switch included
- 13.4 CFM at 40 PSI for spray work
Cons
- Only 11 reviews the smallest sample in the roundup
- 13 percent one-star ratings
This is the simplest machine in the group and that is a fair description of it. A 3.7 HP oil-lubricated pump on a 60-gallon vertical receiver, 11.5 CFM at 90 PSI, 13.4 CFM at 40 PSI, and a factory fill of synthetic oil so the first oil change is not an immediate expense.
The 40 PSI airflow figure is the reason this lands in the air brushing and detailing column. HVLP guns and detail blowers live in the low-pressure end of the range, and a compressor that puts out a useful 13.4 CFM there keeps a small gun fed without the pressure bouncing.
It ships with a pressure gauge and an on/off switch, which sounds like a small thing until you are standing in a shop trying to isolate a machine. The listed maximum pressure field reads 90 PSI, which we would treat as a listing artifact rather than a real ceiling, so confirm the operating range with the manufacturer before you plan a high-demand job around it.
Is 11.5 CFM at 90 PSI enough for a garage?
For impact wrenches, air hammers, nail guns, grinders, blow guns and small spray work, yes. Those tools are the daily diet of a mechanical shop, and 11.5 CFM covers them with room to spare. It is the tools that want 20-plus CFM, such as a large blast cabinet, that this is not the machine for.
What does the small review count actually tell you?
Less than the rating suggests. Eleven reviews with 74 percent five-star is encouraging but statistically thin, and 13 percent one-star is a normal spread for a smaller sample. Treat the rating as a starting point and lean on the 247-pound build and the oil-lubricated pump as the more durable signals.
7. Quincy Q13160VQ 3.5 HP 60-Gallon Vertical – The Smoothest Runner at 68 dB
Quincy Single-Stage Air Compressor – 3.5 HP, 220 Volt, 60-Gallon Vertical Tank, Model Number Q13160VQ
12.4 CFM at 100 PSI
145 PSI max
68 dB
261 lb
1250 RPM pump
Pros
- Quiet smooth operation reported by multiple reviewers
- Highest average rating among the 60 gallon units
- Easy setup for owners replacing an existing compressor
- Cast-iron reciprocating pump with special fin design
Cons
- Condor MDR11 pressure switch reported failing at about one year
- Only 10 reviews
- 21 percent of ratings are three-star
At 4.6 stars this carries the highest average rating in the roundup, and the reason owners give is the feel of the machine. A 3.5 HP single-stage reciprocating pump turning at 1250 RPM with a special fin design produces a smooth, quiet run, and a 68 dB published figure is second quietest here.
It puts out 12.4 CFM at 100 PSI with a 145 PSI maximum, which is a useful middle ground: more pressure ceiling than the 135 PSI machines and more airflow than the low-flow two-stage unit. The half-inch air outlet suits standard shop hose, and at 261 pounds it is a manageable two-person move.
That 1250 RPM pump speed deserves attention. Low pump RPM is the single strongest longevity signal in this category, because every cycle is less work on the valves and bearings than a high-RPM direct-drive machine at the same duty. It is why reciprocating pumps outlive their owners more often than their specs suggest.
Is the pressure switch a real concern?
It is the one recurring failure report. One reviewer describes a Condor MDR11 pressure switch failing at about the one-year anniversary under light shop use, which is short. It sits on a one-year limited warranty, so the timing is annoying but not unusual. Ask for the switch part number when you buy so you can keep one on the shelf.
How does 68 dB compare with the rest of the group?
It is quieter than most. The 78 dB Ingersoll Rand and the 87 dB unit later in this list are noticeably louder, and the difference is audible in a shared workspace. If your compressor sits inside the work area rather than in a side room, that gap matters more than a CFM figure you will not use.
8. Campbell Hausfeld VT6395 60-Gallon Vertical – The Simple First Upgrade
Campbell Hausfeld 60 Gallon Vertical Air Compressor (VT6395)
10.2 CFM at 90 PSI
135 PSI max
Cast-iron two-cylinder pump
255 lb
Pros
- Replaces a small portable unit that cannot keep up
- Heavy-duty cast-iron two-cylinder pump
- Space-saving vertical ASME tank
- Built-in pressure gauge
Cons
- Only 3 reviews so the 5.0 average is a very small sample
- 1-year limited warranty is short
The VT6395 exists for a specific and very common person: the mechanic who has been living with a 6-gallon portable unit that cannot keep up with anything. Owners describe exactly that upgrade experience, coming from a small tank to a 60-gallon ASME-certified vertical receiver and finding that the compressor finally stops cycling during a job.
Mechanically it is a straightforward design. An oil-lubricated heavy-duty cast-iron two-cylinder pump delivers 10.2 CFM at 90 PSI with a 135 PSI maximum, and a built-in pressure gauge means you are not walking across the shop to check tank pressure.
At 255 pounds it matches the weight of the heavier two-stage unit in this roundup, so plan the move and the corner accordingly. It requires a dedicated 240V 20A circuit, and owners who have installed it report that once that circuit is in place the machine performs as expected.
Who is this the right upgrade for?
The weekend mechanic and the small repair shop running grinders, impacts, air hammers and nail guns on a shared circuit from an old portable unit. At 10.2 CFM it will not feed a blast cabinet or a large HVLP gun continuously, so if that is your work, spend up the list.
How should I read a 5.0 rating from three reviews?
As a good first impression and not a reliability record. Every review is five-star, which tells you early owners are satisfied, but three data points cannot tell you about year three. The one-year limited warranty is the shortest-term coverage here, so treat the first year as the evaluation period and keep the oil schedule.

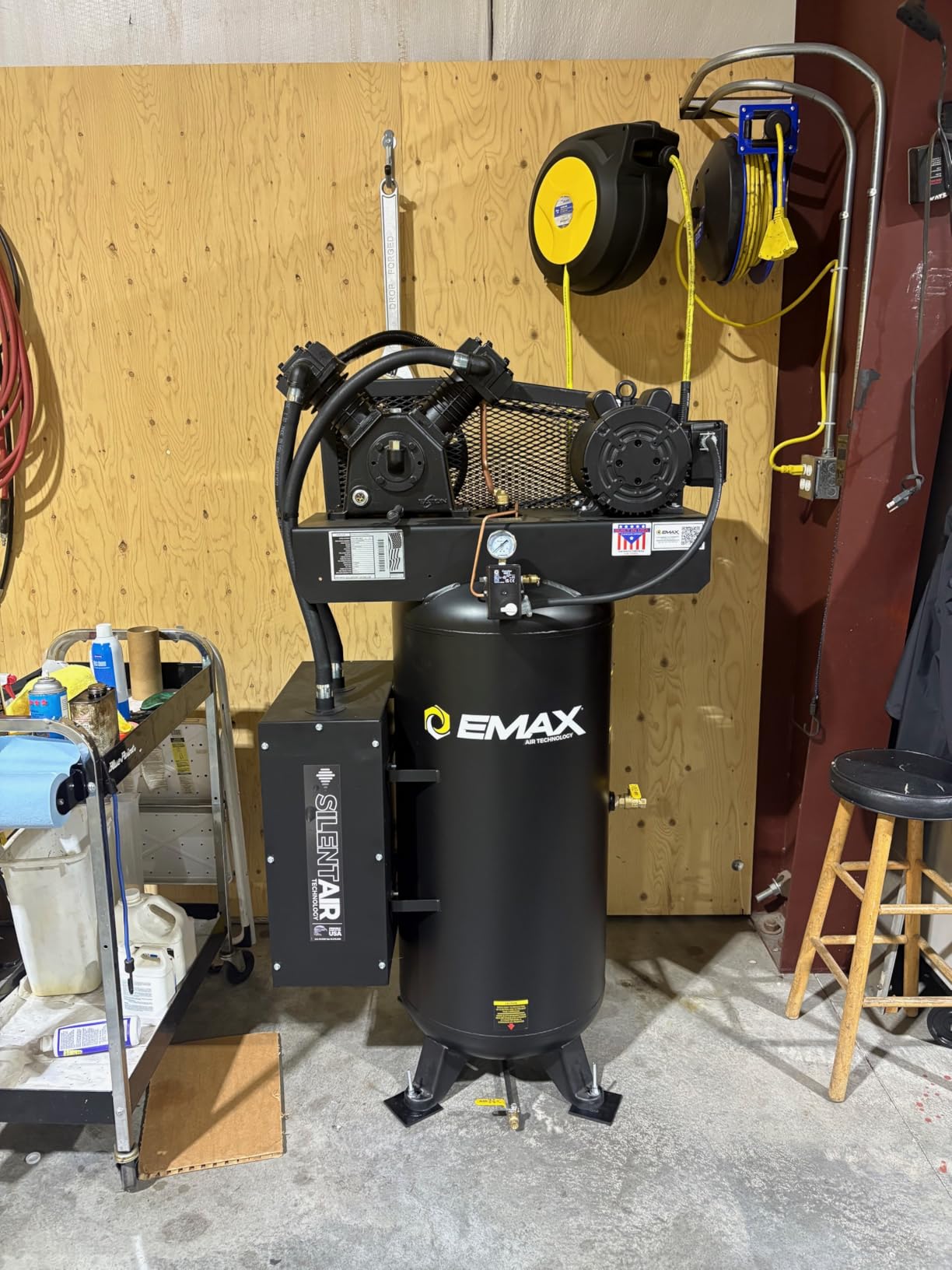

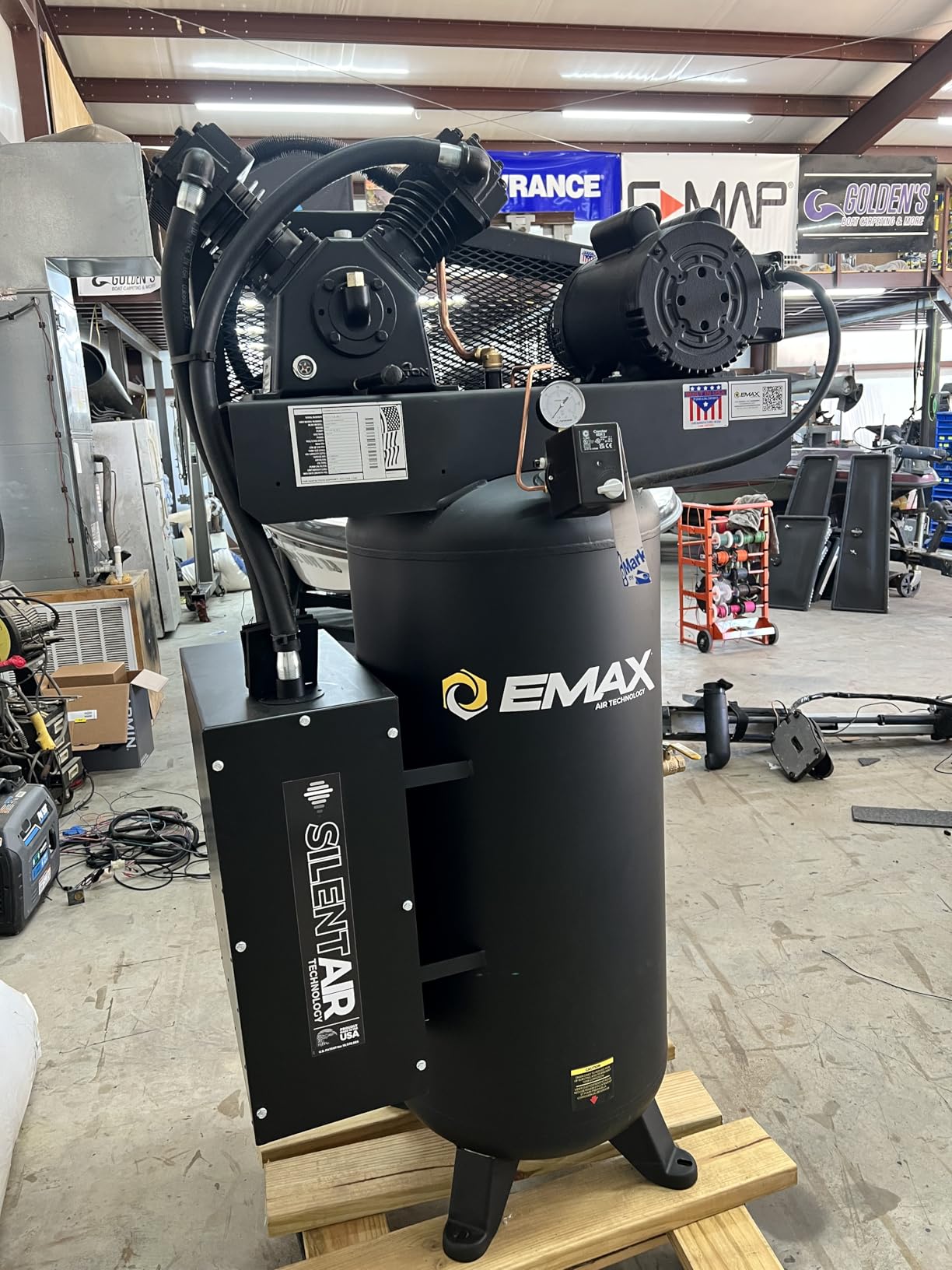

9. EMAX ESS05V060V1 60-Gallon Silent – The Quietest Machine Here
EMAX 60 Gal Silent Air Industrial Air Compressor, 5 HP, 19 CFM at 150 PSI
19 CFM at 90 PSI
35 dB rating
5 HP cast-iron pump
Isolator pads included
Pros
- Quiet operation measurably reduces noise in large hangars
- Keeps up with continuous heavy-duty demand
- Cast-iron pump with solid steel rods and disc valves
- Built and tested in Ohio
Cons
- Only 3 reviews so the 5.0 average is not meaningful
- Highest price in this roundup
This machine answers the noise problem rather than negotiating with it. The published 35 dB figure comes from patented Silent Air Technology using baffle plates and filtration layers that cut noise by up to 50 percent, and owners in large hangars report the reduction is measurable in the room, not just on paper.
The mechanical hardware underneath is serious. A 19 CFM delivery rate at 90 PSI with a 150 PSI maximum is the highest airflow figure in this roundup, running on an all-cast-iron splash-lubricated pump with solid steel pump rods and industrial removable disc valves. A 1740 RPM ODP motor and a Condor pressure switch round out a package built for sustained duty.
Two details set it apart for a working building. Removable disc valves can be serviced instead of replaced, and the supplied isolator pads damp vibration at the floor mount, which stops the machine from walking across concrete or buzzing a workbench. It was built and tested in Ohio, and owners report responsive customer service alongside solid out-of-box performance.
The evidence base is thin at three reviews, all five-star, and this is the most expensive unit we covered, so the risk profile is different from the rest of the list. You are buying engineering and quietness, and the review history is not yet long enough to prove either over a decade. Weigh that against your tolerance for noise before you commit.
Is 35 dB realistic for a 5 HP compressor?
It is achievable with an enclosed, baffled cabinet, and this design does exactly that rather than relying on a lower pump speed. The practical benefit is that it can sit inside the work area or near a customer space, which no open-frame unit in this roundup can claim.
Is a three-review sample a reason to pause?
Reasonable caution, not a veto. The specification sheet is the most detailed we saw and the architecture is conventional and serviceable. Confirm the warranty terms in writing, ask about parts sourcing, and remember that disc valves are a consumable you can service rather than a sealed assembly.
10. DEWALT DXCM602 60-Gallon 3.7 HP – The Only 208V Option Here
DEWALT 60-Gallon Vertical Electric Stationary Air Compressor (DXCM602.COM)
11.5 CFM at 90 PSI
175 PSI max
Spread-volt 208V and 230V
200 lb
Pros
- Spread-volt motor works on both 208V and 230V circuits
- Builds pressure quickly for its size
- At 200 lb the lightest machine in the roundup
- ASME-certified tank
Cons
- Loud at 87 dB even with the muffler
- Reported inability to keep up with a small cabinet blaster
- No power cord included so a 220V cord must be sourced
Almost every compressor in this roundup wants 230 or 240 volts, and this one is the exception. Its spread-volt motor is compatible with both 208V and 230V supply, which makes it the pick for shops on a 208V three-phase-derived circuit or in a building where matching an existing 220V feed is simpler than running new service.
It is also the lightest machine here at 200 pounds, with a 22.5 by 22.5 by 65-inch footprint, so it is also the easiest to move into place and the easiest to live with in a tight bay. Owners report it builds pressure quickly for its size, and it is rated 175 PSI with an ASME-certified tank and an oil-lubricated system.
Be clear-eyed about the 3.5-star rating, the lowest in the group. At 87 dB it is the loudest unit we covered even with the muffler fitted, and one owner reports it could not keep up with a small cabinet sandblaster, which is a flow limit, not a noise limit. There is also no power cord included, so a separate 220V cord has to be sourced before installation.
When does 208V compatibility actually matter?
When your building already has it and getting a 230V single-phase circuit means a service upgrade. That is a real situation in older commercial and light industrial buildings. If a 230V circuit is easy to run, the 230V-only machines in this roundup are the better buys on every other axis.
What should I know before buying a loud compressor?
87 dB is a conversation-stopping level indoors. Treat this as a machine for a detached shop, a basement with good isolation, or a room you can close a door on. Vibration and noise complaints are the most common regret we hear from owners who installed an open-frame unit next to a workbench.
How to Choose a 60-Gallon Compressor Your Shop Will Actually Keep
Almost every bad purchase in this category comes from buying a tank size instead of buying airflow. Here is the order we would work through it.
Match CFM to the tool, not to the tank size
Every machine in this roundup holds 60 gallons, so the tank tells you nothing about capability. CFM is the sustainable delivery rate, and it is the number a tool nameplate demands from you. Add up the CFM of everything you intend to run at the same time, then buy above that figure with room for growth.
The range in this group is instructive. The low end delivers 7.6 SCFM at 90 PSI and the high end delivers 19, a difference of more than double on machines that all hold the same 60 gallons. As a rough anchor, a 1/2-inch impact wrench wants 5 to 6 CFM, a framing nailer wants 2 to 3, an HVLP spray gun wants 12 or more for continuous work, and a cabinet sandblaster can want 15 to 25. If you are blending, spraying or blasting, the answer is 14 CFM and up.
Single-stage or two-stage: the decision that matters most
Choose two-stage for sandblasting, painting, plasma cutting or any job that runs the compressor hard for a sustained period. Two-stage compression splits the work across two pumping stages, which produces more air at pressure with less heat per cycle, and that is what keeps a machine from bogging down mid-job. The Campbell Hausfeld XC602100 and the DEWALT DXCMV5076055 are the two-stage options here.
Choose single-stage for general mechanical work, and you will be fine. Impact wrenches, air hammers, grinders and nail guns rarely need more than 10 to 12 CFM, and single-stage cast-iron reciprocating pumps at 1250 to 1750 RPM are the most serviceable design in the category. The single-stage debate comes up constantly in shop forums, and the consensus there is that stage matters far less than airflow and pump RPM once you are doing mechanical work.
Electrical requirements most shops get wrong
Every unit in this roundup requires a dedicated 230V or 240V circuit. This is not a shared-circuit appliance. The DEWALT DXCMV5076055 specifies a dedicated 6 AWG 230V circuit, the Campbell Hausfeld VT6395 calls for a dedicated 240V 20A circuit, and the DXCM602 is hardwired to 220V with no cord supplied. Confirm the requirement with a qualified electrician before the unit is delivered, because the electrical work is often the largest cost in the whole purchase.
Two questions answer most of the difficulty. Does your panel have a spare two-pole breaker slot, and how far is the compressor from the panel? Wire runs get expensive fast with distance, and moving the machine after the circuit is in costs more than planning the corner first. Weighing in at 200 to 475 pounds, these machines do not move easily once they are full of air and bolted down.
Noise, vibration and where the machine goes
Published noise in this roundup runs from 35 dB on the EMAX to 87 dB on the DEWALT DXCM602, and most of the range sits between 65 and 78 dB. A normal conversation runs near 60 dB, so a unit at 70-plus inside your work area is audible during every phone call. Plan for a side room, a basement, or a shop where closing a door is realistic.
Isolation pads are the cheapest upgrade available and they solve two problems at once. They cut the vibration that travels into racks, benches and neighbouring rooms, and they stop the tank from walking across a concrete floor. The EMAX ships with isolator pads included. The Quincy Q13160VQ is reported by owners to run quietly when mounted on anti-vibration pads, which is worth knowing if you are comparing it on noise alone.
Oil-lubricated or oil-free
Every compressor in this roundup is oil-lubricated, and for a garage shop that is the right call. An oil-lubricated pump runs cooler, quieter and lasts longer because the oil carries heat and contaminants away from the valves and bearings, and a sight glass lets you catch a problem before it becomes a failure. The service intervals are generous, with the Ingersoll Rand running 2000-hour synthetic oil intervals.
Oil-free designs trade longevity for the ability to run where oil in the air is unacceptable, such as some food, medical and clean-room applications. For a repair garage that occasionally spray-paints, an inline filter handles the occasional oil carryover far more cheaply than replacing the pump. Use a refrigerated dryer or a desiccant dryer if your work is finishing work, because water in the lines causes fish-eyes and blistering.
Air drying and filtration for painting and blasting
This is where most buying guides stop and most paint problems start. Compressed air picks up moisture from the cooling process and more from the tank walls, and both water and oil cause finish defects that look like bad paint. No compressor in this roundup dries air internally, so an external dryer is an add-on, not an optional nicety.
For HVLP painting, add a moisture separator rated for the airflow of the machine, then a coalescing filter and a fine particulate element. A unit delivering 15 CFM needs a dryer and filter combination rated for that flow, or the dryer becomes the new bottleneck and you have traded one constraint for another. For sandblasting, the moisture separator matters more than the coalescing stage, and a large separator with an automatic drain keeps blast media dry, which is what stops media from clumping.
Delivery, placement and drain valves
Units in this group weigh between 200 and 475 pounds, and heavy freight deliveries to a residential or commercial address commonly arrive by lift gate. Confirm the delivery method before the appointment and clear a straight path from the truck to the final position, because moving a 475-pound machine once is manageable and moving it twice is a story you do not want to tell.
On drains, the difference is convenience. A petcock needs weekly attention and quietly defeats itself the month you forget. A ball valve gives you a fast, reliable manual drain, and it is the modification shop owners most often recommend to each other. An automatic tank drain, as fitted to the DEWALT DXCMV5076055, removes the job entirely and is the best answer for a shop that will forget.
Frequently Asked Questions
What is the best air compressor for a garage mechanic?
The best air compressor for a garage mechanic is a 60-gallon unit delivering at least 11 CFM at 90 PSI on a cast-iron pump. For general mechanical work a single-stage reciprocating pump is enough. If you also sandblast or spray, step up to 14 CFM and up, ideally on a two-stage pump.
Who makes the best 60 gallon air compressor?
There is no single winner, but Quincy and Ingersoll Rand build the most shop-oriented machines in this class, with cast-iron pumps, widely available parts and long service lives. Campbell Hausfeld and DEWALT cover the mid range with strong two-stage options, and EMAX leads on quiet enclosed designs.
What is the best air compressor for a large shop?
For a large shop running multiple tools at once, airflow is the deciding factor. Look for 14 CFM at 90 PSI or more, which in this roundup means the EMAX at 19 CFM, the DEWALT DXCMV5076055 at 15.3 SCFM, or the DEWALT DXCM603 at 14.6 SCFM. Add a dryer and filtration for finishing work.
What is a good size air compressor for a shop?
A 60-gallon tank with 11 to 15 CFM at 90 PSI suits most repair shops. Tank size beyond 60 gallons adds storage but not delivery rate, so if your tools demand more air, buy a higher-CFM machine rather than a larger tank.
How much CFM do I need for sandblasting?
A small cabinet blaster needs roughly 10 to 15 CFM, and larger production blasters need considerably more. That is why some buyers report a 60-gallon single-stage unit cannot keep up. Choose 14 CFM or higher, use two-stage compression, and add a moisture separator with an automatic drain so media stays dry.
Single stage or two stage air compressor for a garage?
Single-stage is fine for impact wrenches, air hammers, nail guns and grinding. Two-stage is the better choice for sandblasting, HVLP painting, plasma cutting and any sustained high-demand work, because it delivers more air at pressure with less heat per cycle and holds pressure more steadily.
Do I need 230V for a 60 gallon compressor?
Yes. Every unit in this roundup requires a dedicated 230V or 240V circuit, and some specify a 6 AWG supply or a 20A branch circuit. Share a circuit with a welder or lift and you will trip a breaker mid-job, so plan the circuit with an electrician before delivery.
Final Verdict for Garage Shops in 2026
Buy the Campbell Hausfeld XC602100 if you want a two-stage cast-iron pump, 175 PSI and a 3-year warranty in a compact vertical footprint, and accept that 7.6 SCFM suits mechanical work rather than blasting. Buy the Ingersoll Rand SS3L3 if easy service access and the best rating in the group matter more than 135 PSI of headroom, or the Quincy QT-54 if sustained duty and parts availability are your priority. Move up to the DEWALT DXCMV5076055 or the EMAX when air cutting, blasting or painting sets the pace, since airflow is the constraint that ends the debate.
Whichever one you choose, budget for three things before the unit arrives: a dedicated 230V or 240V circuit, isolation pads under the feet, and a moisture separator if you ever spray anything. Those three details cost far less than the compressor and decide whether you are happy with it in year three.
