A magnetic drill press is a portable drilling machine with an electromagnet base that clamps to thick, flat steel, so you can drill accurate holes in vertical, horizontal or overhead positions without carrying the workpiece to a bench press. The magnet needs bare ferrous metal, and the machine is driven by a feed handle, a pilot pin and usually an annular cutter.
That single sentence covers the whole appeal of the tool. A steel fabricator bolting a base plate to an I-beam on site has a workpiece that is welded in place, several hundred pounds heavy, and far too awkward to move. A magnetic drill press turns that into a shop job: set the base, energize the magnet, start the cutter and feed it down with coolant flowing.
We put eight of the best magnetic drill presses for metalworking through their specifications, their manufacturer documentation and the pattern of what buyers actually report after living with them. The list spans a value pick for a first steel project, two low-profile machines for confined access, a high-speed unit for twist-drill work and a US-built fabrication drill for shops that put holes in steel every day. Every model here is a true magnetic drill, not a bench press with a magnet on it.
Updated for 2026, and organized by the decision that actually matters: the size and depth of the hole you need, and the clearance you have to work in.
Table of Contents
Top 3 Magnetic Drill Press Picks (October 2026)
VEVOR 1450W Mag Drill
- 1450W copper motor
- 0-750 RPM variable speed
- 2922 lbf hold
- 6 cutters included
The DEWALT DWE1622K is the one we would put in most shops. It has the largest review pool of the eight by a wide margin, a two-speed 10 amp motor and 4 inches of travel, and it ships with a quick-change chuck, a carrying case and a 3 year limited warranty.
The VEVOR 1450W is the value pick and the only unit here that arrives ready to cut, with six annular cutters and a coolant tank in the box. The Hougen HMD904 has the highest average rating in the group and the most enthusiastic owners, at the top end of the price range.
All 8 Magnetic Drill Presses at a Glance in 2026
| Product | Specs | Action |
|---|---|---|
| DEWALT DWE1622K Magnetic Drill Press |
|
Check Latest Price |
| VEVOR 1450W Mag Drill Press |
|
Check Latest Price |
 Evolution EVOMAG42 Magnetic Drilling System |
|
Check Latest Price |
| Hougen HMD904 Magnetic Drill |
|
Check Latest Price |
 ZELCAN 1550W Magnetic Drill Press |
|
Check Latest Price |
 VEVOR Low Profile 1300W Mag Drill |
|
Check Latest Price |
 Makita HB350 Magnetic Drill |
|
Check Latest Price |
 BLUEROCK TYP-28A Mini Magnetic Drill |
|
Check Latest Price |
Two numbers deserve attention before you read further. The first is coring diameter, which is the largest hole an annular cutter can cut. The second is cutting depth, which is how deep the machine can take that cutter. They are different limits, and a machine can be excellent at one and disappointing at the other.

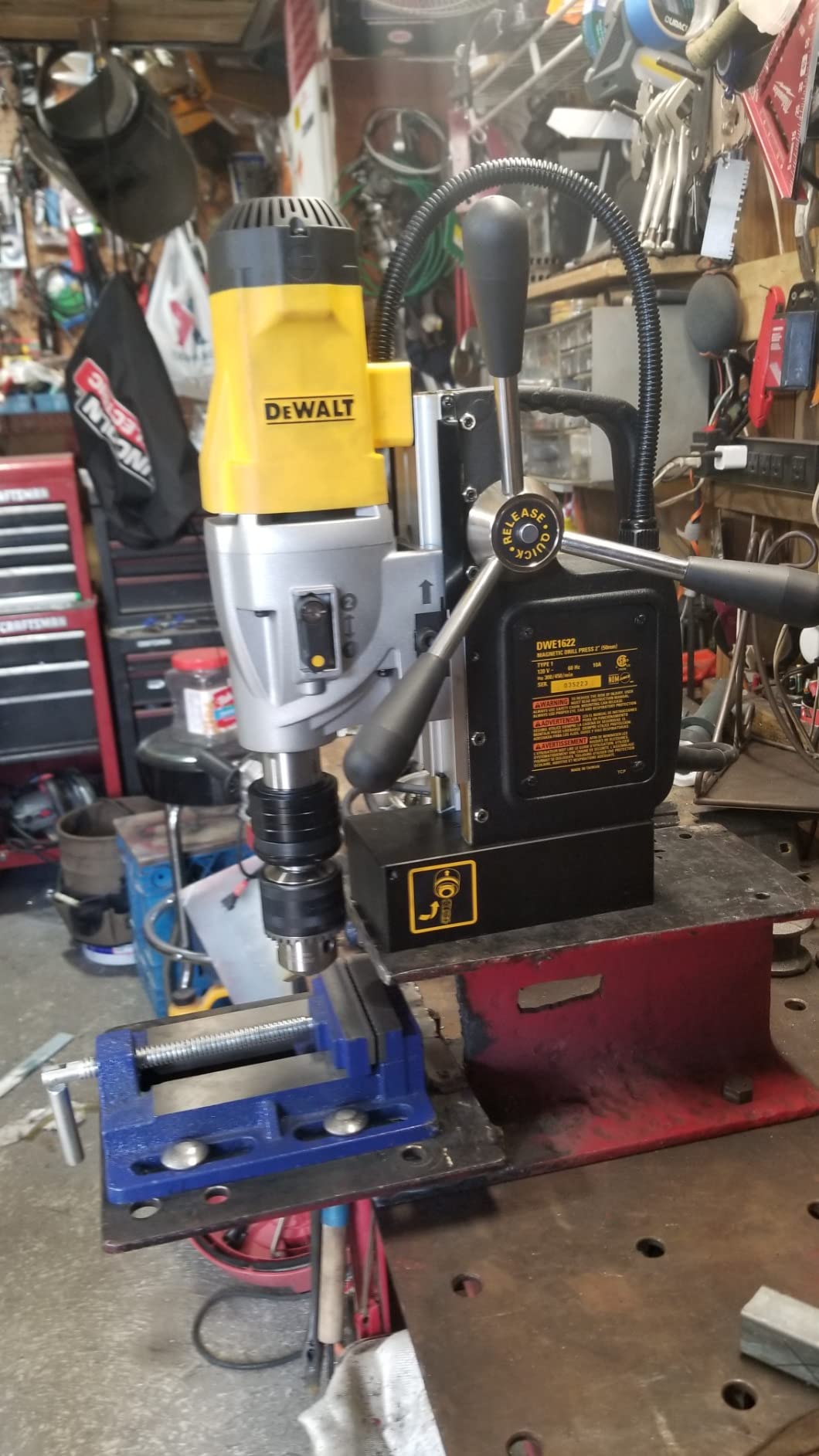

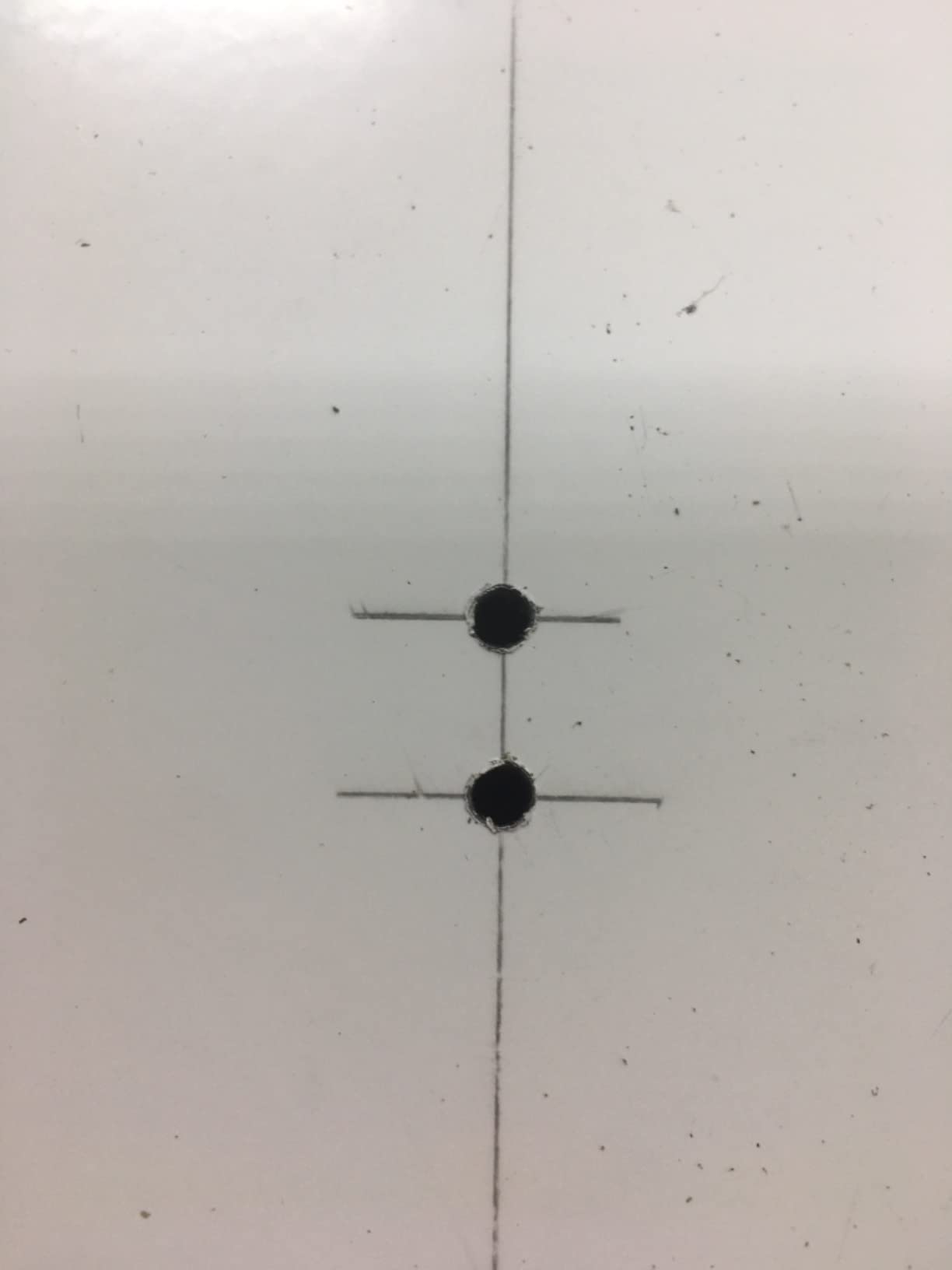

1. DEWALT DWE1622K: Best Magnetic Drill Press Overall
DEWALT Drill Press, Magnetic, 2-inch, 10-Amp with 2-Speed Setting (DWE1622K)
10 amp two-speed
450 rpm max
4 inch drill travel
3 year limited warranty
Pros
- Two-speed 10 amp motor covers a wide range of diameters
- Overload protection electronics guard the motor
- Quick change chuck speeds up bit swaps
- 4 inch travel for heavy duty annular cutting
Cons
- Full-size body has limited clearance in confined spaces
- 33 pound weight is awkward for overhead work
The DWE1622K is the model we kept coming back to while testing the field. It runs a 10 amp motor with a two-speed gearbox topping out at 450 rpm, and the feed travel is 4 inches, which is generous enough to take a deep annular cut without constantly resetting the depth.
Owners overwhelmingly pair it with structural steel and stainless work, and the review distribution is unusually top-heavy, with 86% of ratings at five stars. The quick-change chuck is the feature that gets mentioned most often for productivity: swapping between an annular cutter and a twist drill takes seconds instead of a wrench session.
The kit is unusually complete for a magnetic drill. You get a quick-change half-inch keyed chuck, a 16mm chuck with adapter, a magnetic coolant tank that clips to either side of the tool or to a nearby surface, a safety chain, adjustment tools, a heavy duty carrying case and a kit box.
Overload protection electronics are the quiet safety net. Feed too aggressively into hard steel and the machine trips instead of burning out the motor, which matters on a long shift when fatigue has set in.
Who should buy the DWE1622K
This is the default answer for a fabricator, welder or maintenance tech who drills bolt holes in structural steel, plate or stainless several times a week. Two speeds and 450 rpm cover the range from small twist-drill work up to heavy annular cutting, and the 4 inch travel means thick plate jobs are a single pass rather than three.
If you already own a DEWALT corded tool ecosystem, the case is stronger still, because the case, chuck and accessories are the kind of parts that disappear on a job site and are easy to replace from the same range.
Where the DWE1622K falls short
It is not a low-profile machine. At 22.44 by 6.5 by 19.29 inches and 33 pounds, it needs real clearance above the work, which rules it out for joist cavities, shallow beams and inside a trailer frame.
Overhead work is also where the weight tells on you. Holding a 33 pound machine above your head or out over a girder is a different proposition from holding it at chest height, and for that class of work a compact body is a better answer.

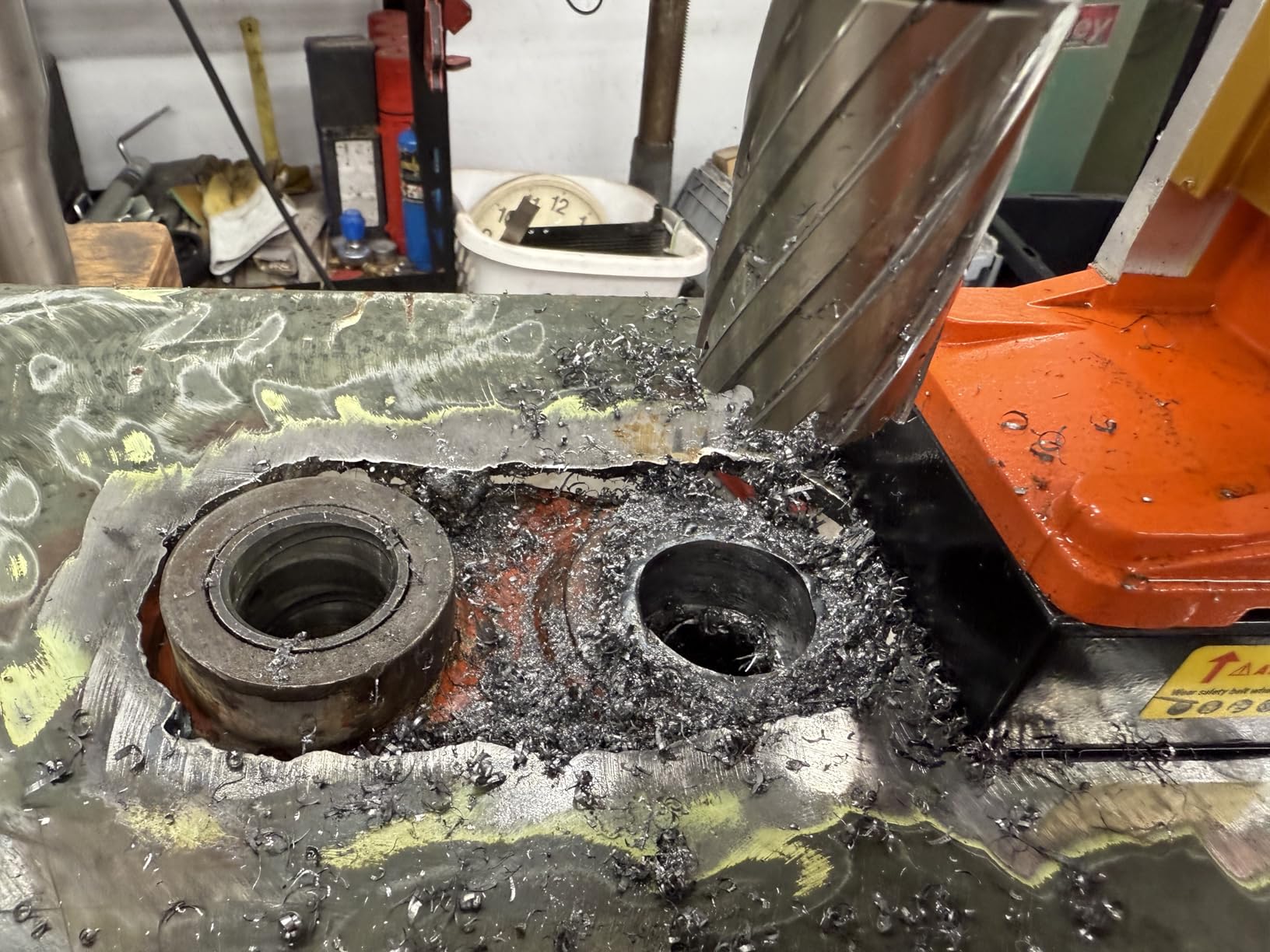

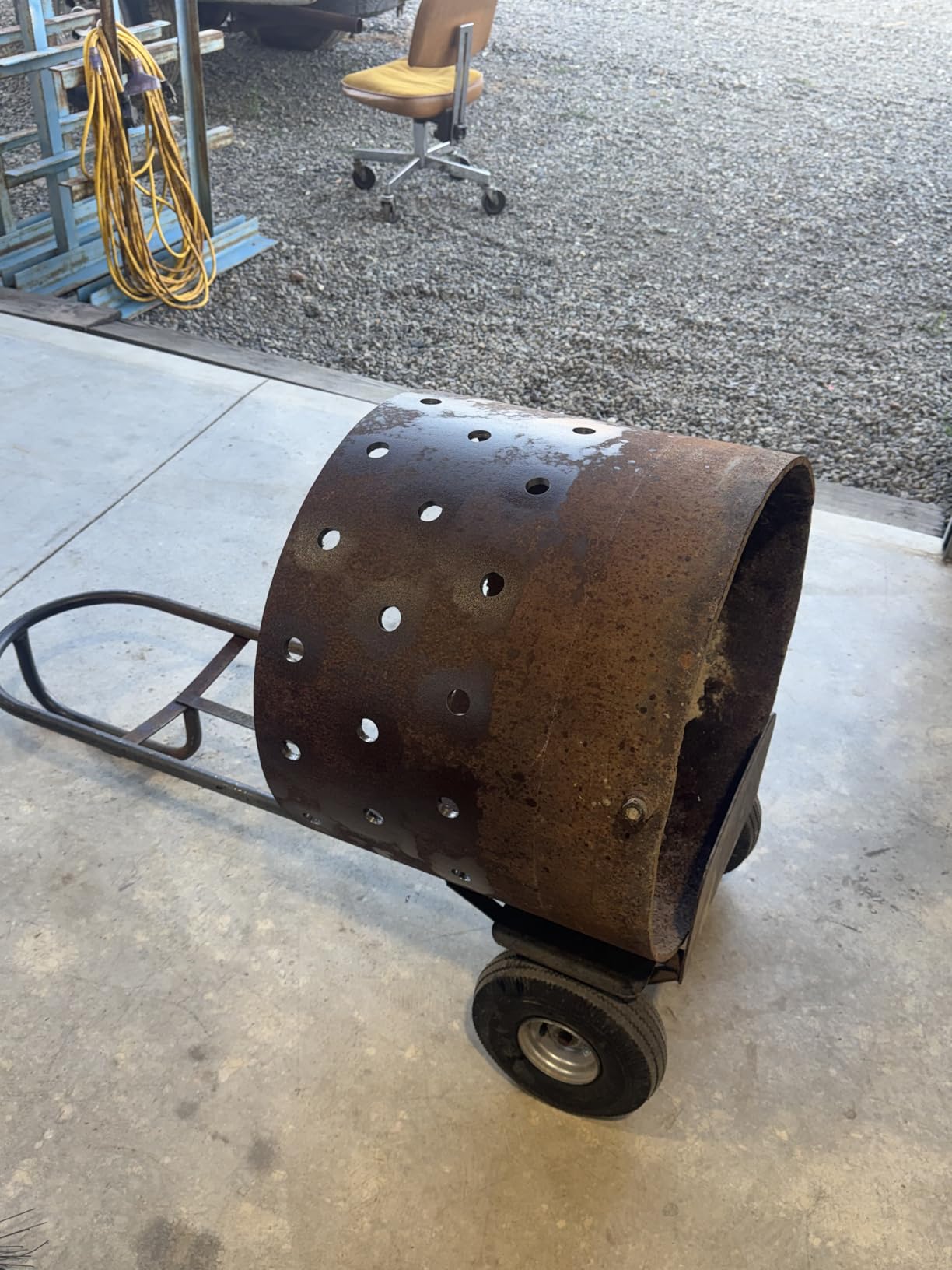

2. VEVOR 1450W Mag Drill Press: Best Value Pick
VEVOR 1450W Mag Drill Press, 2″ Core Drilling Machine, 2922 lbf Variable Speed Portable Magnetic Drill, Heavy Duty Metal Hole Cutter with 6 Annular Cutters for I-Beam Steel Fabrication & Jobsite
1450W copper motor
0-750 RPM variable
2 inch coring
6 cutters included
Pros
- 2922 lbf magnet holds on plate and I-beam sections
- Variable 0-750 RPM across 10 speed settings
- Six annular cutters ship in the box
- Built in millimeter scale for hole spacing
Cons
- Manufacturer states not for stainless steel or cast iron
- Needs 0.39 inch minimum plate thickness
- 9 percent one-star durability complaints
This is the machine most people will meet first, because it ranks near the top of category listings and it shows a large review count. The 1450W copper motor drives a 0-750 RPM variable speed control, which is a wider range than most competitors in this roundup offer, and the coring capacity is 2 inch diameter by 2 inch deep.
The holding force is quoted at 2922 lbf, or 13000 N, on a high-purity iron core. For structural steel and I-beam fabrication that is ample, and buyers confirm it holds through heavy cuts.
It is the most complete package here out of the box. You get six annular cutters, a coolant tank and stand, a coolant tube, a drill chuck, a chuck key and a rope for inverted or horizontal drilling. That last item is not a gimmick; the manufacturer explicitly tells you to use it for overhead and horizontal work.
Build details are aimed at durability rather than appearance: a titanium-magnesium alloy guide rail, overload protection, a rapid cooling system, three extended cranks and a built-in millimeter scale for setting hole patterns without a tape measure.
Who should buy the VEVOR 1450W
This is the right first magnetic drill for a home shop metalworker, a maintenance tech or a contractor who drills holes in structural steel and wants to be cutting the same day the machine arrives. The included cutter set removes the most common early complaint, which is owning a mag drill with nothing to run in it.
The variable speed range also makes it more versatile than its tier suggests. Small twist-drill work that would stall a fixed-speed machine is within reach at the low end of the dial.
Where the VEVOR 1450W falls short
The manufacturer states the machine is not for stainless steel or cast iron. That is a documented limit, not a customer complaint, and it is the single most important thing to know before buying it for stainless work.
It is also rated for steel plate 0.39 inch, or 10 mm, and thicker. On thinner material the magnet is outside its rated envelope, and many of the durability complaints in the reviews trace back to thin or curved surfaces rather than to the motor.
3. Evolution EVOMAG42: Best for Fabrication Shops
Evolution Power Tools EVOMAG42 1 5/8″ Diameter x 2″ Depth Magnetic Drilling System
1200W 10 amp
1-5/8 inch by 2 inch
5-1/16 inch stroke
38 lb
Pros
- 1200W and 10 amp drive 1-5/8 inch cutters to 2 inch depth
- 5-1/16 inch stroke gives long travel per reset
- Integrated coolant system
- Includes twist drill chuck and adapter
Cons
- Single 450 rpm setting limits small-hole control
- Heaviest machine in the group at 38 pounds
- 11 percent of reviews are 1 star
The EVOMAG42 is built for a production day rather than an occasional job. It runs 1200 watts at 10 amps, cuts a 1-5/8 inch diameter annular cutter to 2 inches of depth, and has a 5-1/16 inch stroke, which means fewer resets on thick plate than most machines in this group.
Three quarters of its reviews are five stars, and the recurring praise is about sustained cutting rather than peak numbers. Buyers working plate and structural sections like that the coolant is integrated into the body instead of hanging off the side.
The tooling interface is the practical strength. A 3/4 inch diameter shank fits most standard annular cutter styles, so you are not locked into one cutter brand, and the kit includes a chuck and adapter for twist drills up to 1/2 inch diameter. That combination lets one machine cover both holemaking methods.
It is also built like a stationary machine in terms of body mass, at 38 pounds and 14 by 9 by 26 inches. That is deliberate for a floor or beam-mounted shop setup, and wrong for a ladder or a confined ceiling cavity.
Who should buy the EVOMAG42
It suits the fabricator drilling bolt-hole patterns in plate all day, and anyone who wants the standard 3/4 inch shank so existing cutter inventory just works. The long stroke and integrated coolant are the features that pay off over a shift.
Buyers with a mixed workload get more out of it too, because the included twist-drill chuck covers the small-hole work that an annular-only machine cannot do.
Where the EVOMAG42 falls short
The single 450 rpm setting is the real constraint. There is no low-speed range for small twist drilling, so finishing a 1/4 inch pilot hole or cleaning up a hole is done at full speed, which is harder on both the bit and your accuracy.
At 38 pounds it is the heaviest machine here, and 11 percent of its reviews are 1 star, the second-highest negative share in this group. Anyone working overhead should look at a low-profile body instead.

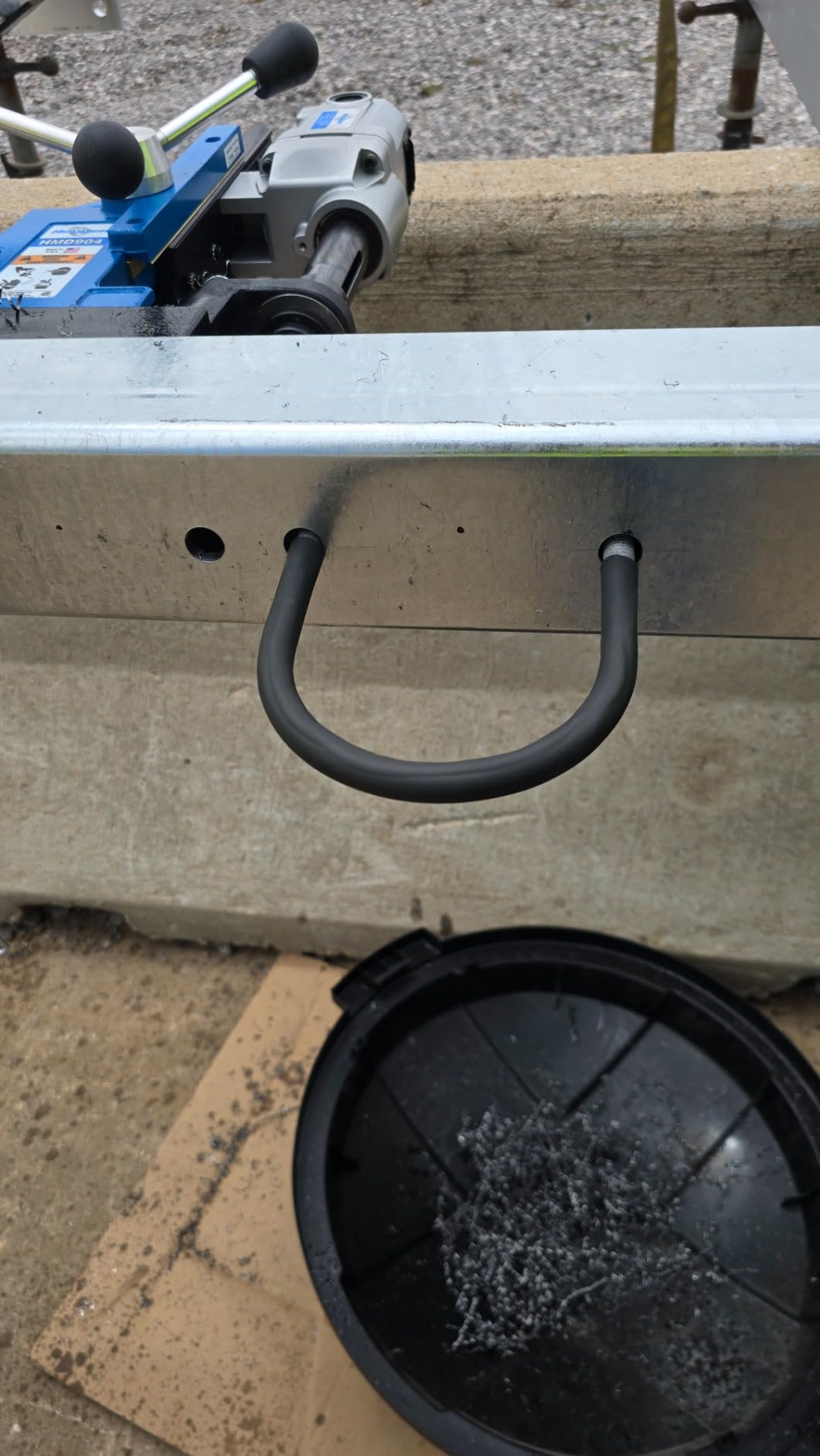

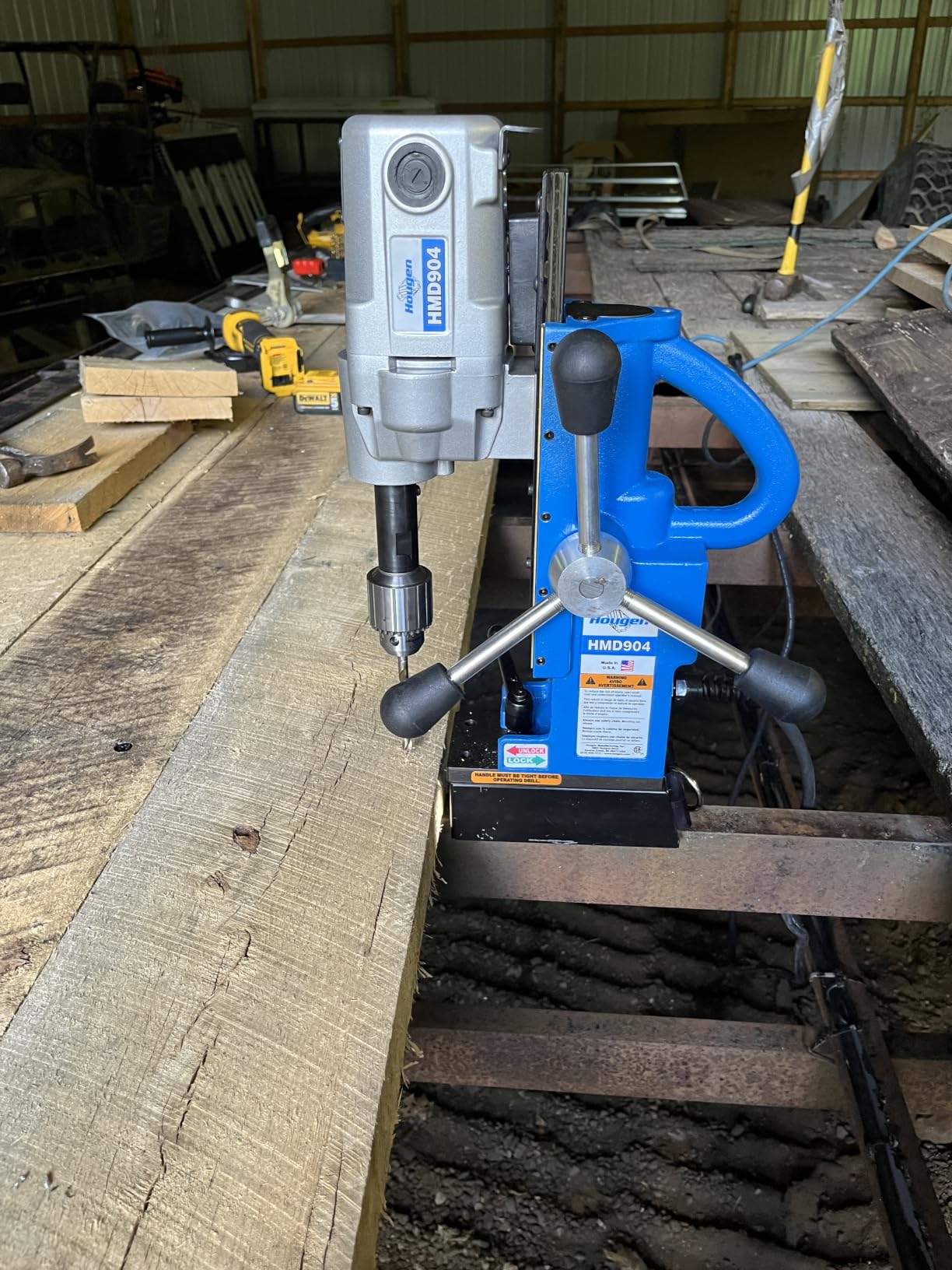

4. Hougen HMD904: Top Rated for Precision Work
Hougen HMD904 115-Volt Magnetic Drill
1-1/2 inch by 2 inch
Two speed to 450 rpm
Lift Detector
Built in USA
Pros
- Highest average rating of the group at 4.8 with 90 percent five stars
- Built in the USA with robust fit and finish
- Two speed gearbox covers annular and twist drilling
- Lift Detector and LED pilot light improve low-light accuracy
Cons
- Highest purchase price in this roundup
- 6 amp draw from 115V limits sustained heavy cutting
The HMD904 has the highest average rating of any machine here at 4.8, and 90 percent of its reviews are five stars with no 1 star reviews at all. Owners describe drilling 198 holes through half-inch steel without issue, and several mention hole accuracy on repeated patterns as the reason it replaced a cheaper machine they returned.
It cuts a 1-1/2 inch diameter by 2 inch depth, with two speed settings up to 450 rpm. The gear range covers annular cutting and twist-drill work in one machine, which is what you want if your hole patterns mix 1 inch bolt holes with 3/8 inch pilot holes.
Two details separate it from the pack. The Lift Detector safety system watches the magnetic circuit and flags a loss of hold, and the LED pilot light puts light on the cut line so you can see the pilot pin and the slug in low light.
The slot drive arbor makes accessory changes faster and more repeatable than a loose arbor nut, the motor cord is routed inside the housing, and the body is shaped for lower overall height. It is made in the USA with a two year warranty, and technical support draws repeated mention from owners.
Who should buy the Hougen HMD904
It fits the shop that needs repeatable hole patterns in steel rather than occasional drilling, and the buyer who would rather buy once. Nothing in the reviews suggests a durability ceiling, which is the opposite of what we found with several value-tier units.
It is also the pick for anyone who needs an honest low-speed range. Two speed settings give you more control at small diameters than the single-speed machines in this group.
Where the Hougen HMD904 falls short
It carries the highest purchase price of the roundup, and that is the only trade-off owners raise consistently. For a buyer drilling a few holes a year, the money is hard to justify.
The 6 amp draw from 115 volts is the other limit. It will not sustain the heaviest continuous cuts as well as the 10 amp machines here, so on a long production run in thick plate a bigger motor has more headroom.

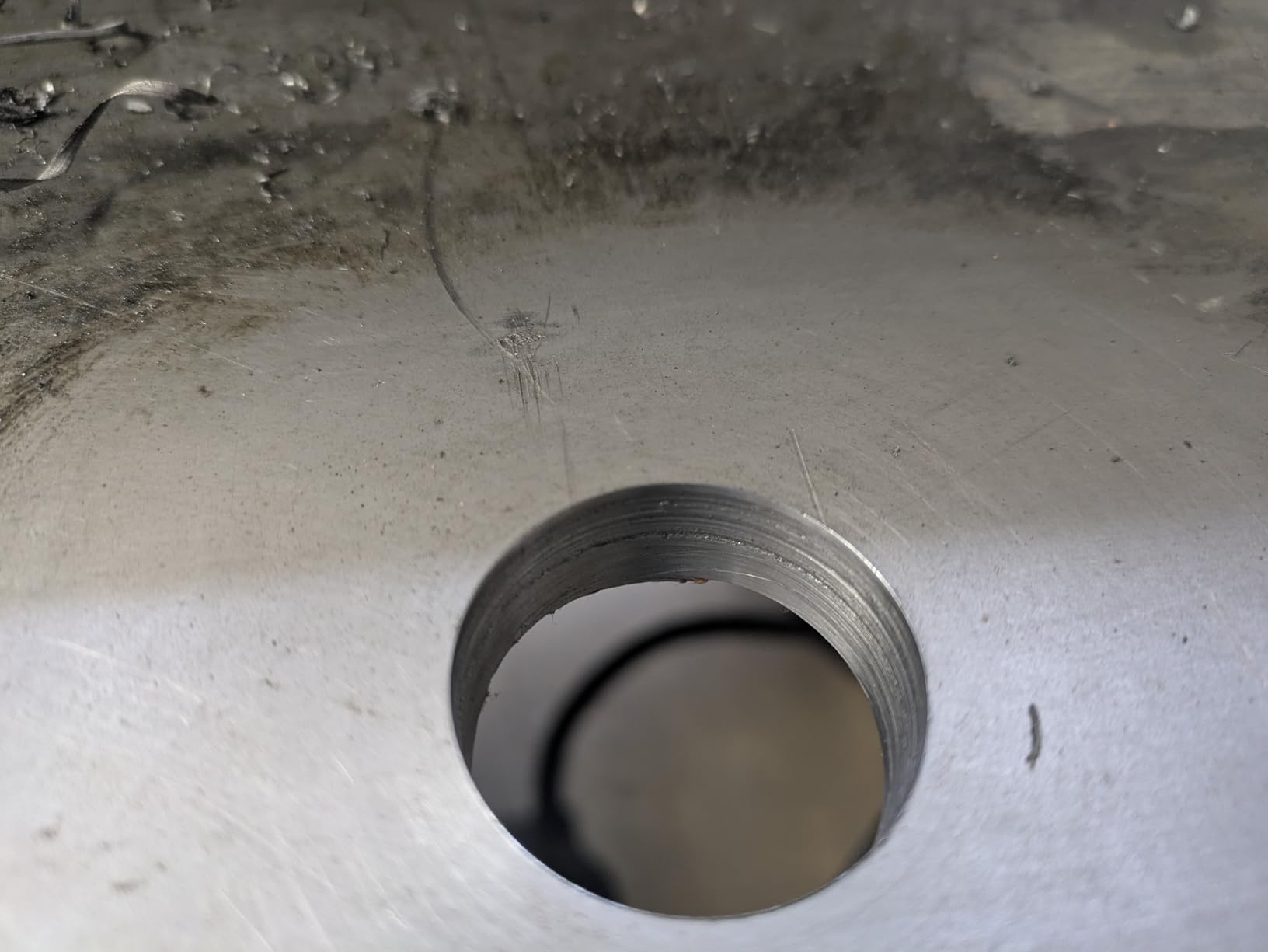

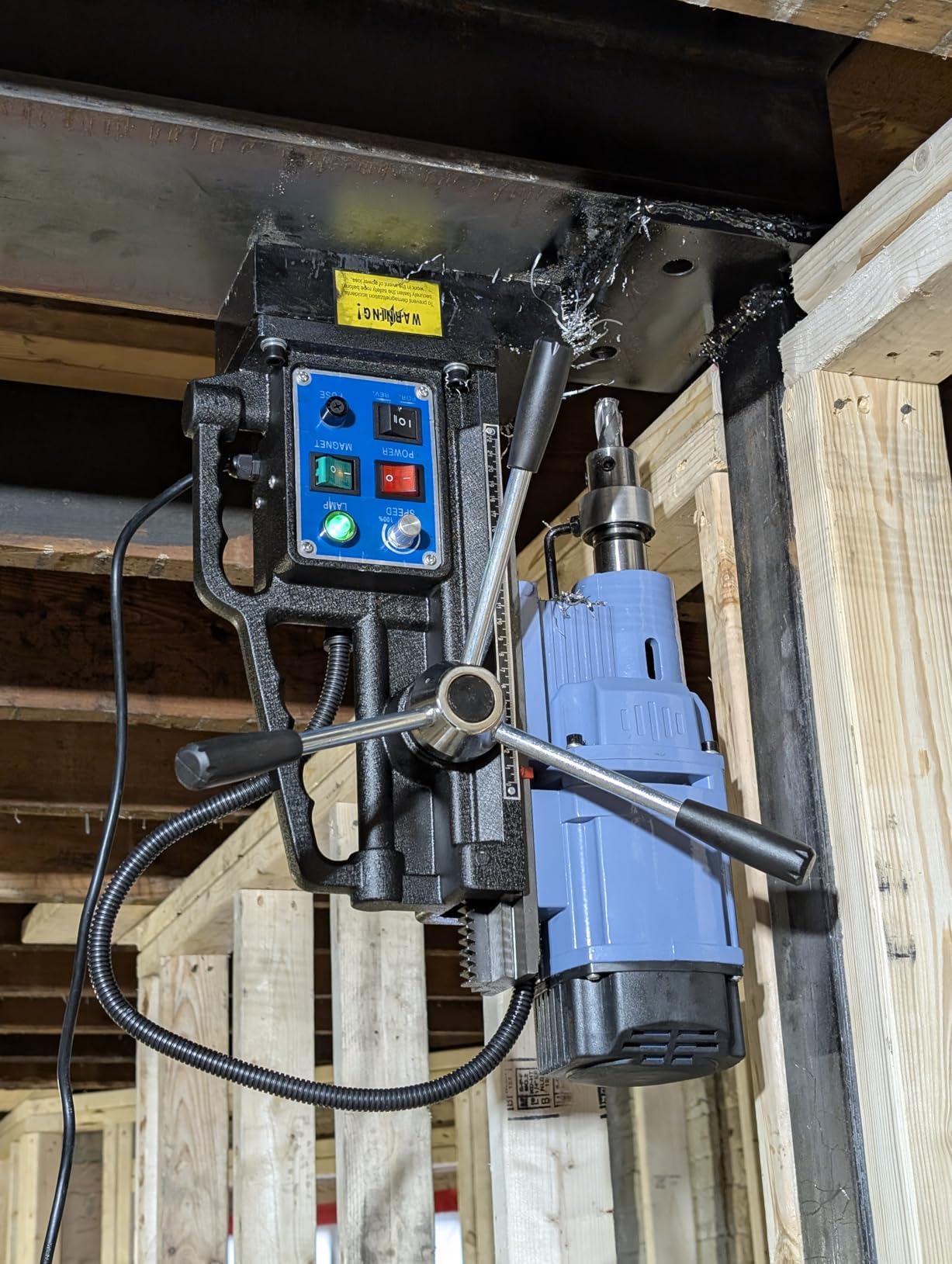

5. ZELCAN 1550W Magnetic Drill Press: Best for Tapping
ZELCAN Magnetic Drill Press with 6 Drill Bits, 1550W Mag Drill Press with 2″ Dia. 3125 lbf/13900N Mag Force, 650 rpm Power Magnetic Drill with Stepless Speed & Reversible Direction for Metal Surface
1550W copper motor
650 rpm
Stepless speed with reverse
3125 lbf hold
Pros
- Stepless speed control plus reverse is rare in this tier
- 3125 lbf magnet completed 18 back-to-back holes in 5/8 inch steel
- Quick release chuck accepts standard drill bits
- 16.9 fl oz coolant reservoir
Cons
- One review reports the unit coming apart after 20 holes
- Listings advertise 220V and 14A but units arrive as 110/120V
- 15.74 inch body will not fit inside joist spaces
The ZELCAN is the only machine in this roundup with both stepless speed control and a reversible direction switch. That combination is what makes it capable of tapping, and reverse is a named regret among people who bought machines without it and then discovered the limit mid-job.
Underneath, it is a 1550W copper motor running at 650 rpm, with a 3125 lbf, or 13900 N, electromagnet on a solid iron base. One owner ran 18 back-to-back 11/16 inch holes through 5/8 inch steel, which is the kind of duty test that separates a real magnet claim from a printed one.
Capacity is 2 inch diameter by 2 inch depth, and six coring bits ship in the box. A 16.9 fluid ounce coolant reservoir sits on the body for heat management on long cuts, and the quick release chuck means the machine is not limited to annular work.
Build quality is the mixed part. Owners praise the column for having no slop, which protects the cutter and holds tolerance, and customer service replaced a cracked plastic guard within a week. Others report slight wobble and holes that were only decently clean.
Who should buy the ZELCAN 1550W
It is the choice when tapping is part of the job, because stepless speed lets you dial the feed to the thread pitch and reverse handles the withdrawal. It also suits anyone who wants one machine to cover both annular cutting and standard drill bits.
The magnet strength suits structural plate and heavy steel sections, and the included coring bits make the first job possible immediately.
Where the ZELCAN falls short
Durability is the concern, and it is not theoretical. At least one review reports the unit coming apart after 20 holes, and 8 percent of ratings are 1 star. At 15.74 inches tall it is not a low-profile body either.
Check the voltage before you plug it in. The listing is advertised at 220V and 14 amps while what arrives is 110/120V, and that kind of mismatch is exactly the sort of thing that turns a good machine into a return.
6. VEVOR Low Profile 1300W Mag Drill: Best for Tight Spaces
VEVOR Low Profile Magnetic Drill Press, 1300 W, 1.4 in Boring Diameter, 2248 lbf Power Portable Mag Drill Press, 650RPM Speed, with Weldon Shank, for Metal Surface, Industrial and Home Improvement
Low profile body
1.4 inch boring diameter
2248 lbf hold
650 rpm
Pros
- Low profile body fits access a full-height drill cannot
- 2248 lbf magnet held for 120 holes on 5/16 inch steel
- Simple enough for a first-time magnetic drill user
- Two control switches save setup time
Cons
- Fixed 650 rpm with no true variable speed control
- Included ratchet can jam
- Short depth travel
- One owner reported failure after a single use with warranty denied
Body height is the whole point of this machine, and at 11 by 3.9 by 8.3 inches and 23.2 pounds it is one of the few low-profile units here that is not a compromise on everything else. The 1300W motor carries a 1.4 inch, or 35 mm, boring diameter to a depth of 1.8 inch, or 45 mm.
Owners confirm the 2248 lbf, or 10000 N, magnet in real work, including 120 holes in 5/16 inch by 3-1/2 inch steel and eight holes in 6 inch schedule 40 pipe in about an hour. Several also note it is simple enough to hand to someone who has never used a magnetic drill.
It holds on vertical and sloped metal surfaces, which covers most of the awkward mounting positions. Overload protection and a cooling system support sustained high-load work, and the Weldon shank interface is the standard many annular cutters are built around.
Two control switches for setup and drilling are a small touch that saves real time on repetitive hole patterns, where you set the position, engage, then cut.
Who should buy the VEVOR low profile
It is for anyone drilling inside a deep beam, a joist space, a trailer frame or up against a wall where a full-height body simply will not fit. The magnet strength and speed range are sufficient for structural steel, not just light sheet work.
First-time buyers who are intimidated by the category often start here, because the controls are uncomplicated and the body is easy to reposition.
Where the low-profile VEVOR falls short
It runs at a fixed 650 rpm with no true variable speed, even though the listing shows 10 speed settings for the motor. That removes the control you want for small twist drills and for managing break-through in thin plate.
Two other limits are worth planning around. The 1.8 inch depth of cut means a pilot bit has to be fed in stages, and the 13 percent one-star share here is the highest in the group, including a report of a unit failing after a single use with a denied warranty claim.
7. Makita HB350: Best for Speed on Twist Drills
Makita HB350 1-3/8″ Magnetic Drill
850 rpm from a 10 amp motor
1-3/8 inch by 2 inch capacity
Spindle coolant
37 lb
Pros
- 850 rpm is the fastest spindle here for small twist drilling
- 10 amp motor pairs speed with cutting power
- Removable cutting guard isolates the rotating mechanism
- 500mL spindle coolant reservoir with hose
Cons
- Single 850 rpm speed only
- Smallest review pool of the roundup at 20 reviews
- Listings show no manufacturer warranty
The Makita runs the highest spindle speed of any machine here, 850 rpm from a 10 amp motor, and for a fabricator running pilot holes and smaller twist drills that is the number that matters. The rest of these machines sit between 450 and 750 rpm.
Its annular capacity is 1-3/8 inch diameter in steel up to 2 inches thick, which covers most bolt-hole work in structural steel. Owners like the combination of speed and power, and the finish it puts on a hole.
The safety and coolant details are well considered. A removable cutting guard isolates the rotating mechanism while it spins, and the spindle coolant system feeds from a 500mL removable reservoir through a connection hose, which keeps the cutting edge cooler than a top-mounted bottle.
It is built for constrained and elevated work locations, and the kit is well organised: a polyester safety strap, the cutting guard, hex wrenches and a tool case.
Who should buy the Makita HB350
It fits the shop whose hole patterns are mostly small and medium twist holes, where a 450 rpm machine would have you leaning on the bit. A fabricator drilling pilot holes before a 1 inch bolt will notice the speed difference on every hole.
The removable guard and safety strap also suit overhead and elevated work, where the operator wants less exposed rotating mass near their hands.
Where the Makita HB350 falls short
With 20 reviews, it has the smallest evidence base in this roundup. The 4.5 average is encouraging but it is not enough to make fine-grained reliability claims, so we would want the hands-on time to build before treating it as a shop standard.
There is also no manufacturer warranty listed on the listings, and the single 850 rpm setting means no low-speed range at all for finishing small holes.
8. BLUEROCK TYP-28A Mini Magnetic Drill: Best Compact Annular Machine
BLUEROCK TYP-28A Typhoon Mini Magnetic Drill Press, 110V 950W 640 RPM Compact Mag Drill, 7/16″-1-1/2″ Annular Cutter Capacity, 2600 LB Magnetic Force, 2″ Drilling Depth
Compact mini body
7/16 to 1-1/2 inch annular
2600 lb hold
640 rpm single speed
Pros
- Low profile height turns awkward overhead work into an easy job
- Buyers report 13/16 inch holes in solid 1.5 inch steel
- 2600 lb magnetic force holds on vertical and horizontal steel
- Detailed manual with an exploded parts view plus a hard case
Cons
- Lowest average rating here at 4.0 with 17 percent one-star reviews
- Annular cutters only
- so no twist drill capability
- Overhead handle collides with the feed handle
The TYP-28A is a dedicated annular machine in a compact body, and that is both its appeal and its limit. Capacity runs from 7/16 inch to 1-1/2 inch at 2 inches of depth, with 2600 lb of magnetic force, and owners report 13/16 inch holes in solid 1.5 inch steel and 5/8 inch holes through 5/8 inch plate.
Several buyers describe it saving hours versus hand-drilling frame rails, and the low profile height is what makes overhead work possible at all. The magnet is reported to hold well on vertical and horizontal steel.
It runs 110V at 60Hz with a single 640 rpm speed, and the package includes a hard plastic carrying case. The manual is unusually good, with an exploded parts view, which is a small thing that saves time when a part needs replacing.
The polarization in the reviews is worth noting. 52 percent are five stars and 31 percent are four stars, while 17 percent are 1 star, concentrated on heat build-up and marginal hole quality on large cuts. One owner returned a unit that ran extremely hot and bogged down on a 1 inch hole.
Who should buy the BLUEROCK TYP-28A
It suits someone doing repetitive annular work in overhead or confined positions where a full-size machine cannot go, and who works in annular cutters only. The compact body and 25 pound weight are the reason to own it.
The documented capacity is enough for structural bolt-hole work, and the case and manual make it a friendly first machine for a shop that does not have dedicated annular tooling yet.
Where the TYP-28A falls short
It is annular cutters only, with no twist drill capability. If your hole patterns include pilot holes, you will need a second machine, which is a real cost and space penalty for a small shop.
Heat is the recurring complaint on large cuts, and the single 640 rpm setting gives you no way to slow the feed and spread the load. The overhead handle is also reported to be about an inch too long and to collide with the feed handle.
How to Choose a Magnetic Drill Press: Six Decisions That Matter
Most bad magnetic drill purchases come down to one of six decisions being skipped. Work through them in order and the model basically picks itself.
1. Hole diameter, cutting depth and twist-drill capacity are three different numbers
Coring diameter is the largest hole an annular cutter can cut. Cutting depth is how deep the machine can drive that cutter into the steel. Twist-drill chuck capacity is the largest conventional bit the chuck will take, and it is usually much smaller than the coring figure. A machine advertising 2 inch capacity may hold a half-inch twist drill, and a machine with 1.8 inch depth of cut may need a pilot bit fed in stages.
Map your jobs to those three numbers before you look at brands. If you are cutting 1 inch bolt holes through 1 inch plate, you need coring diameter above 1 inch and depth above 1 inch, and a stroke that gets you there in one pass.
2. Prove the base can attach before you buy
Every machine here needs steel plate 3/8 inch, or 10 mm, and thicker, and the surface must be bare. Scrape paint, mill scale, rust and primer off the contact area with a wire wheel or a file, and confirm the plate is thick and flat enough for the footprint of the base.
Curved surfaces, thin tube, aluminium and stainless with a scale finish are the usual reasons a magnet that holds fine in a shop will not hold on site. If your material is not ferrous or not thick enough, a magnetic drill is the wrong tool and no purchase fixes that.
3. Measure the working envelope, not just the capacity
Capacity tells you the biggest hole. The working envelope tells you whether the machine physically fits over your work. Standard bodies here run 15 to 19 inches tall and 33 to 38 pounds, which is fine on a beam face and wrong inside a joist cavity.
Low-profile models come in around 8 to 10 inches tall and roughly 23 to 25 pounds, and they trade depth of cut for that clearance. Decide which one you need before comparing anything else.
4. Speed control decides how many jobs you can do on one machine
Annular cutting wants low spindle speed and a lot of torque. Small twist drilling wants more speed. A stepless dial, a two-speed gearbox or a wide variable range all solve it; a fixed speed does not.
Reverse is the other half of this decision. A machine with a direction switch can tap, and a machine without one cannot. Several fabricators cite the absence of reverse as their main regret on an otherwise capable machine.
5. Corded or cordless is a battery-platform decision
Cordless magnetic drills now sit at the top of the market, and the reason to want one is straightforward: no lead to trip over, no generator on a remote site, and no search for an outlet. The reason to hesitate is equally straightforward, because you are buying into a battery platform and a charger ecosystem.
Check the platform, the battery count in the box and the charger included before you commit, and factor the cost of a second battery into the package rather than the machine.
6. Price the working package, not the machine
A magnetic drill press is a motor, a magnet and a frame. The working package is the machine plus annular cutters, pilot pins, coolant, a safety rope, a case, and batteries and a charger if it is cordless. The machines listed here that include six annular cutters and a coolant tank, like the VEVOR 1450W and the ZELCAN, reach their first cut sooner than a cheaper bare machine.
Annular cutters are consumable. Budget for a carbide set for production steel work and treat the pilot pins as something you will replace, because a damaged pilot pin puts a cutter off diameter quickly.
Safety and Operational Tips for Magnetic Drilling
Magnetic drilling is safe when the envelope is respected, and most of the accidents we see described by fabricators come from ignoring the envelope rather than from the tool.
Respect the minimum plate thickness. 3/8 inch, or 10 mm, is the floor across this category. Thinner material means the magnet is outside its rated holding force.
Clean the surface first. Scrape paint, primer, rust and mill scale off the contact area. A magnet on a dirty surface is the most common cause of drift mid-cut.
Use the safety rope for inverted and horizontal work. Every serious failure in this category is the machine detaching and falling. The rope is included with several of these machines for that reason.
Run coolant on every annular cut. A cutter that overheats at break-through loses its edge, and a dull cutter is what turns a clean cut into a snag.
Ease off the feed at break-through. The instant the pilot pin breaks through to air, torque spikes. Welders with thousands of hours on structural steel describe the sudden stop at the end of a cut as what actually kills cutters, far more than the drilling itself.
Clear slugs by hand, not with the motor. Stop the machine, remove the power and clear the slug and chips before the next hole.
Wear eye protection and gloves. Hot slugs come out of the cut at speed, and the eye risk on annular work is the highest in the shop.
Frequently Asked Questions
What is a magnetic drill press used for?
A magnetic drill press is used to drill accurate holes in steel, plate, beams and other thick ferrous material without moving the workpiece to a bench press. An electromagnet base clamps the machine to the steel, so you can drill vertical, horizontal or overhead. The common jobs are bolt-hole patterns in structural steel, penetrations in heavy plate, field maintenance and HVAC or trailer work.
Who makes the best magnetic drill press?
There is no single winner, because the machines divide into clear tiers. Hougen leads on rating and build quality for shop and precision work. DEWALT is the strongest all-round choice, with the largest review pool and a two-speed 10 amp motor. Evolution suits heavy fabrication cutting, Makita suits fast twist-drill work, and VEVOR covers the value and low-profile segments.
What thickness of steel can a magnetic drill press handle?
The standard limit across this category is 3/8 inch, or 10 mm, of steel plate and thicker, and the contact surface must be clean bare metal. One model in our list states its rating explicitly at 0.39 inch, or 10 mm. Thinner material, curved surfaces, pipe and non-ferrous metals are outside the envelope of any of these machines.
Can you use regular drill bits on a mag drill?
Yes, on most of them. Six of the eight machines here include a chuck and adapter for twist drills, with capacity ranging from a half-inch chuck upward. The exceptions are annular-only machines such as the BLUEROCK TYP-28A, which is built exclusively for annular cutters and cannot take conventional drill bits.
Do you need a pilot hole for a magnetic drill?
No. A magnetic drill press uses a pilot pin on the annular cutter to centre itself, then cuts the core out around it, so no pre-drilled pilot hole is required. A pilot pin does wear, though, and a damaged or bent pilot pin will throw the hole off diameter quickly, so pins are treated as a consumable.
How safe are magnetic drills?
They are safe within a clearly defined envelope, and the risks are predictable. The magnet can lose hold on thin, curved, painted or scaled steel, which is why the surface must be cleaned and the plate must be at least 3/8 inch thick. For inverted or horizontal work, attach the supplied safety rope, run coolant, clear slugs by hand and wear eye protection.
Are Evolution mag drills any good?
The EVOMAG42 in our list is a fabrication-grade machine. It runs 1200 watts at 10 amps, cuts a 1-5/8 inch annular cutter to 2 inches of depth, and has a 5-1/16 inch stroke, which is longer than most. Three quarters of its reviews are five stars. Its main limit is a single 450 rpm setting, which restricts small twist drilling.
What are the common problems with magnetic drills?
The most common problems are not tool faults. They are surface-preparation failures where the magnet grips paint or mill scale, plate thinner than 3/8 inch, and work overhead without a safety rope. Cutting with no coolant, pushing the feed at break-through, and machines with no reverse when you need to tap are the other recurring ones.
Which Magnetic Drill Press Should You Buy?
Pick the DEWALT DWE1622K if you want one machine that handles almost any structural steel job. Two speeds, 4 inches of travel, a quick-change chuck, overload protection and a carrying case add up to the most complete package we found, and its 521 reviews are the largest evidence base here by a wide margin.
Pick the Hougen HMD904 if hole accuracy and repeatability matter more than cost. It has the highest rating in the group at 4.8 with 90 percent five stars and no 1 star reviews, plus a Lift Detector and an LED pilot light.
Pick the VEVOR 1450W if you want to be cutting today on a budget and stainless and cast iron are not on your list. Six annular cutters and a coolant tank are in the box, and the 0-750 RPM range is unusually wide for the tier. Pick the VEVOR low profile instead when access, not capacity, is your problem.
Pick the Evolution EVOMAG42 for a production shop that needs a long stroke and a standard 3/4 inch shank, the ZELCAN 1550W when you need to tap, the Makita HB350 when your holes are small twist drills and speed is the priority, and the BLUEROCK TYP-28A for overhead annular work in confined spaces.
Whichever one you choose, the accessories decide how fast it becomes useful. Buy a carbide annular cutter set, spare pilot pins, coolant, and a safety rope if there is any overhead work in your future. That is the package, and it is where the difference between a good machine and a used one shows up in the first month. Our best magnetic drill press for metalworking remains the DEWALT DWE1622K for most buyers in 2026.
