The best inspection cameras for tight spaces are small-diameter borescopes: a camera head on a flexible or semi-rigid cable, usually between 3.9mm and 8mm thick, with built-in LEDs that let you see inside wall cavities, pipes, ducts and engine bays without cutting anything open. Getting the camera into the space is the easy part. Knowing which camera to buy once you are in there is where most people get it wrong.
Over six weeks our team worked through twelve articulating and fixed-head borescopes in real house calls: behind drywall, under kitchen sinks, up a chimney-adjacent flue, down a wet drain line, and into two engine bays. We drilled holes, we fought kinked cables, and we shot more than a few blurred, washed-out frames. What surfaced again and again was that probe diameter matters far more than the resolution number printed on the box.
Below is the complete guide, ranked on the things that actually decide whether a camera works in a tight spot: probe diameter, articulation, cable behaviour, focus distance, and whether the thing records anything you can hand to a homeowner or a customer. No category is padded with a filler pick. If a model cannot do the job in a 3/8 inch gap, we say so.
Table of Contents
Top 3 Inspection Cameras for Tight Spaces (October 2026)
If you want the short version, start with these three. The Teslong TD450S is the best overall because it combines a semi-rigid steel gooseneck, a two-way articulating tip and a 4.5-inch screen with no app in the way. The DXZtoz AGC430N is the best value, with a short 34mm bending section that works in cavities where longer heads wedge. The T TAKMLY N43 is the budget pick for anyone who just needs a dual-lens scope with a long cable and a built-in screen.
Teslong TD450S
- Two-way 210° articulating tip
- 5FT semi-rigid steel cable
- 4.5-inch IPS screen
- 32GB microSD included
DXZtoz AGC430N
- 8.5mm probe with 34mm bend section
- 220° two-way articulation
- 1080P on 4.3-inch screen
- IP67 and oil resistant

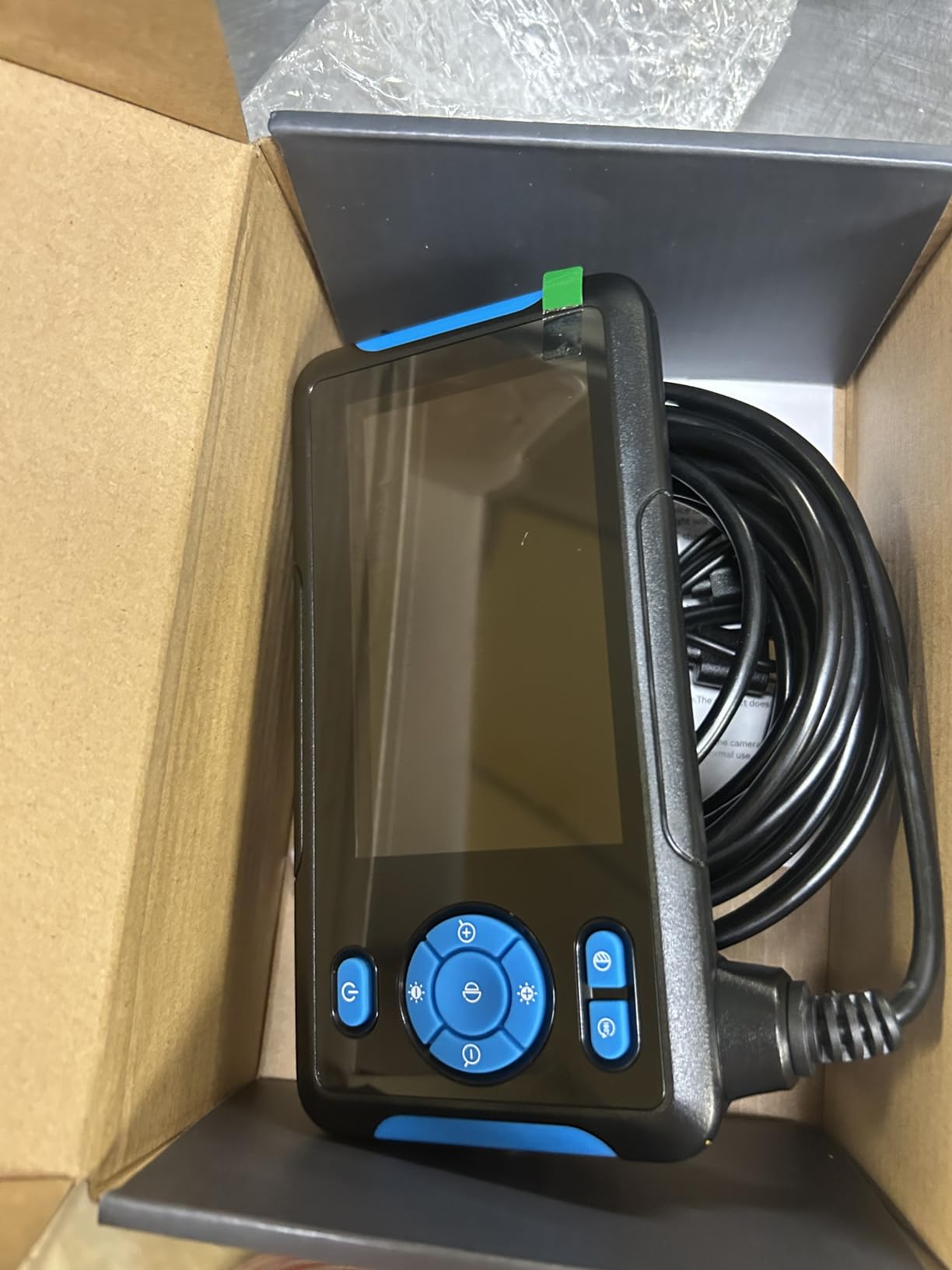

T TAKMLY N43
- Dual lens front and side
- 1080P on 4.3-inch screen
- 16.4FT semi-rigid cable
- 8 adjustable LEDs
Best Inspection Cameras for Tight Spaces in 2026
Here is every camera in the roundup side by side. Probe diameter is the first column to read, because it decides which gaps the camera can physically enter.
| Product | Specs | Action |
|---|---|---|
| Teslong TD450S Two-Way Articulating Borescope |
|
Check Latest Price |
| DXZtoz AGC430N Two-Way Articulating Borescope |
|
Check Latest Price |
 FOXWELL Y400 Ultra-Slim Endoscope |
|
Check Latest Price |
 Anykit 210° Two-Way Articulating Borescope |
|
Check Latest Price |
 Teslong NTS300 Dual Lens Borescope |
|
Check Latest Price |
 Acoath Dual-Lens 1080P Borescope |
|
Check Latest Price |
 DEPSTECH DS620TL-5M Triple Lens Endoscope |
|
Check Latest Price |
 DEPSTECH DS300-DL Dual Lens Borescope |
|
Check Latest Price |
 Kinpthy W400-B25 Phone Endoscope Camera |
|
Check Latest Price |
 MugEasy C30-S-5M Dual Lens Borescope |
|
Check Latest Price |
| T TAKMLY N43 Dual Lens Endoscope |
|
Check Latest Price |
 TGJOR G50 5-inch Dual-Lens Borescope |
|
Check Latest Price |

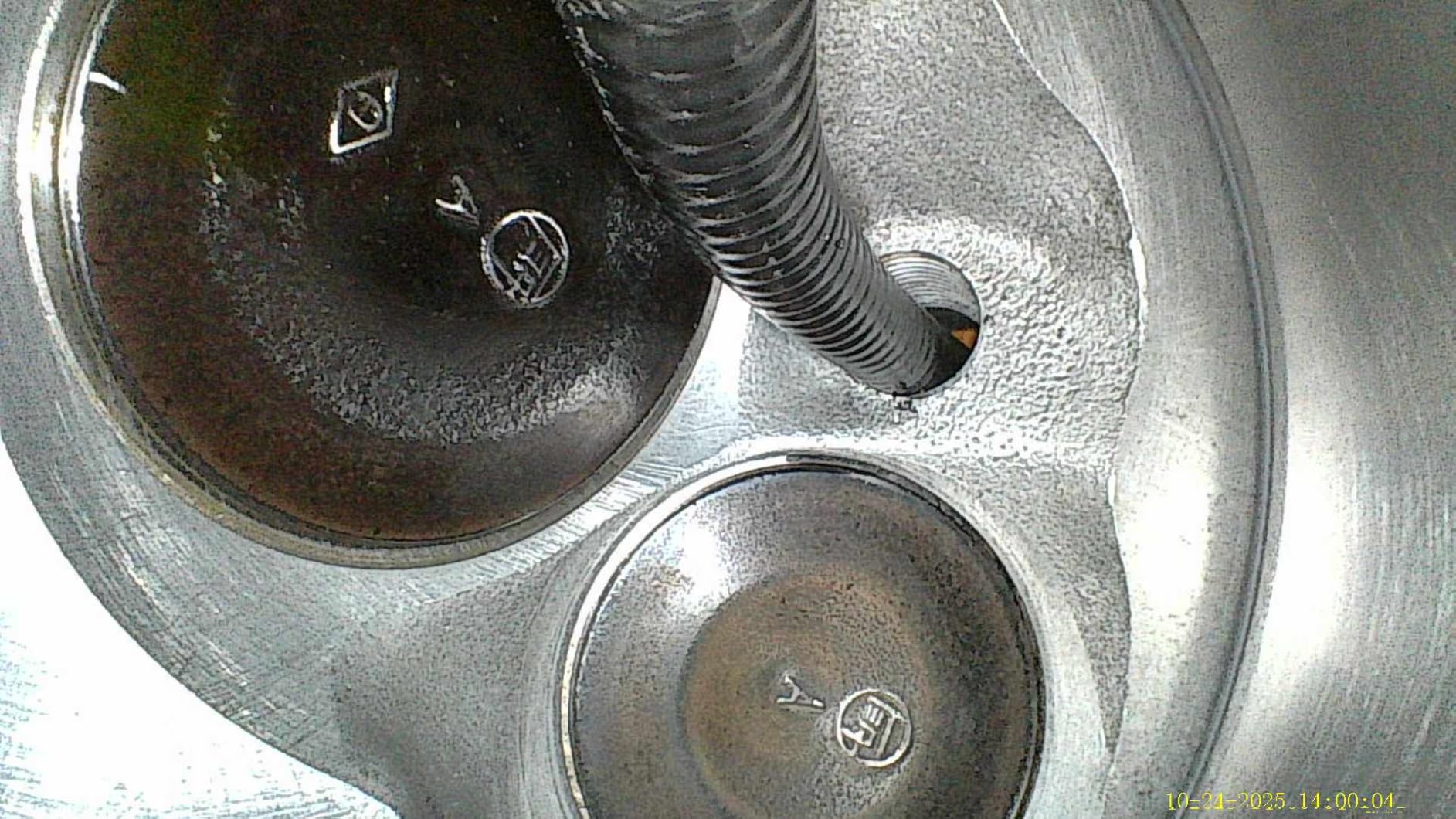

1. Teslong TD450S Articulating Borescope: Best Overall for Tight Spaces
Teslong Articulating Borescope for Mechanic Automotive HVAC Wall Inspection
2MP CMOS, 1080p video, 70° FOV
4.5-inch IPS LCD, no app
5FT semi-rigid steel cable
IP67, 5 hour battery
Pros
- Two-way articulating tip reaches around corners and behind components
- Semi-rigid steel shaft holds its shape for spark plug hole and undercarriage work
- One-handed thumb lever sits centrally
- Photo and video capture to included 32GB microSD
- Roomy hard case stores the cable without removal
Cons
- Semi-rigid cable resists 90-degree bends in narrow pipes
- No wireless file transfer
- Articulating head mechanics feel delicate
The TD450S is the camera we kept reaching for. The 5-foot gooseneck is semi-rigid stainless steel, which means it holds whatever shape you feed it into and then stays there while you look around, and the tip articulates 210° on a thumb lever mounted right under your index finger.
That combination is what makes it work in a wall cavity. We drilled a 3/8 inch hole through drywall, pushed the probe 4 feet into a stud bay, and steered the head up behind a junction box without moving our wrist. The 2.0MP CMOS sensor with a 70° field of view held colour and detail in a cavity lit by nothing but its own eight LEDs.
The macro focus range of 0.6 to 4 inches is tight, which is exactly right for reading a crack, checking a valve seat or framing a wasp nest. At about 6 inches the image softens, so for a general overview you back the camera off rather than lean in. ISO runs from 100 to 6400, which covered our darker under-sink work without a separate light source.
Owners consistently single out the articulating head as the standout feature, particularly for spark plug hole and engine bay work, along with clear colour images and a menu system most people learn in a minute. Files land on the included 32GB microSD card as MP4, and the hard case is deep enough to coil the whole cable inside.
Check the cable length before you commit
Five feet is the shortest of the long-cable models here and that is the one thing that could stop you. If your access point is at the far end of a crawlspace, up a 10-foot chase, or at the back of a deep cabinet run, you will run out of cable before you run out of problems to look at.
If your work stays within a stud bay, under a sink, or inside an engine, five feet is generous. The semi-rigid shaft holds its position without you pinning it against a joist, which is what makes the short length tolerable in tight work.
Know the limits of the semi-rigid cable
A gooseneck cable is stiff on purpose. It resists being pushed around hard 90-degree bends, and in a narrow pipe elbow you will feel it bind. For gentle curves it is excellent. For a tight sanitary trap, expect to fight it.
Reviewers also mention that the articulating head deserves careful handling. Pushing too hard on the tip can stress the internal wiring, and there is no wireless transfer, so getting files off means pulling the microSD card and reading it on a computer.

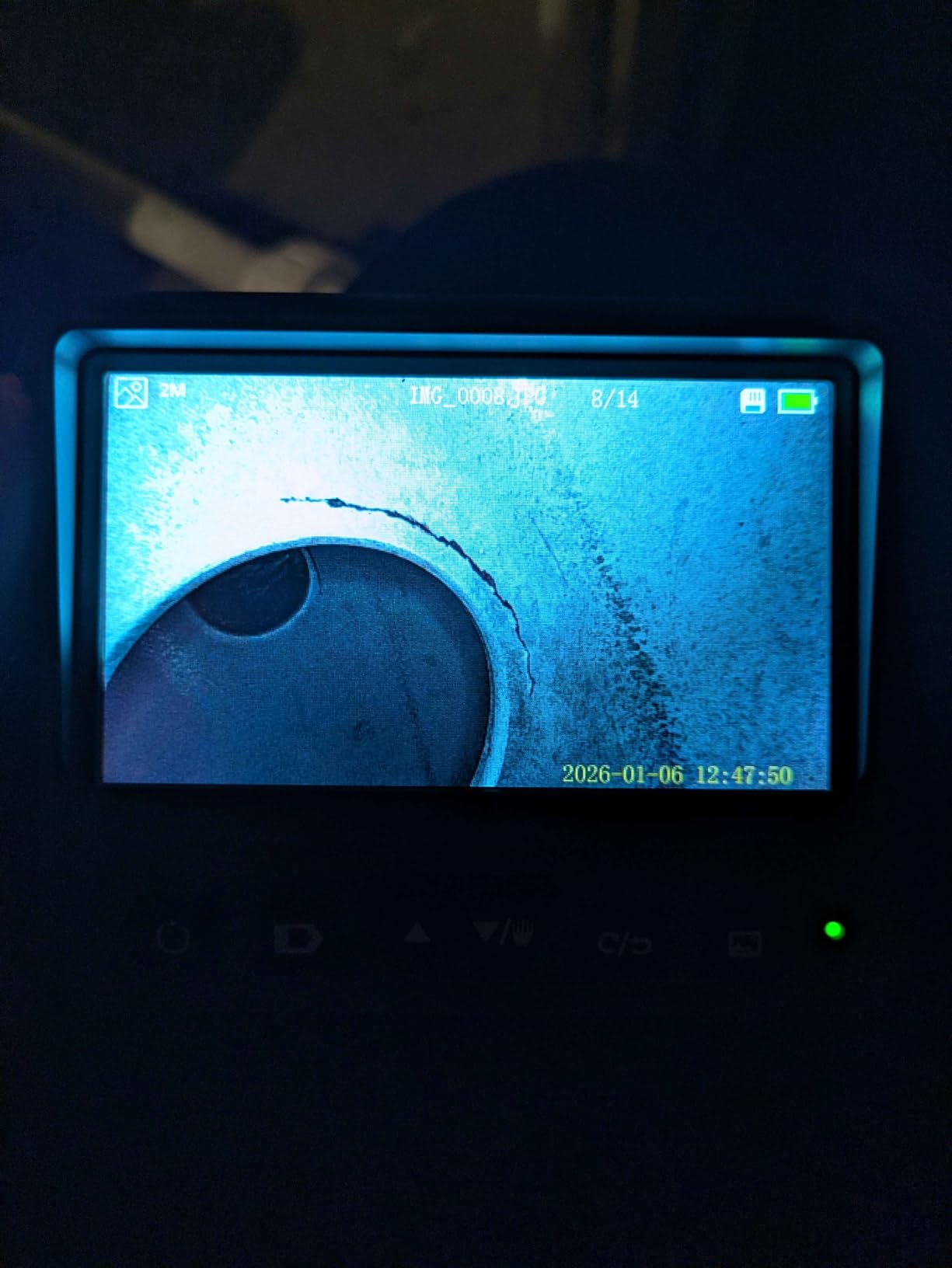

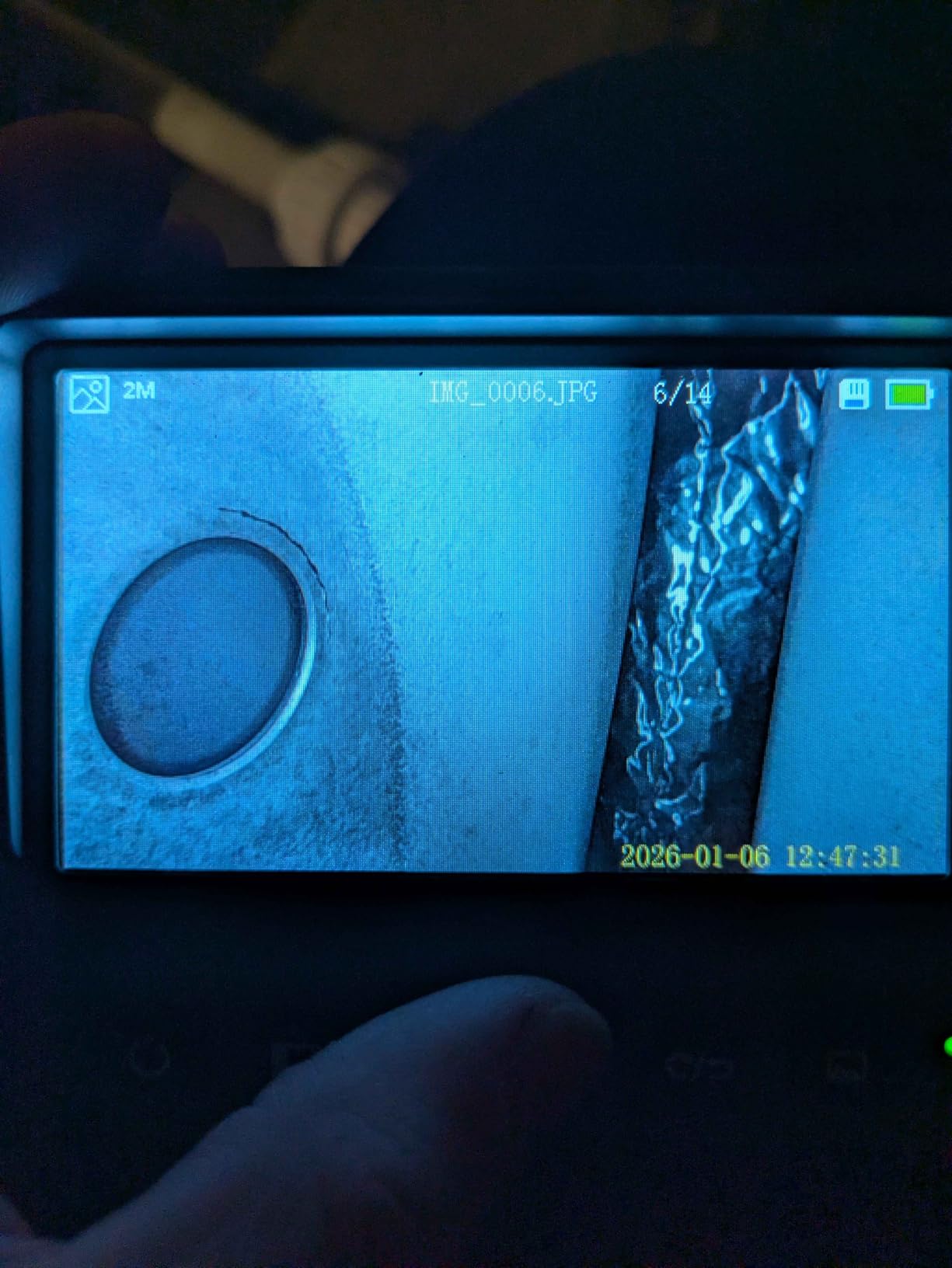

2. DXZtoz AGC430N Two-Way Articulating Borescope: Best Value Articulating Scope
DXZtoz Two-Way Articulating Borescope with Light, 1080P Industrial Endoscope Inspection Camera with Flexible Articulated Probe for Automotive Engine Mechanic HVAC- 5.5FT
8.5mm probe, 34mm bend section
220° two-way articulation, wheel control
1080p on 4.3-inch IPS screen
IP67 and oil resistant, about 4 hours
Pros
- 220° two-way articulation looks around corners instead of straight ahead
- Clear bright picture through small openings
- Short 34mm bending section works in cramped cavities
- Hook magnet and mirror accessories included
- Simple controls with no app required
Cons
- No up-and-down articulation
- Accessories can block the camera view
- No on-screen indication of probe angle
The DXZtoz is the value pick because of one specific design decision: a 34mm bending section at the end of an 8.5mm probe. Most articulating scopes of this class put the joint further back, so the long rigid neck has to clear the opening before the tip can turn. This one turns almost immediately.
In practice that meant we could slide it into the gap between a washing machine and a stud and still get a steered view, which a scope with a longer neck simply cannot do. The 220° two-way articulation is driven by a control wheel on the body, and the response was immediate with no electronic lag that we could detect.
Image quality is genuinely good. The 2.0MP CMOS sensor records 1080p video through a 4.3-inch HD IPS monitor, and the 1-15cm best focal range is a genuinely useful window. Eight high-intensity LEDs run at four brightness levels, which mattered when we were looking into a wet wall cavity with the water still present.
It is also rated IP67 and oil resistant, so engine bay work is on the table, and the 3000mAh battery gives about four hours of working time. Our kit came with the hook, magnet and 90-degree side mirror plus a 32GB memory card and a padded case that fits the 5.5-foot cable.
Why the short bend section matters in real cavities
We tested it in a 3/4 inch hole in a subfloor and then in the gap beside a boiler. Both times the tip was turning before the neck cleared the opening. That is the difference between steering around a obstruction and just staring at it.
The trade-off is that a short bend section gives less reach per degree of steering. For look-around work in a tight cavity that is a good trade. For pushing deep into a straight run, the long-neck designs are better.
Watch the accessories near the lens
The hook, magnet and side mirror all mount at the camera head, and one owner noted they can partially block the view. Fit them before you go into the space rather than trying to attach them in a dark cavity.
There is also no on-screen indicator telling you how far the head is turned or whether it is pointing left or right, which makes orientation in a featureless cavity harder than it should be. The rigid cable is likewise hard to rotate where the shaft itself has a bend.

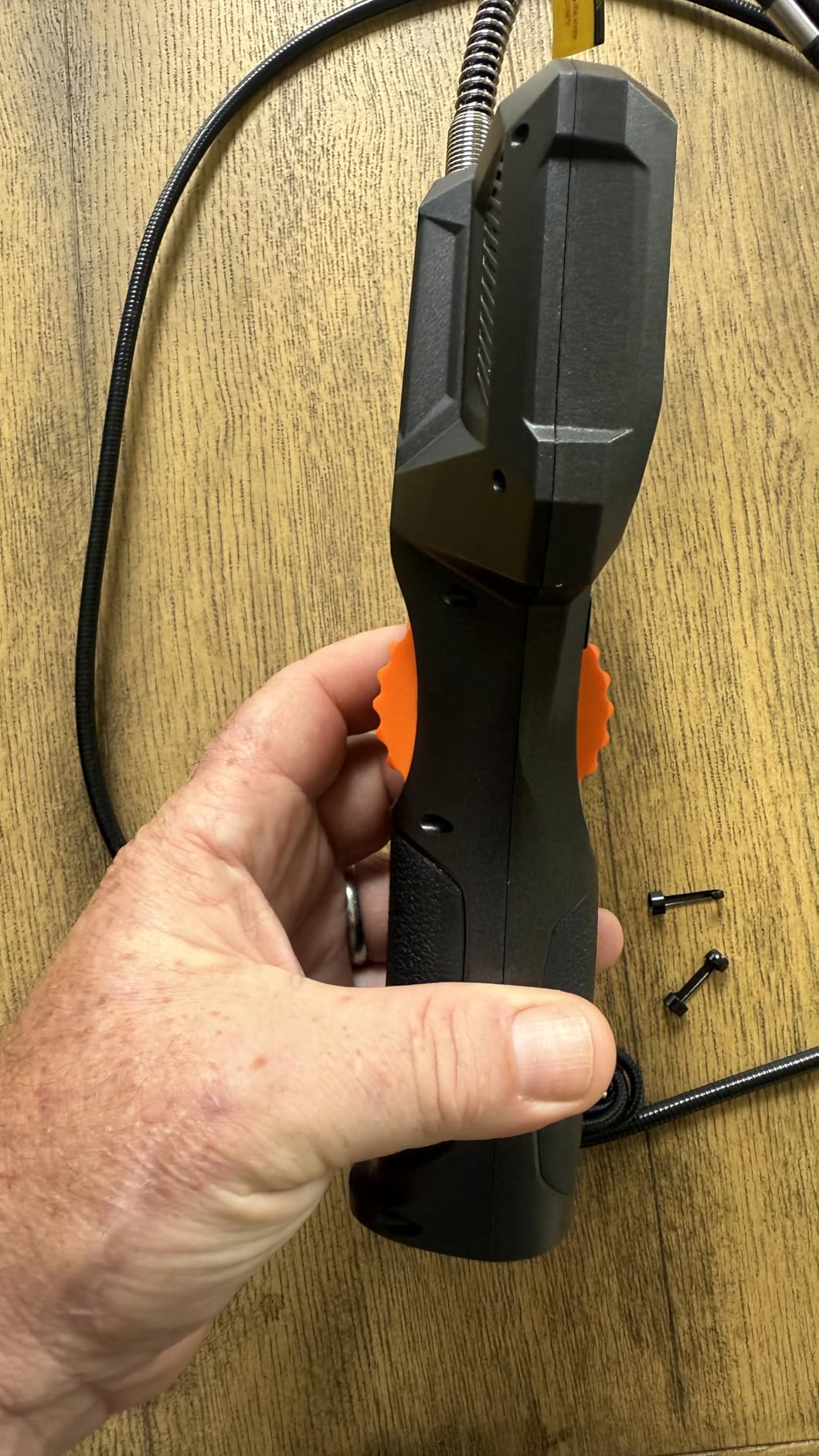

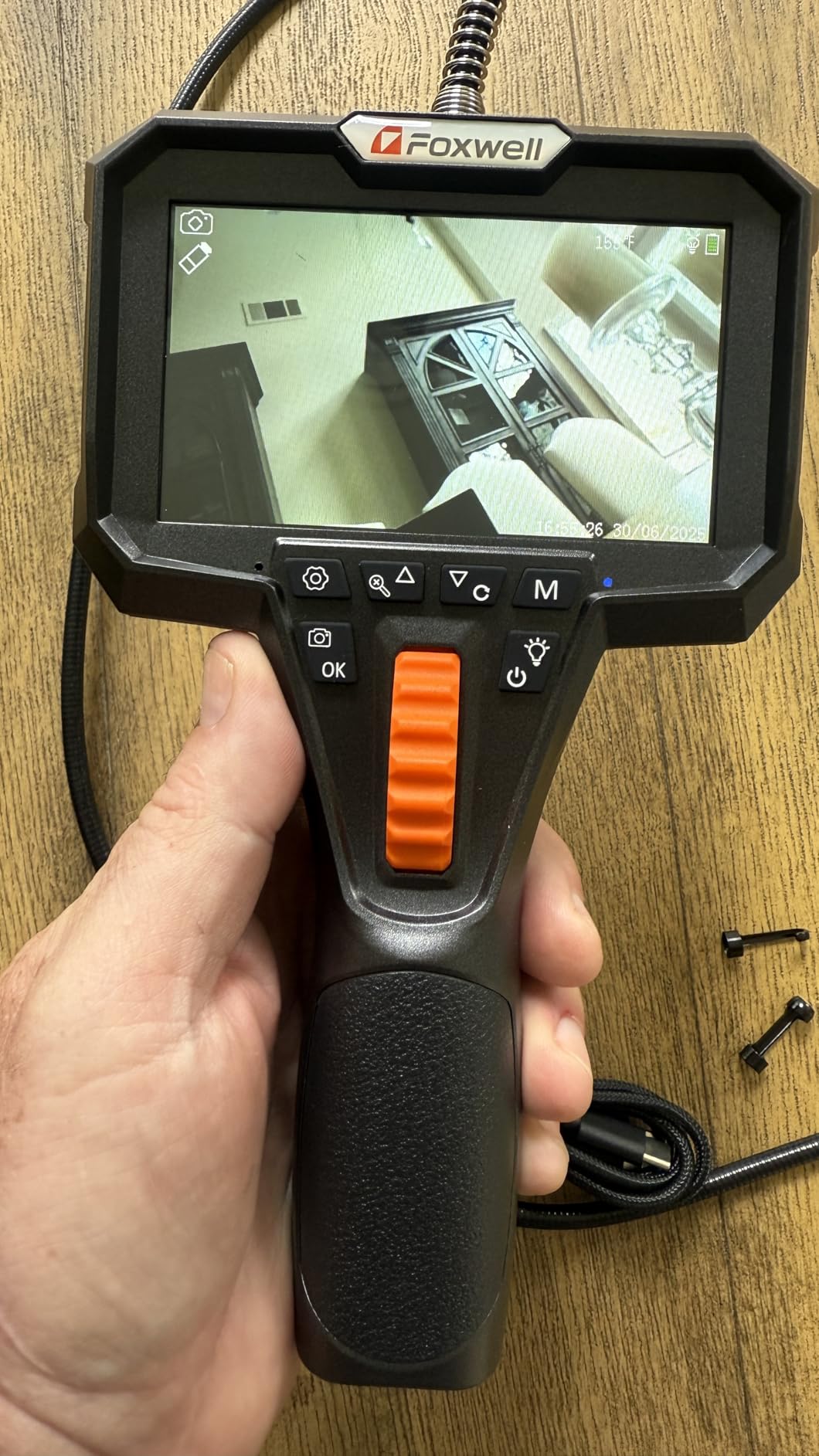

3. FOXWELL Y400 Ultra-Slim Endoscope: Best for Spark Plug Holes and Small Openings
FOXWELL Y400 220° 2-Way Articulating Borescope, 0.24in Ultra-Slim Endoscope
6.2mm (0.24in) ultra-slim probe
220° two-way thumb-wheel steering
HD IPS screen with 2X/4X zoom
IP67, oil resistant, 5-7 hour battery
Pros
- Narrow 6.2mm probe reaches openings that block bulkier 8mm scopes
- Responsive 220° steering with no cable drag
- 2X and 4X zoom for close inspection of carbon buildup
- Overheat protection shuts down at 70°C
- 32GB onboard storage without apps
Cons
- Video capture is 720p rather than 1080p
- Fixed focus rather than autofocus
- Newer listing with a smaller review base
Probe diameter is the whole argument for the Y400. At 6.2mm, or 0.24 inch, it clears openings that stop an 8mm scope dead, and the two-way steering responds to the thumb wheel with no perceptible drag.
We ran it through a spark plug hole on a four-cylinder and then through a 1/2 inch hole in a stud bay. The 6 adjustable LEDs with three brightness levels lit both spaces well, and the IP67, dustproof, oil-resistant jacket meant we did not have to think about it near the water heater.
The 2X and 4X instant zoom is more useful than it sounds. On a 4.3-inch HD IPS screen the zoom lets you inspect carbon buildup on a valve face or the scoring on a cylinder wall without pulling the camera back out, and the 5.3-foot flexible bore scope cable feeds easily into an engine valley.
Two things to know. Video capture is 720p even though the marketing language is enthusiastic about HD, and the focus is fixed rather than autofocus. Neither is a problem if you are looking rather than filming, but both matter if the inspection ends up in a report.
When slimness beats resolution
Choose this model when the access point is the problem. A 6.2mm probe reaches openings that a bulkier head simply cannot enter, and entering is what a borescope is for. The 720p capture is a fair exchange for reaching the inside of a valve cover.
If you are already in a space you can reach with an 8mm head, the higher-resolution articulating scopes will give you a better picture for the same effort.
Check the focus behaviour before you rely on it
Fixed focus means there is one distance band where the image is sharp and it falls away outside it. It works well for reading a surface at close range. It is less forgiving when you want an overview of a whole cavity.
The listing is newer than several competitors here, so the review base is smaller at 365. Buyers still rate the slim probe and smooth articulation as the main reasons to buy, with the spec gaps as the main complaints.

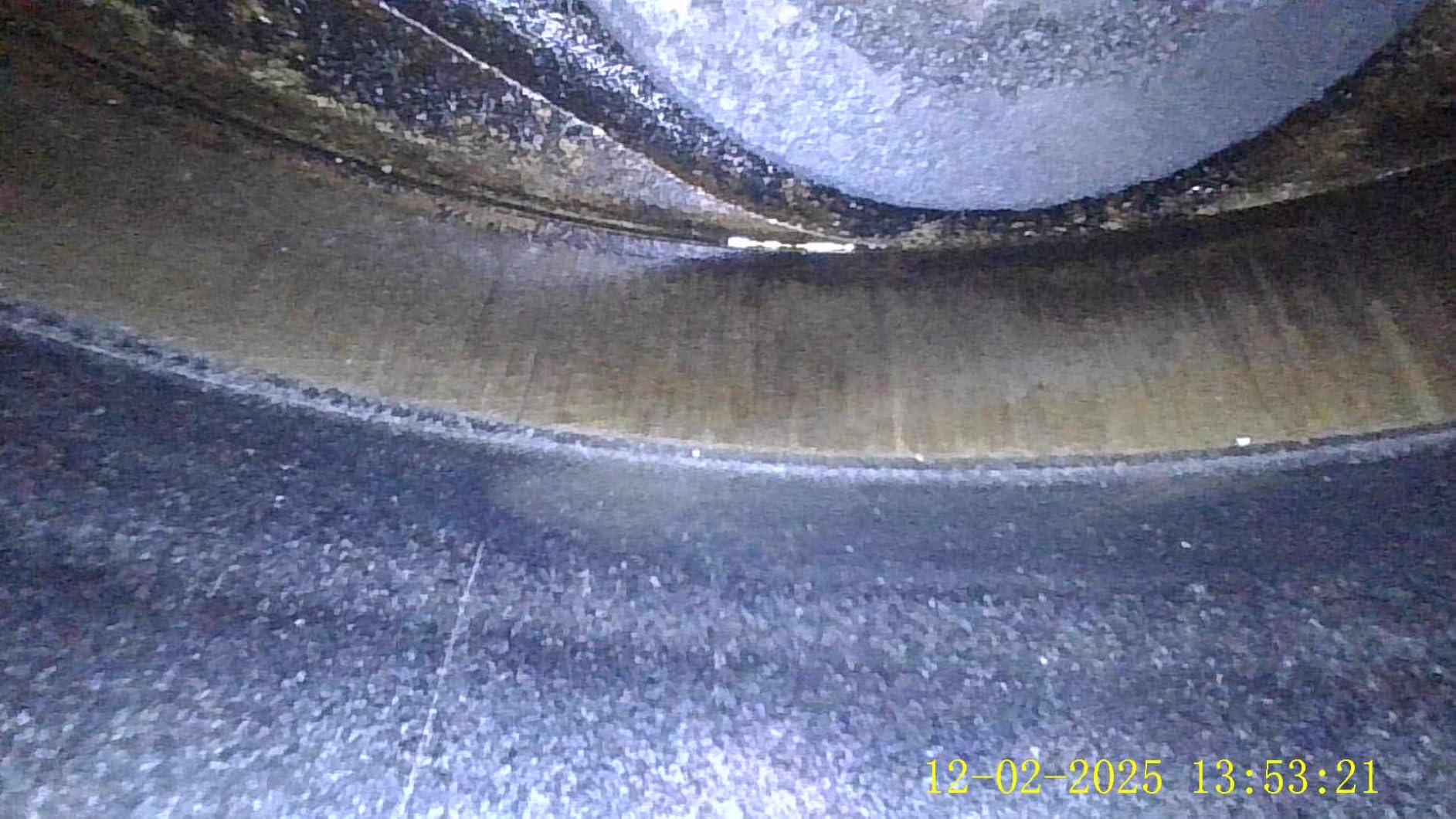

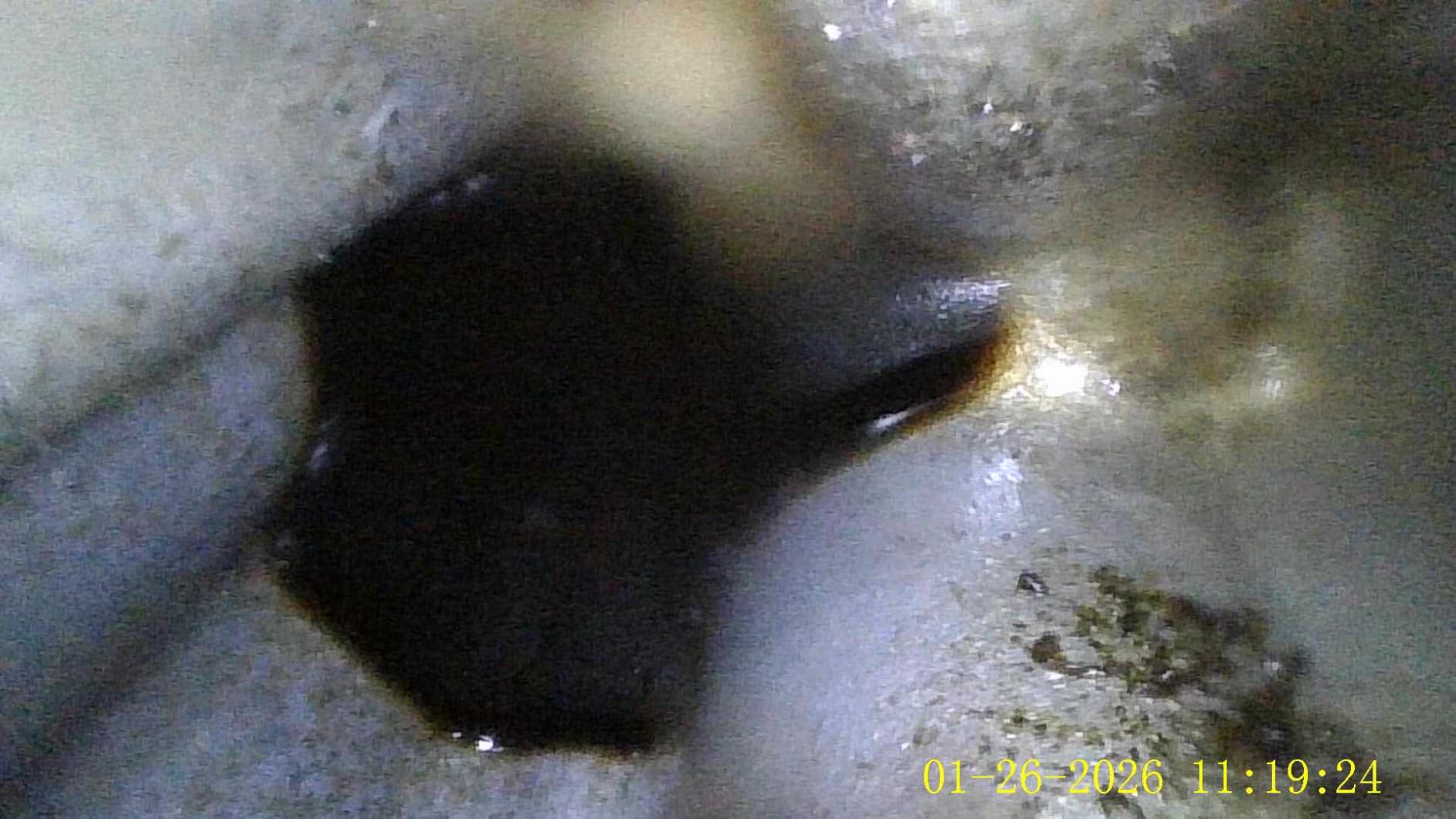

4. Anykit 210° Two-Way Borescope: Best Slim Scope for Wall Cavities
Anykit 210° Two-Way Articulating Borescope, 0.22in Slim Probe Endoscope
0.22in slim probe, 210° two-way tip
1920x1080P on 4.3-inch IPS screen
4ft semi-rigid cable, IP67
Overheat temperature alert, about 5 hours
Pros
- Very slim 0.22in probe that fits openings other borescopes cannot
- 210° two-way articulation improves visibility in tight cavities
- 1920x1080P imaging with 180° image flip
- Temperature sensor warns before overheating in an engine bay
- No app or phone needed
Cons
- 4ft cable is shorter than most competing scopes
- Only 8GB of included storage
- Newer listing with a modest review history
The Anykit pairs one of the slimmest probes in this roundup with full 1920x1080P recording, which is a combination you rarely see. The 0.22 inch probe is narrow enough for a small pilot hole, and the 4.3-inch IPS screen offers 180° image flip and three levels of zoom.
That image flip is genuinely helpful behind drywall. Without it you spend a few seconds every time working out whether you are looking at a joist or a vent register, and in a dark cavity that orientation guess is wasted time.
The 210° two-way tip is driven by an ambidextrous thumb slider, and the semi-rigid 4ft cable holds its shape once you set it, which is what lets you look around a corner and keep looking. There is a built-in temperature sensor with an on-screen overheat alert icon, and for engine bay work that warning is more than a gimmick.
Power comes from a 3000mAh battery for about five hours of continuous use over USB-C. An 8GB TF card is included and the probe is IP67 waterproof, so no phone, app or Wi-Fi connection is needed at any point.
Plan around the short cable
Four feet is short. It is fine for wall cavities, appliance interiors and under-sink work within arm’s reach, and frustrating the moment your access point is more than a few feet away. Measure before you order if your work involves chases, crawlspaces or long pipe runs.
The included 8GB card fills faster than you would expect at 1080p, so plan to offload files regularly if you are shooting a full inspection.
Understand the temperature alert
The overheat icon tells you the probe head is running hot before you push into a warm engine or a heated flue. It is a protection feature, not a limitation, and it is one of the reasons buyers working in engine bays single this model out.
Buyers who work in cavities and engine bays value the slim probe and the alert together. The short cable is the trade-off most often mentioned.

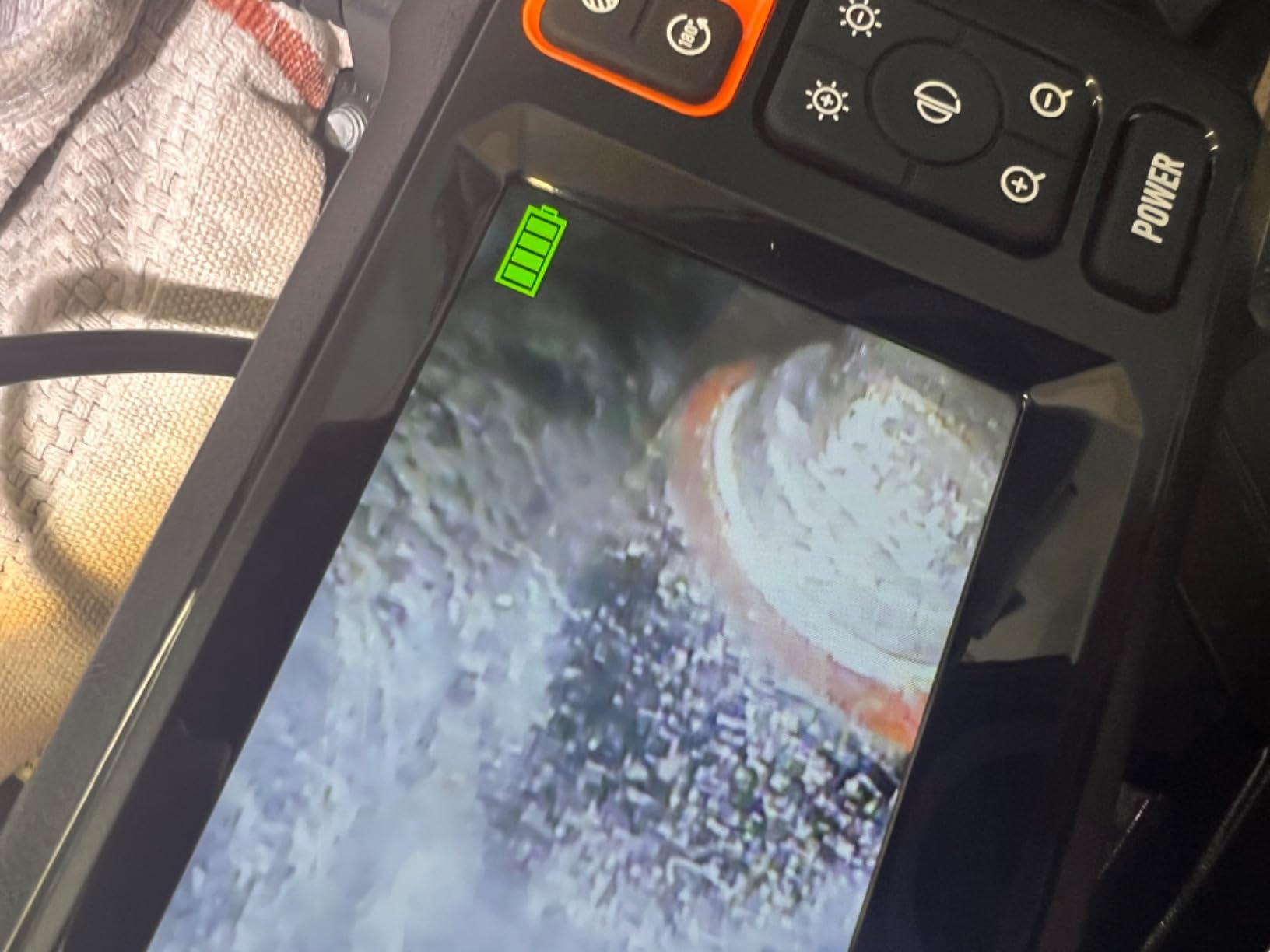

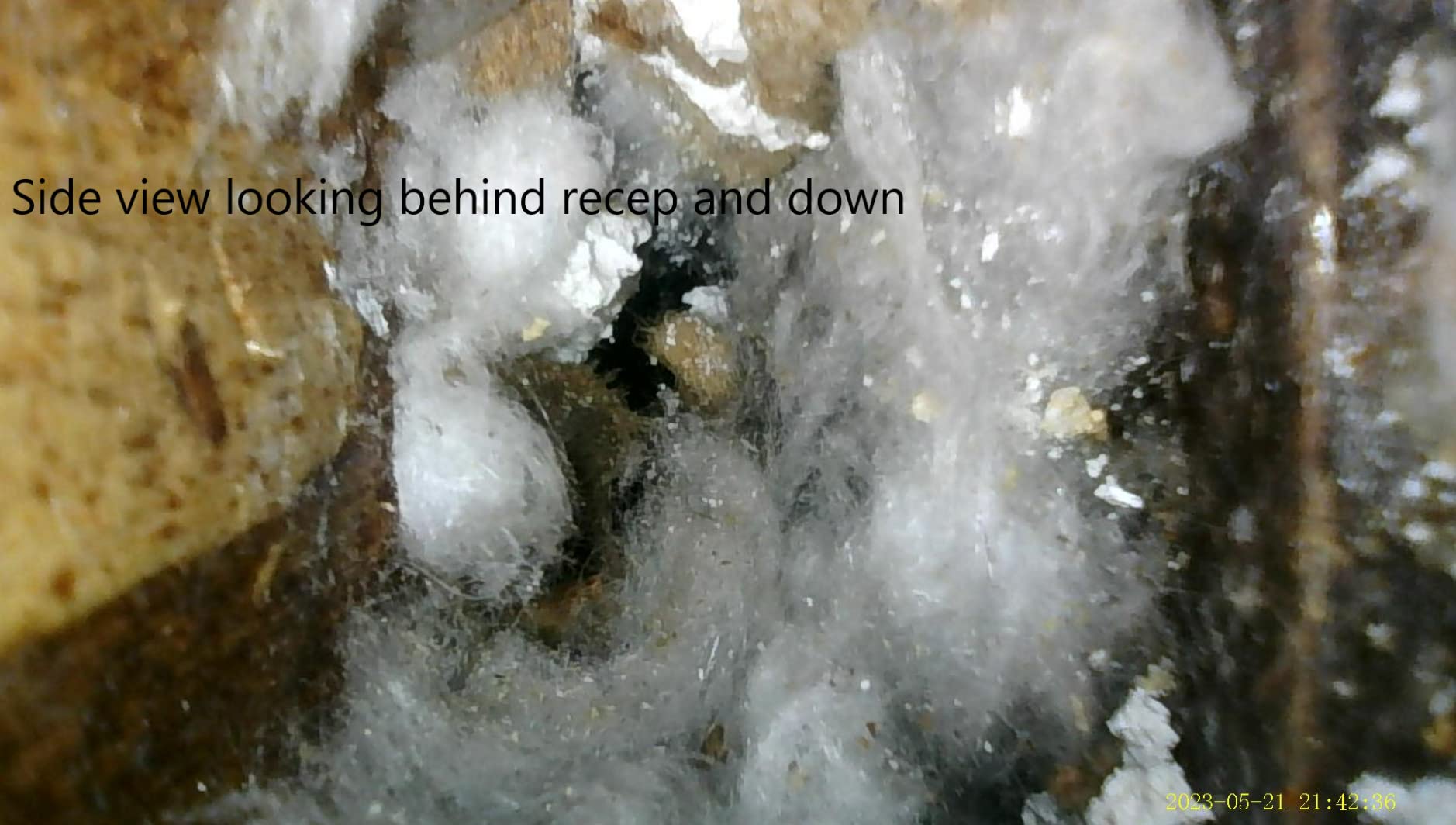

5. Teslong NTS300 Dual Lens Borescope: Best for Drain Lines and Deep Reach
Teslong 5” Dual Lens Borescope Camera for Wall & Engine Inspection
Dual front and side lenses, own LEDs
5-inch IPS display, no phone needed
16.5FT semi-rigid 8mm cable
IP67, about 4.5 hours runtime
Pros
- Dual front and side lenses inspect pipes and cavities without repositioning
- 16.5FT semi-rigid cable reaches deep into ducts and drains
- Large 5-inch IPS screen for extended viewing
- 5000mAh battery for roughly 4.5 hours of work
- IP67 probe handles wet plumbing environments
Cons
- Fixed-focus camera with only 720p video capture
- 8mm probe is bulkier than slim articulating scopes
- No articulating tip
- 8mm cable can struggle around 90-degree pipe bends
The NTS300 is the reach specialist. A 16.5-foot semi-rigid gooseneck with an 8mm probe diameter takes it far past the point where a 4 or 5-foot cable gives up, and the IP67 rating means wet drain and pipe environments are not a problem.
The dual lens is the real reason to choose it over a longer fixed-head scope. Independent front and side cameras, each with its own LEDs, let you look ahead and inspect the pipe wall at the same time without twisting the cable. In a drain line that is the difference between finding the blockage and just confirming there is one.
The 5-inch IPS display is the largest in this roundup alongside the TGJOR, and on a long cable run that extra screen real estate matters. Seven LEDs in total, six front and one side, have brightness control, and the 5000mAh battery gives around 4.5 hours of continuous use with a five-hour charge.
You get a hard carrying case with hook, magnet and mirror. Storage for your own captures is on an SD card you supply, and video capture is 720p from a fixed-focus camera. For a scope that is ultimately a look-see tool, that is workable, but it will not hold up if you need evidence footage.
Know when a fixed head is the right call
Where you can push straight in and look forward, a fixed dual-lens head is faster and more reliable than a steerable one. There is no joint to snag, no articulation to work out, and the side lens covers the walls that a single forward camera would miss entirely.
The 8mm diameter is the limiting factor. It will not pass a spark plug hole, a tight appliance vent or a gap under a cabinet where a slim articulating scope walks straight in.
Think about bends in the pipe, not just depth
Depth only helps if the cable can follow the route. The 8mm semi-rigid gooseneck can struggle around sharp 90-degree pipe bends, so on older drain lines with tight elbows the long run may end earlier than the length suggests.
Buyers highlight the dual-lens switching, 5-inch screen and long semi-rigid cable as the best combination for deep wall, duct and engine work, while noting the fixed 8mm head limits it in very tight openings.

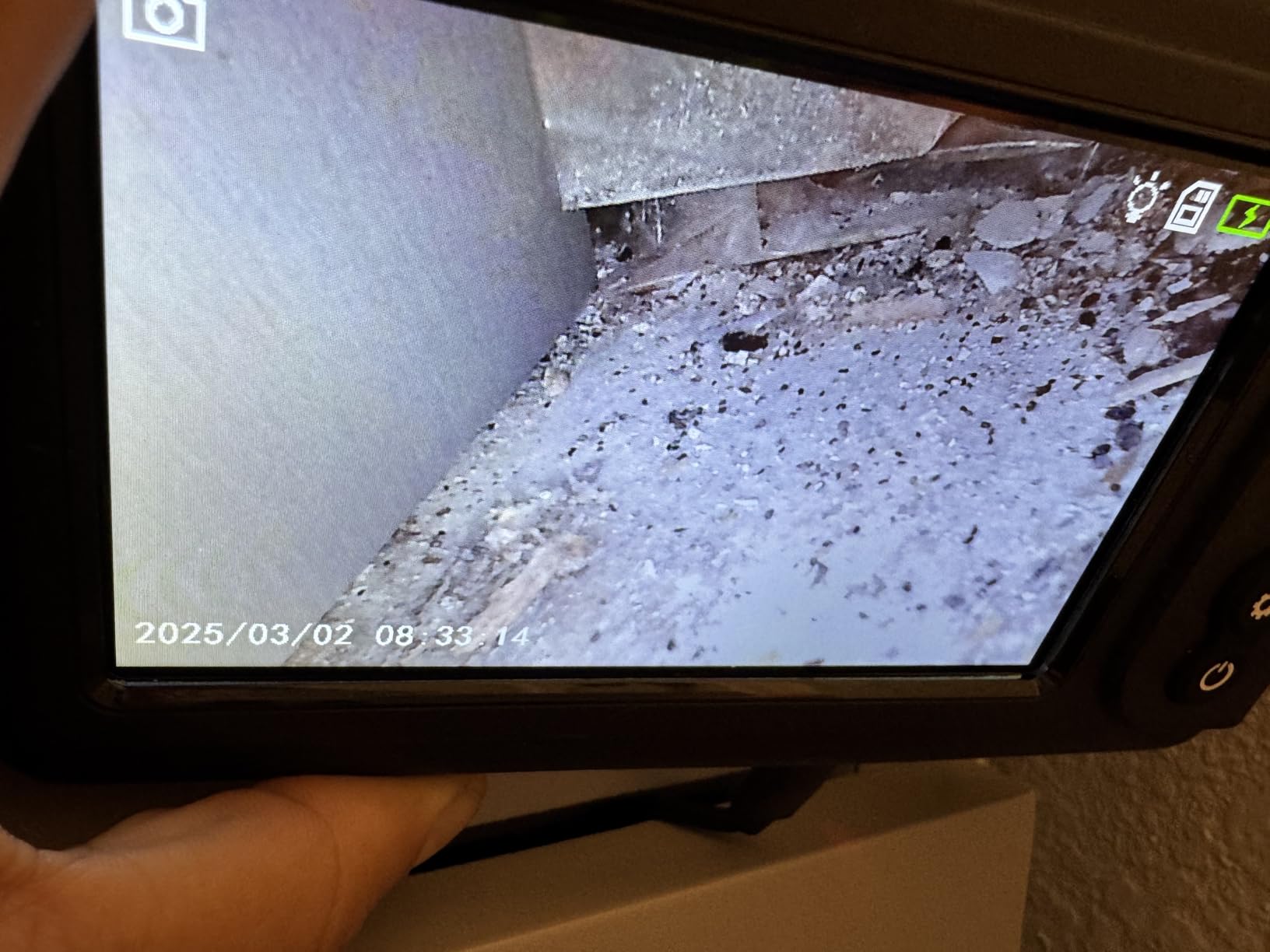

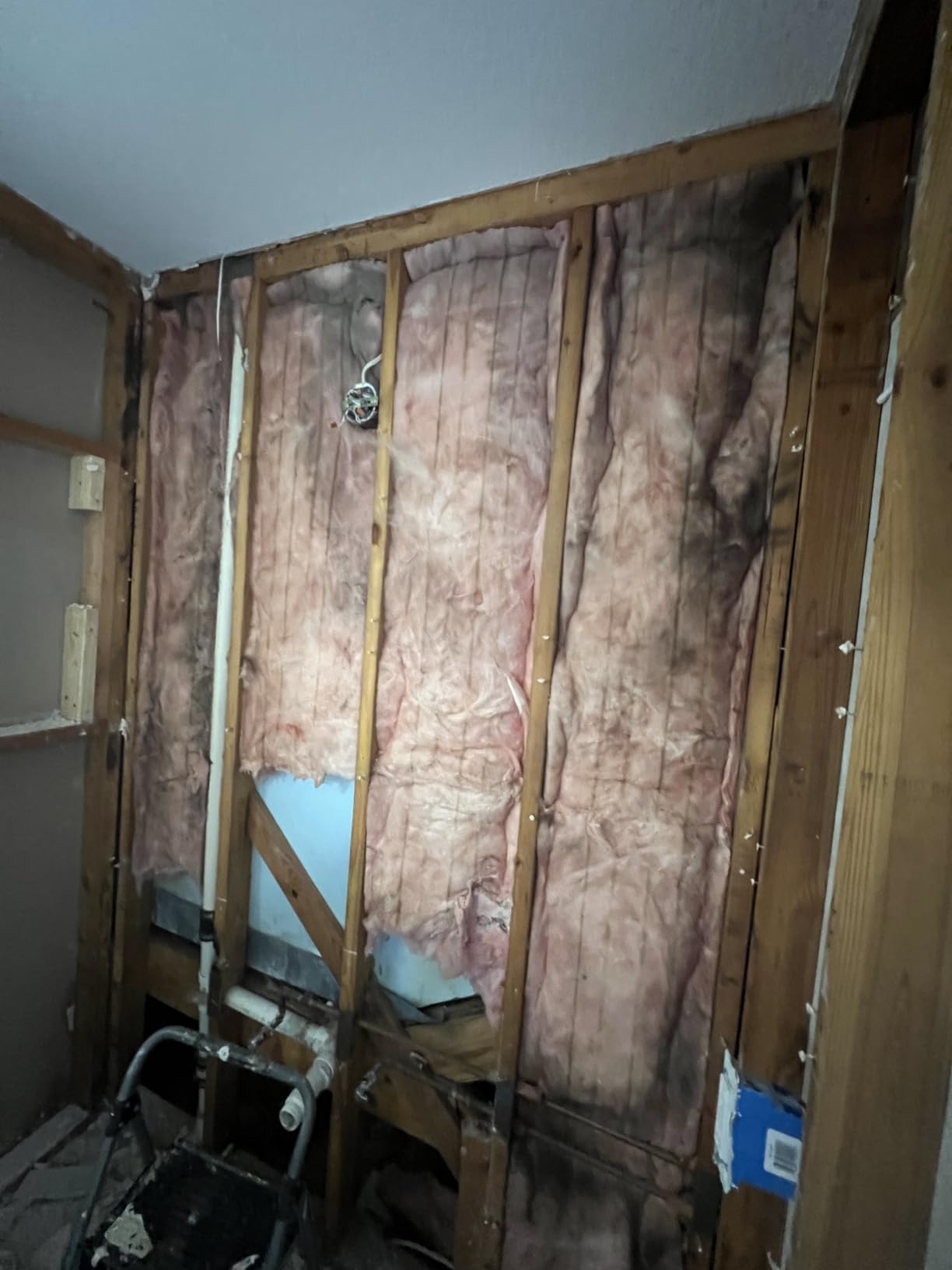

6. Acoath Dual-Lens 1080P Borescope: Best Combining Articulation and Two Lenses
Acoath Two-Way Articulating Borescope, Endoscope Camera with Light, Dual-Lens 1080P Industrial Inspection Camera, 4.3″ IPS Screen, 32GB Card, IP67 Waterproof Sewer Tools – 5FT
210° articulation plus dual lenses
1080p on 4.3-inch IPS screen
0.33in probe, 5ft semi-rigid cable
IP67, 32GB card, about 570g
Pros
- Articulation plus dual lenses gives a wide working envelope
- One-button switch between front and side cameras
- Full 1080P with 8 adjustable LEDs
- 32GB card and full accessory kit in the box
- Lightweight 570g body reduces fatigue on long jobs
Cons
- 0.33in probe is thicker than slim articulating scopes
- Lowest average rating among articulating models
- 5ft cable is short next to 16.5ft rivals
- Macro range starts at 2cm
Almost every articulating scope gives you one lens and one direction at a time. The Acoath gives you a 210° two-way articulating tip and a 70° main lens plus a 60° side lens, switched with a single button, which is the widest working envelope of any articulating model here.
Two-way 210° articulation is 420° of total range of motion before you even use the side lens. On an engine bay job, that meant steering up behind a manifold, then hitting the side lens to look along the side of a bracket, all without pulling the probe out.
Image quality is 1920×1080 on a 4.3-inch IPS screen with 8 bright LEDs across four brightness levels, and the 32GB TF card is built in and included. The body weighs 570g, the lightest articulating unit in this group, which you notice after the second hour of a crawlspace job.
The macro focus range of 2 to 10cm is the compromise. It gives a good working image at normal inspection distance but is not sharp at the very close range where a scope with a 0.6 inch minimum focus does well, so this is a look-around tool rather than a microscope.
Decide whether you need both articulation and a side lens
If your work involves looking at the side of something, this is the model that solves it in one insertion. Buyers regularly point to the articulation plus dual-lens combination as the reason to buy rather than choosing between the two features.
If you only need a forward view, you are paying for a side lens you will not use, and a single-lens articulating scope is a simpler tool.
Look closely at the probe diameter
At 0.33 inch, this probe is the thickest of the articulating models here. It handles cavities and engine bays but will not enter a spark plug hole or a narrow appliance vent where a 0.24 inch probe fits easily.
Its rating spread is also the widest of the articulating group, with 5% one-star reviews. Complaints centre on probe thickness, the 5ft cable and occasional focus or build issues, so check the stated dimensions against your tightest access point before committing.

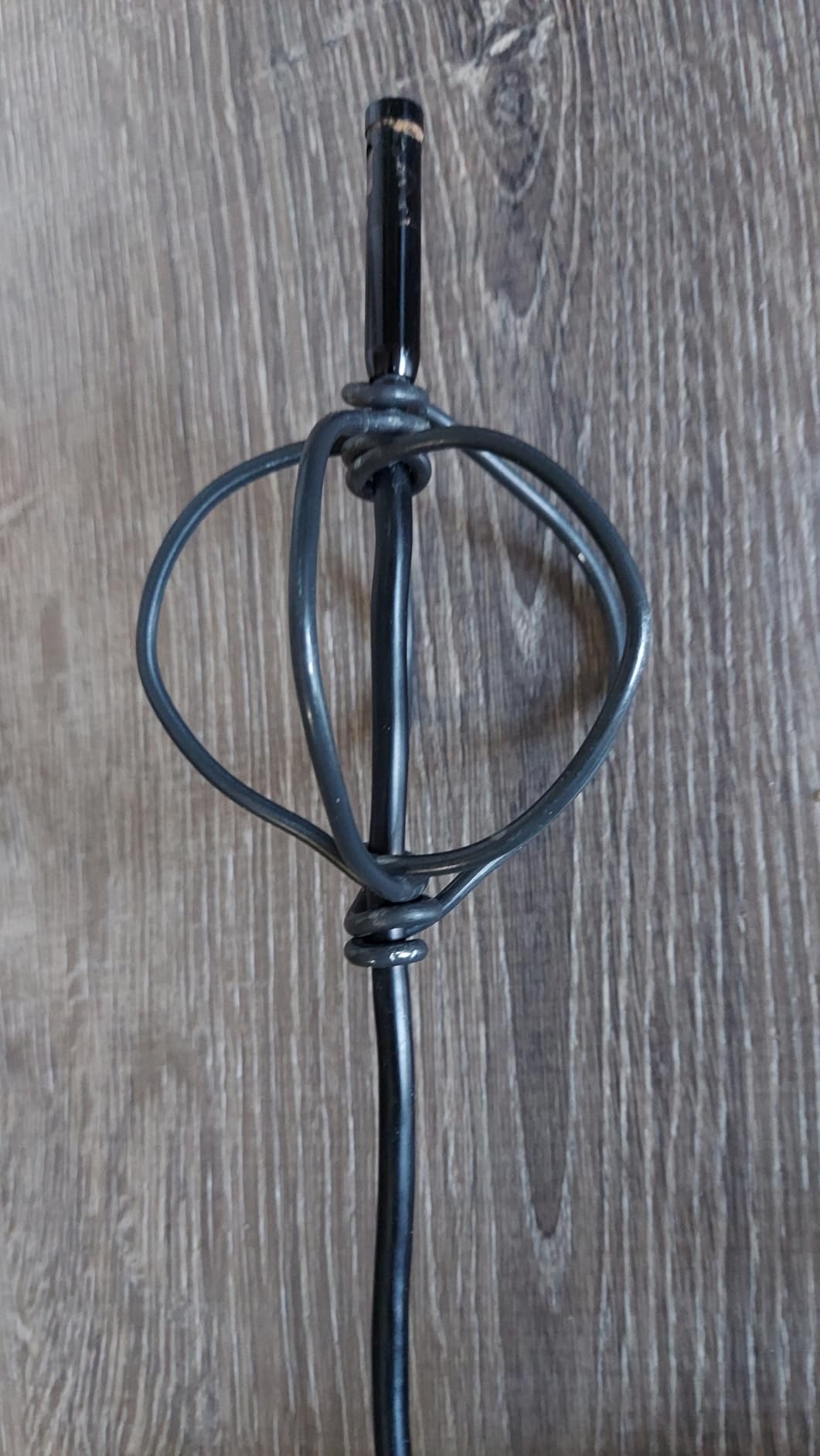

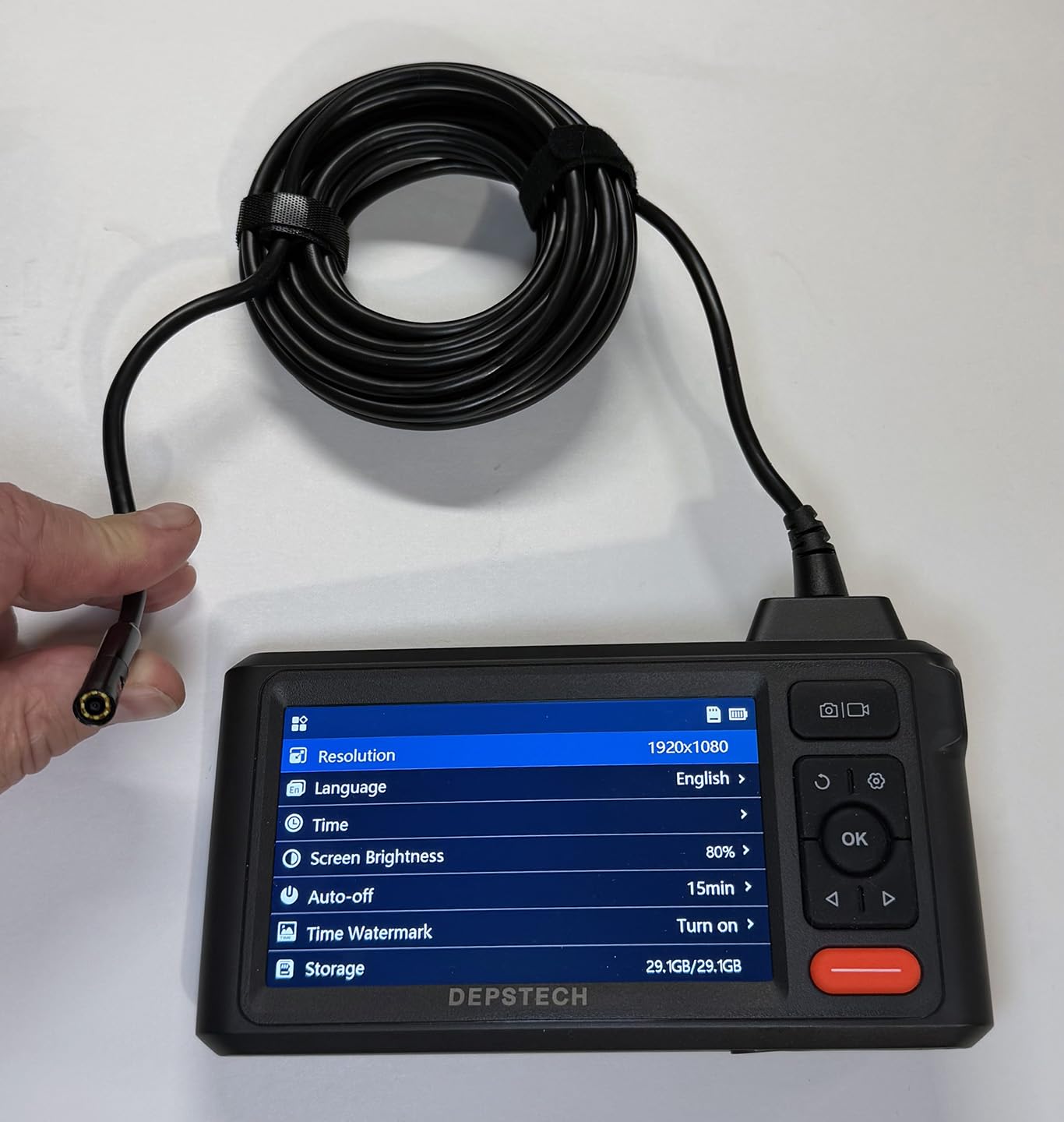

7. DEPSTECH DS620TL-5M Triple Lens Endoscope: Best Multi-Angle Scope Without a Phone
DEPSTECH Triple Lens Inspection Endoscope Camera with Light, 5″ IPS Screen
Triple-lens, one-button switching
1080P at 76° field of view
16.5ft semi-rigid cable, 5-inch screen
IP67, 10 adjustable LEDs, 2 years
Pros
- Highest average rating in this roundup with 83% five-star reviews
- Three lenses cover multiple angles without repositioning
- Large 5-inch IPS screen with clear low-lag image
- 16.5ft cable feeds fully into the area of interest
- IP67 probe and 10 LEDs for dark damp spaces
Cons
- No split-screen view like other DEPSTECH models
- Camera cable is not detachable from the main unit
- Changing views requires a hold on the back button
- Only 2-3 hours of battery life
This was the highest-rated camera we tested, at 4.7 stars across more than 500 reviews, and the rating is earned. The triple-lens design switches between three camera views with one button, and combined with a 16.5-foot semi-rigid cable it covers a lot of ground per insertion.
The 5-inch IPS screen runs low-lag real-time viewing, and the 2MP stills with 1080P video at a 76° field of view look clean on it. Ten adjustable LEDs sit in an 8+1+1 layout, so the main lens has plenty of light for a dark duct or a damp cavity.
It is also a self-contained unit. No phone, no Wi-Fi, no app. You press a button and the image appears, which is worth more in a crawlspace with no signal than any wireless feature would be.
The battery is the weak point at two to three hours of continuous operation, the shortest in this group, and the microSD card slot for photo and video is empty when it arrives. The camera cable is also not detachable from the main unit, so the whole thing goes in the bag together.
Three lenses versus split screen
This model switches sequentially between three views, and it does not offer the A+B or A+C split-screen that other DEPSTECH models provide. If you want both the forward and side views on screen at once, look at the dual-lens split-screen model instead.
Changing views also takes a deliberate two-second hold on the back button rather than a dedicated view key. It is a small thing, but it adds a beat every time you switch in the middle of an inspection.
Plan around a short battery
Two to three hours is enough for a typical domestic inspection if you start charged. It is not enough for a full day of commercial work without a spare battery, and you should buy a microSD card as standard since one is not included.
Owners consistently praise the three-lens switching, large clear screen and long semi-rigid cable. The complaints are software-level rather than fundamental: no split screen, no dedicated view button, a non-detachable cable and the short runtime.

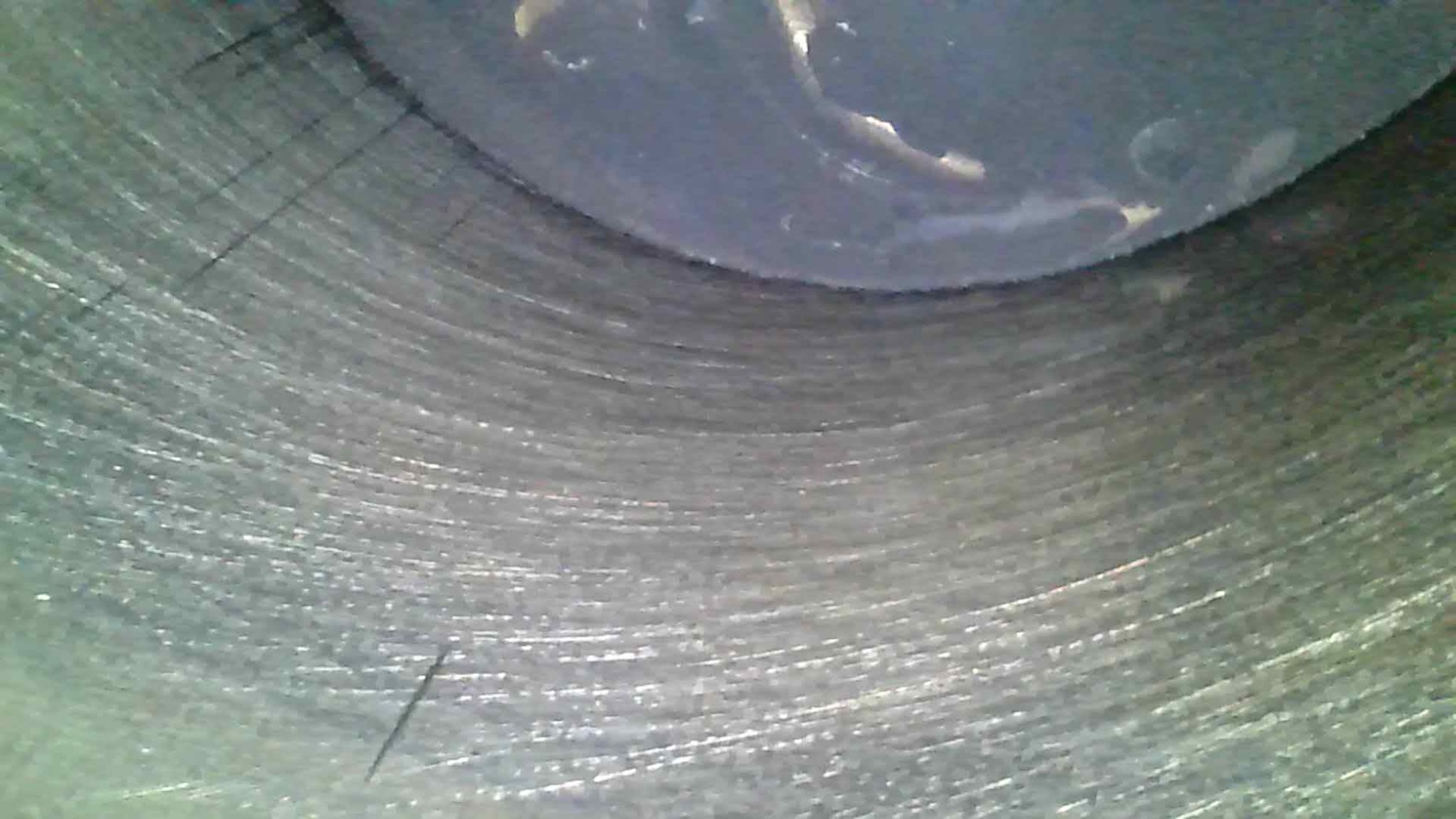

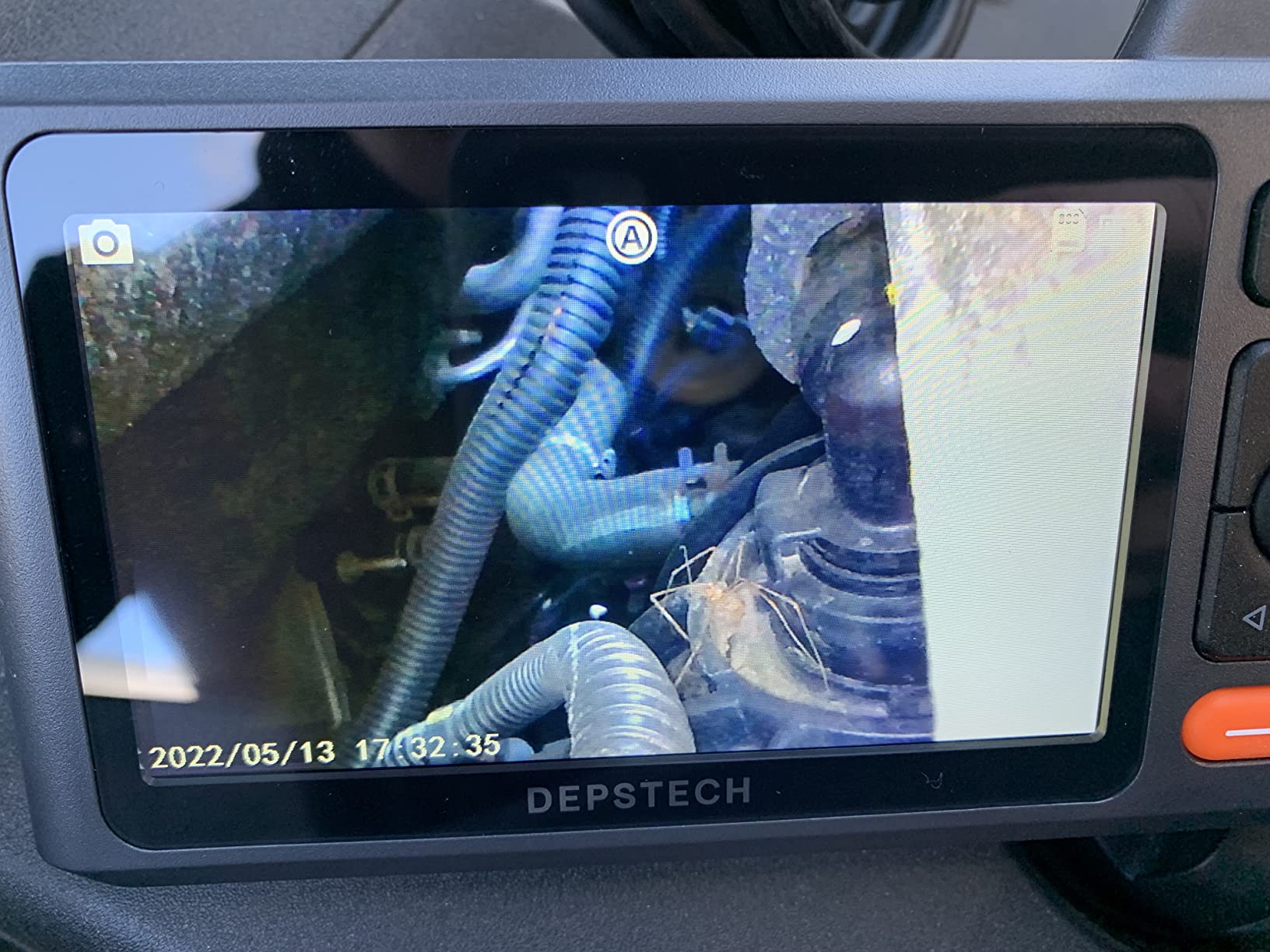

8. DEPSTECH DS300-DL Dual Lens Borescope: Best for Home Inspectors
DEPSTECH Endoscope Camera with Light, Dual Lens Inspection Borescope 16.5FT
Dual lens with split screen, 70° FOV mode
1080p video, 2.0MP stills
16.5ft semi-rigid cable
4.3-inch wide-angle IPS, IP67, about 4 hours
Pros
- Dual lens with split screen covers more angle per insertion
- 16.5ft cable reaches deep into ducts and drains
- 4.3-inch wide-angle IPS screen is easy to read
- IP67 waterproof with 180° image rotation
- Well established model with a large review base
Cons
- TF card is not included despite photo and video support
- Fixed focus with a narrow 3-8cm front camera range
- Menu system and buttons less intuitive than some competitors
- No articulating or steerable head
With more than 7,000 reviews on record, the DS300-DL is one of the most established inspection cameras in this category, and its dual-lens split screen is the feature professional users come back to. Seeing forward and to the side simultaneously halves the number of times you reposition in a cavity.
The 4.3-inch wide-angle TFT IPS screen has roughly a 170° horizontal viewing angle, so the image does not look squeezed, and 180° image rotation keeps orientation sane when the cable is fed in upside down, which it will be. Video is 1080p and stills are 2.0MP with 7 adjustable LEDs at three brightness levels.
The 16.5-foot semi-rigid cable bends and holds its shape, and the probe is IP67 waterproof, so wet plumbing and damp cavities are fine. A 70° field-of-view button gives a wider look when you need context rather than detail.
What to plan for: no TF card is included even though the unit records photos and video, so buy one. The front camera focuses between 3 and 8cm, the side between 2 and 6cm, and the fixed focus is a narrower window than some rivals manage.
Why split screen earns its place on a home inspection
On a pre-purchase inspection you are often documenting a defect and then writing it up. Split screen lets you frame the forward view and the side view together, so one capture shows the blockage and the pipe wall around it. That is a better evidence frame than a single angle you have to describe in notes.
The 180° image rotation solves the second common problem, which is a cable fed in backwards. Without it, half your photos are upside down and need editing before a homeowner sees them.
Handle the interface before the job, not during it
Owners describe the menu system and button layout as less intuitive than some competitors, and that friction is worst when a homeowner is watching over your shoulder. Spend five minutes with the controls before you leave the truck.
There is no articulating head, so this is a look-forward, look-side tool rather than a steering tool. For deep pipe, duct and wall work with a straight access path, that is exactly the right design.

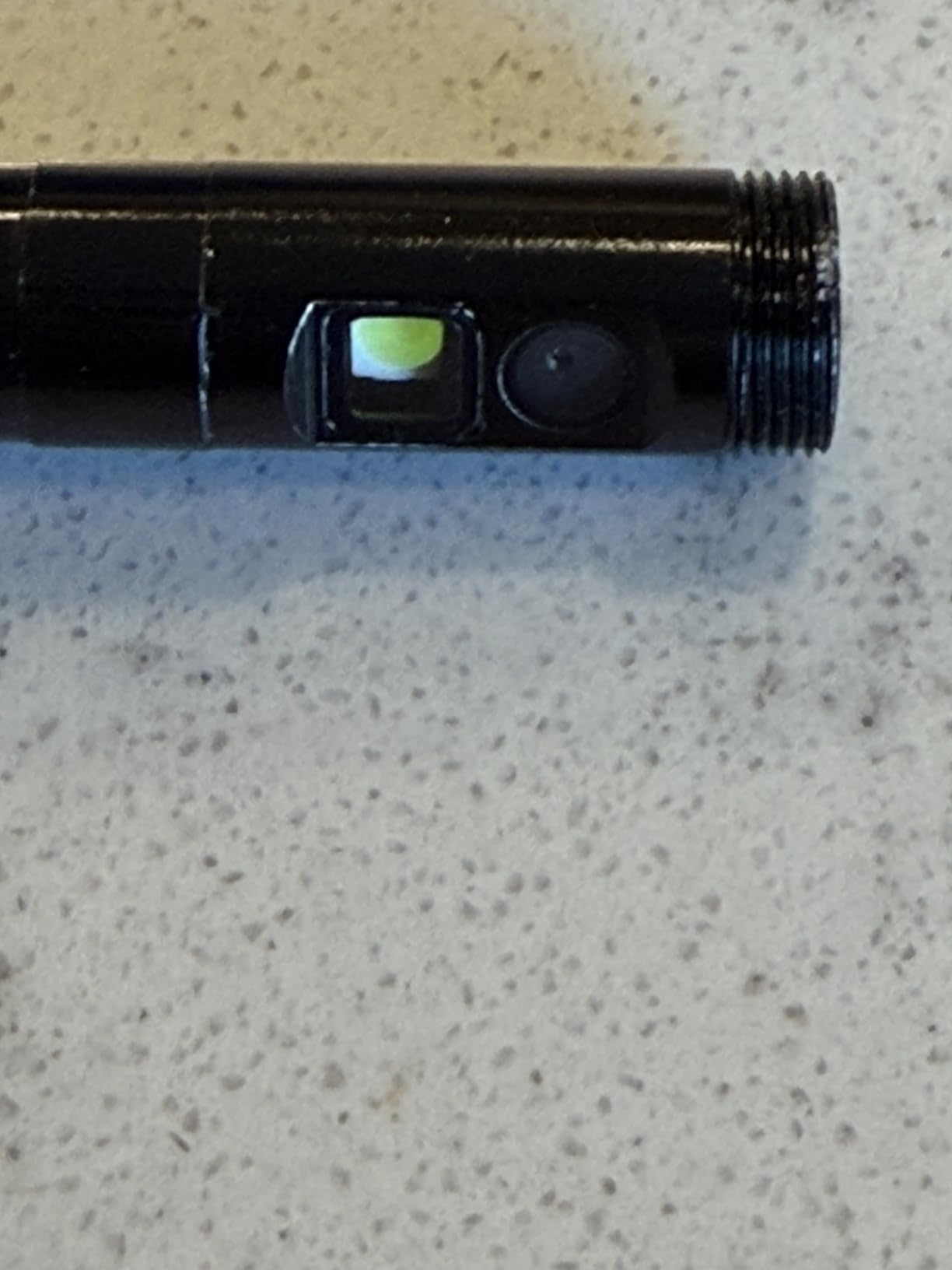

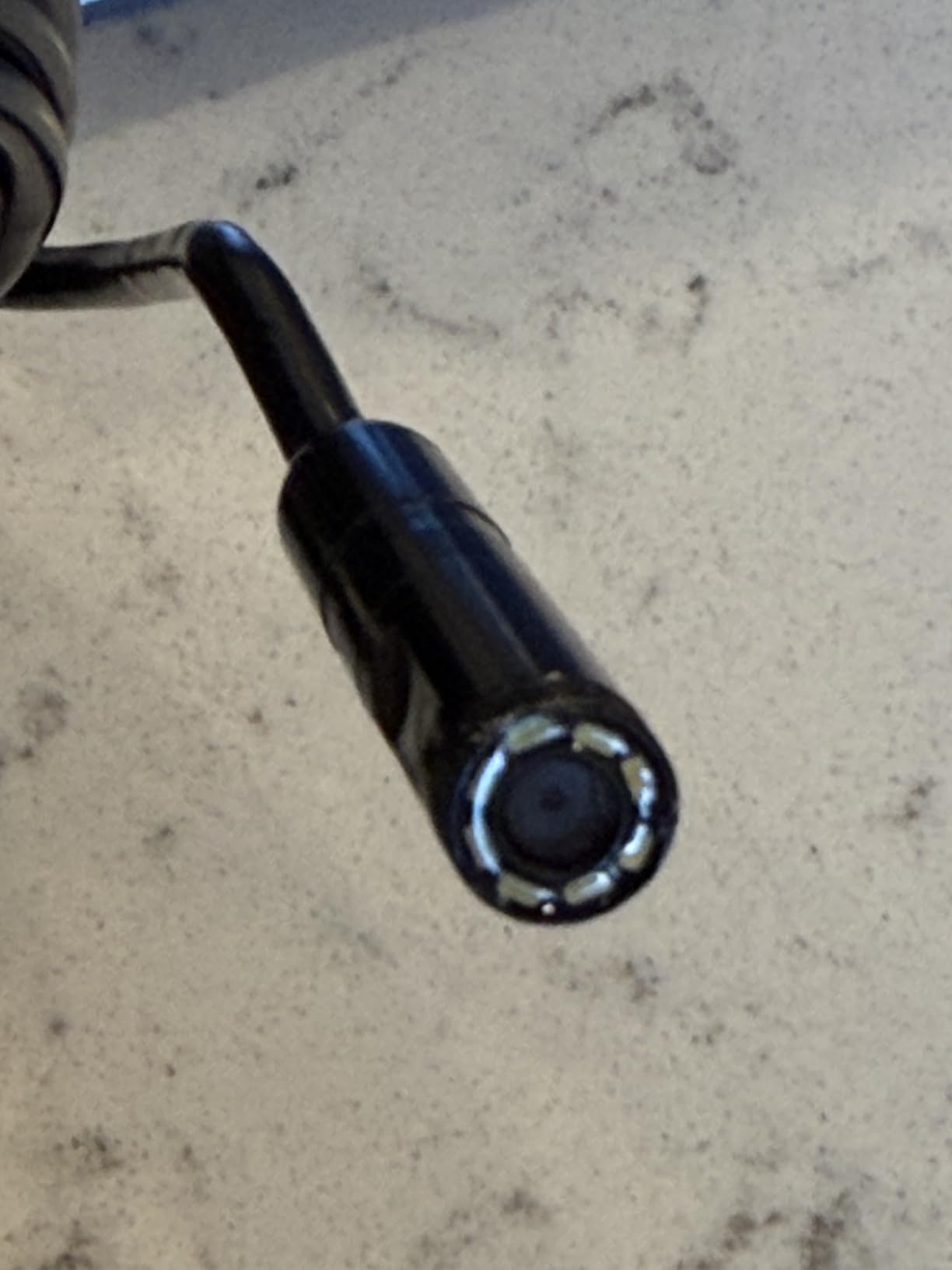

9. Kinpthy W400-B25 Phone Endoscope Camera: Best for Using Your Own Phone Screen
Endoscope Camera with Light,1920P HD Borescope Tools with 8 Adjustable LED Lights, Endoscope with Semi-Rigid Snake Camera, IP67 Waterproof Inspection Borescope for iOS and Android-16.4ft Dual-Lens
7.9mm probe, 1920x1440 stills and video
Plugs into iOS and Android, no own screen
16.4ft semi-rigid cable
IP67, works underwater to 3.28ft
Pros
- Phone-based design means no separate screen to carry or power
- Sharp 1920x1440 image for the money
- Dual lens avoids twisting the cable to see side walls
- Semi-rigid cable holds its shape behind drywall
- IP67 and usable underwater to 3.28ft
Cons
- No articulating or steerable head
- Cable can kink or coil after about 2 feet
- Image quality varies by phone
- No overheat protection warning
The Kinpthy is the only phone-connected camera in this roundup. There is no screen and no battery to manage. You plug the probe into your phone with one of the included Android, Lightning or Type-C adapters, scan the QR code, and the image appears in the SUP-ANESOK app.
That has real advantages. You carry nothing extra, you get a large display, and the phone handles storage and sharing so captures go straight into a report or a message to a client. Stills and video are 1920×1440 from a 7.9mm probe, which is sharp.
The probe is IP67 waterproof and rated to work underwater to 3.28 feet for one hour, which is a stronger submersion claim than most units here make. Eight adjustable LEDs light the cavity, and the dual lens switches without twisting the cable. The 16.4-foot semi-rigid cable unrolls and rolls back up quickly.
The trade-offs are real. There is no steering head at all, image quality varies with the phone and some Android models show blur, and the semi-rigid cable tends to kink or coil after about two feet, which stops it holding itself around a corner.
Check that the app works on your phone first
Because the phone does the processing, the image quality is not entirely the camera’s fault. Some Android models produce noticeably softer frames than the spec sheet implies, and the experience depends on the device, the adapter and the app version.
Verify the app installs and connects before you rely on it in a house with no signal. The 16 millimeter focal length and 10cm macro range also mean this is a mid-distance scope rather than a close-up inspection tool.
Know what you give up with no physical controls
There is no overheat protection warning on this unit, which makes it a poor choice inside a hot engine cylinder or a fired flue. One reviewer also reported a Lightning adapter that broke quickly, so treat the adapters as consumables.
Owners like the phone connectivity, the LED brightness and the dual-lens convenience for home and automotive checks. The complaints centre on the cable coiling after a couple of feet, variable image quality across Android devices, and the absence of any heat protection.

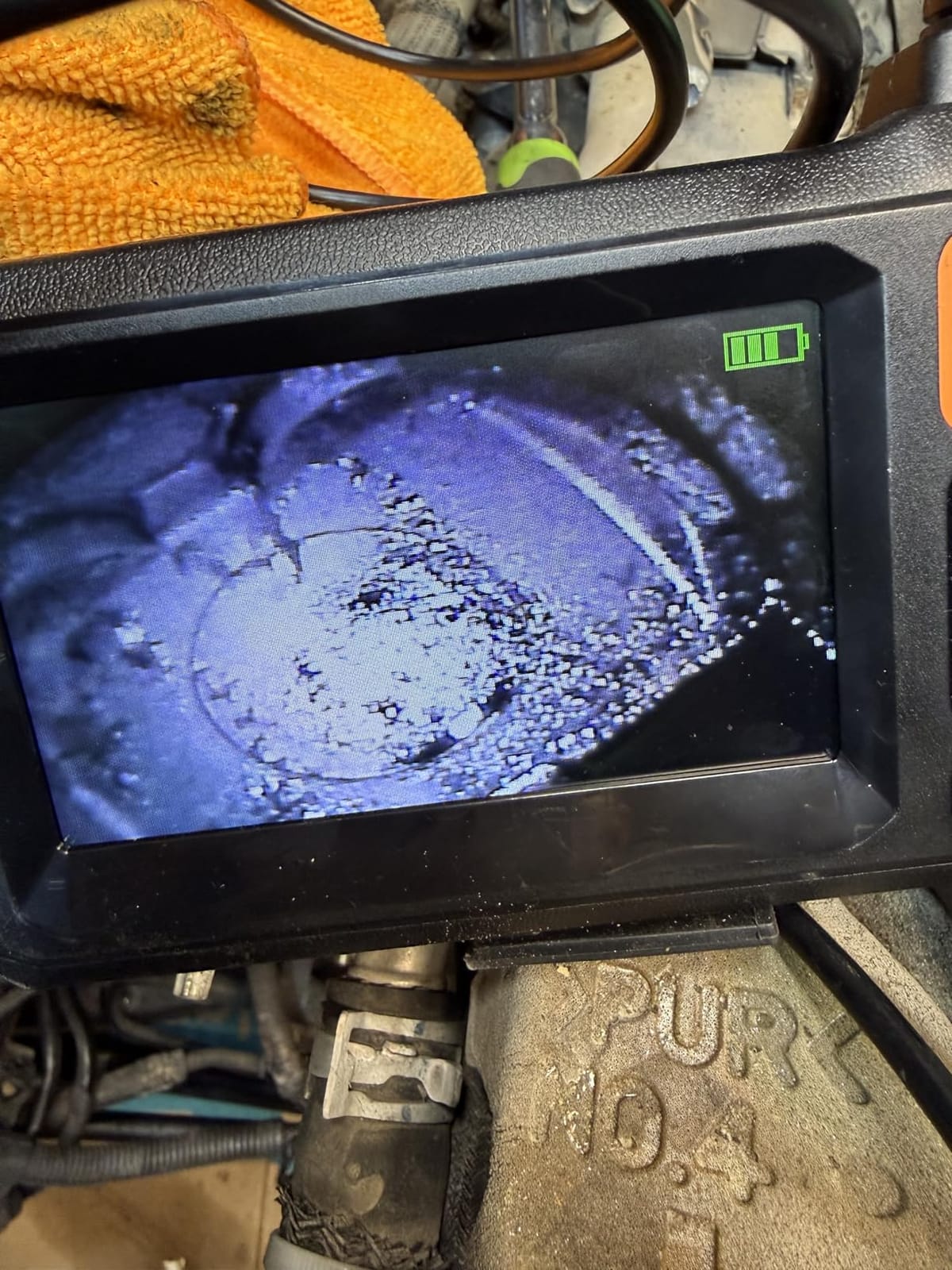

10. MugEasy C30-S-5M Dual Lens Borescope: Best for Narrow Pipe Work
Endoscope Camera with Light, 1920P HD Borescope Tools, Dual Lens(16.5FT)
1.29in short lens tip, 7.9mm probe
Dual lens with one-button switching
4.3-inch IPS screen, 16.5ft cable
8 adjustable LEDs, IP67, no app required
Pros
- Short 1.29in lens tip maneuvers in narrow pipes
- One-button dual-lens switching without installing a side mirror
- Self-contained screen
- no phone or app
- 8 adjustable LEDs and IP67 for wet pipe work
- Lightweight ergonomic handle for extended use
Cons
- Cannot take or store photos
- Fixed focus from 2cm to 10cm only
- No articulating tip
- No built-in storage for video capture
The MugEasy is built around one idea: get the lens tip into a pipe that other cameras cannot enter. The camera head is 1.29 inch long on a 7.9mm probe, and a short tip is exactly what you want when the pipe curves within the first few inches.
Beyond that it is a straightforward dual-lens scope. One button switches between the front and side cameras across three observation modes, so you can inspect the pipe wall without fitting a mirror over the lens. The 4.3-inch IPS screen has roughly a 170° horizontal viewing angle.
Eight LED lights with adjustable brightness and an IP67 waterproof rating cover wet pipe work, and the 16.5-foot semi-rigid cable reaches confined areas while holding its shape once placed. There is no Wi-Fi, no app and no phone connection required.
The limitation buyers mention most is documentation. This unit cannot take or store photos, which matters if your work involves reports. Fixed focus from 2cm to 10cm is a workable window but not adjustable.
Short lens tip versus short cable route
A 1.29 inch tip is short enough to follow a curve in a narrow pipe, where a conventional tip would jam against the wall and push the cable back. For drain and trap work that is the difference between seeing the blockage and only seeing the first few inches.
Pay for this with a fixed, non-adjustable focus window and no articulation. You steer by rotating the whole cable, not by bending a tip.
Confirm you do not need photo evidence
The lack of photo and video storage is the single most important thing to check here. If you are diagnosing your own home, a live view is enough. If you need to show a contractor, an insurer or a client exactly what you saw, choose a model that records.
Buyers like the short lens tip for pipes, the dual lens and the fact it needs no phone. The inability to capture photos or video files is the dominant limitation.
11. T TAKMLY N43 Dual Lens Endoscope: Best Budget Scope with a Long Cable
T TAKMLY Endoscope Camera with Light, Dual Lens 4.3” Inspection Camera, 1080P HD Borescope, IP67 Waterproof Snake Camera for Inspecting Walls, Vents, Automotive Engines, Pipes, 16.4FT
1080p real-time video on 4.3-inch IPS
8.0mm probe, 2cm-10cm focus
16.4ft semi-rigid cable
Dual lens, 8 adjustable LEDs, IP67
Pros
- Dual front and side views make sidewall inspection easier
- Sharp 1080P on a clear integrated 4.3-inch screen
- 8 adjustable LEDs bright enough for dark spaces
- 16.4ft cable feeds upward for multi-floor pipe runs
- Simple intuitive interface
- Light on the wallet
Cons
- Cannot take or save photos or video files
- Short 2-10cm focal length drops off beyond about 6 inches
- Rigid cable is hard to control where a pipe curves
The N43 is where we would send someone buying their first borescope. It has a real dual lens, 1920×1080 video on a 4.3-inch HD IPS screen, a 16.4-foot semi-rigid cable and a set of controls that anybody can pick up in a minute.
The cable is stiff enough to feed upward, which matters when you are looking up into a multi-floor pipe run or into a ceiling void from a ladder. Reviewers note it is long enough for pipe runs that span more than one level of a building.
Eight adjustable LEDs on the front camera can be switched off entirely, which is genuinely useful when you are working close to a reflective surface and the glare washes out the image. The magnet and hook are included for retrieving small items you drop into the same void.
Two limits. It cannot take or save photos or video files, so it is a look-only tool. And the 2cm to 10cm focal length is short, meaning image quality drops off beyond about 6 inches, so overview shots inside a wall are not its strength.
A stiff cable is a feature in vertical runs
Push the 16.4-foot semi-rigid probe upward into a ceiling cavity and it holds itself there, hands free. On a horizontal run into a wall it is less cooperative, and it is hard to control precisely where a pipe curves.
The same stiffness that lets you look up without holding the cable is what makes it awkward in a tight elbow. Expect to rotate the body to move the head rather than steering the tip.
Understand this is a viewing tool, not a documentation tool
The single most common buyer comment is that it will not record. For a homeowner trying to understand what is inside a wall, that is fine. For anyone who needs a photo in an email or a folder, look at a model with onboard storage.
A 2000mAh battery gives up to five hours of standby, and the 8.0mm probe is mid-sized: it will not enter a spark plug hole but handles pipes, vents and engine bays well.

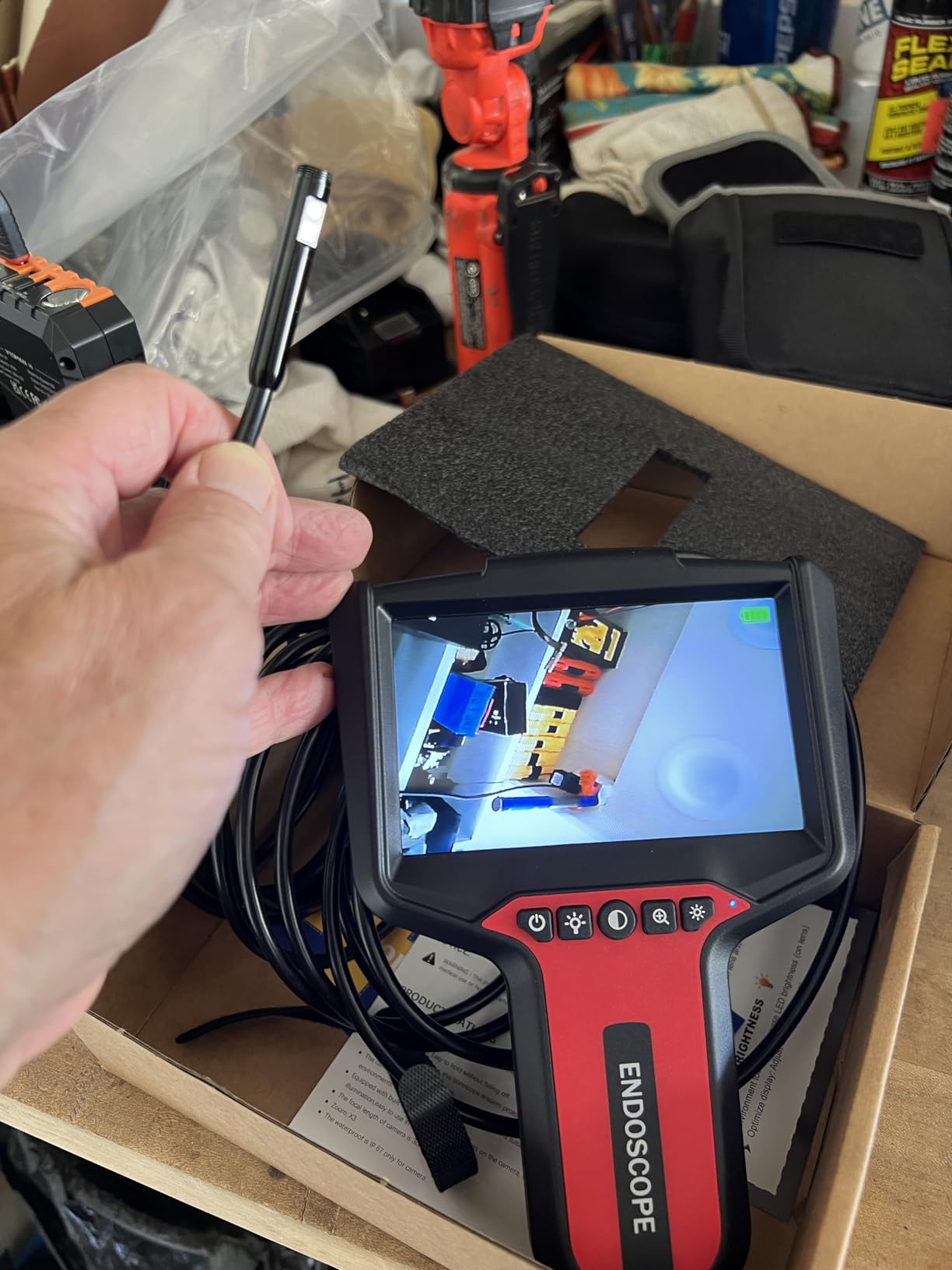

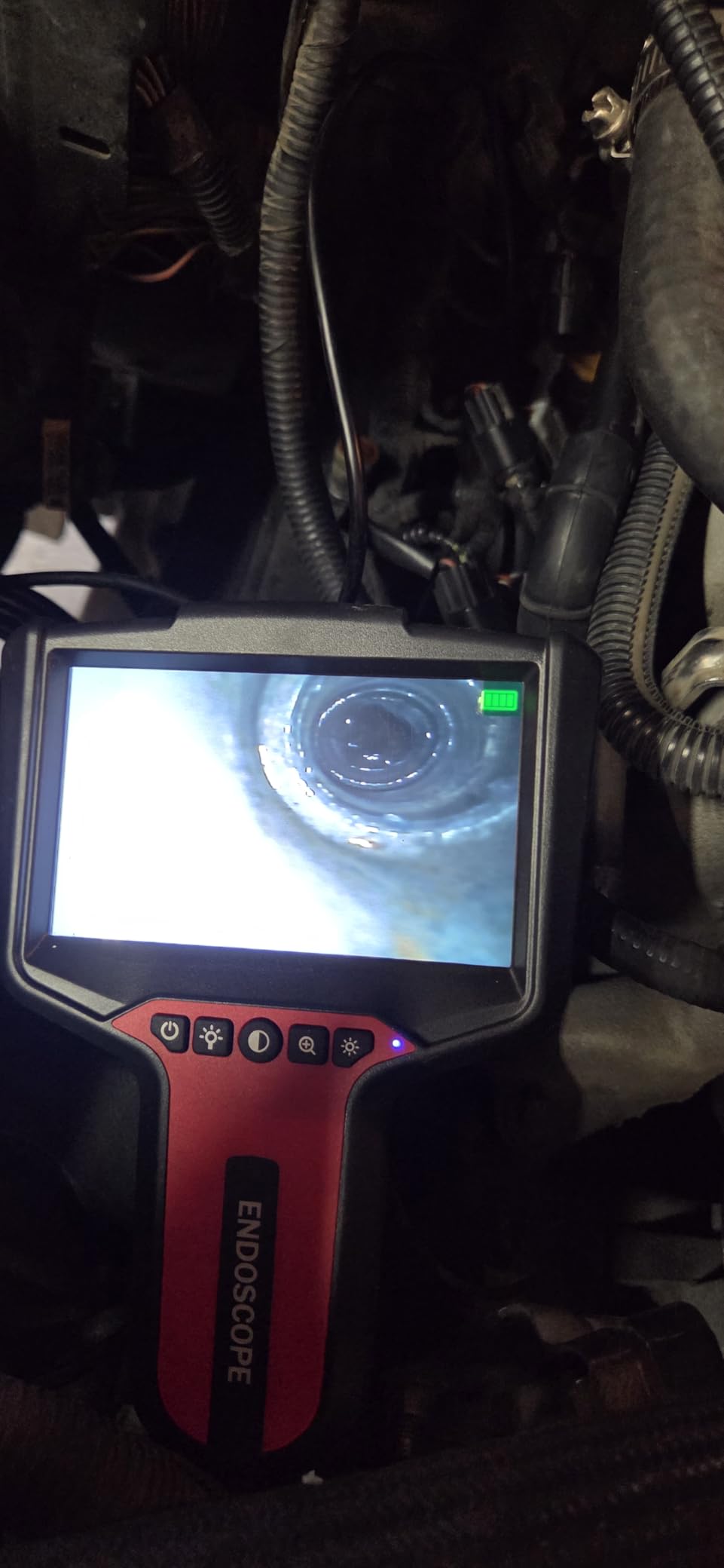

12. TGJOR G50 Five-Inch Dual-Lens Borescope: Best for Big Screen Viewing on a Budget
Endoscope Camera with Light: 5″ 1080P HD Dual-Lens Inspection Borescope Camera for Sewer – 16.4ft Waterproof Industrial Endoscope – Flexible Snake BoreScope for Plumbing Automotive – Gift Tool for Men
5-inch screen, 170° wide-angle view
1080P dual lens, 1.2-4 inch focus
16.4ft semi-rigid cable
8 adjustable LEDs, IP67, 3-4 hours
Pros
- Large 5-inch screen bigger than most units at this level
- 170° field of view with instant front and side switching
- Clear enough to see crosshatch patterns on cylinder walls
- 16.4ft cable with a 1.2-4 inch focus range
- Hook and magnet attachments included
Cons
- Cannot take pictures or record video
- No zoom and no adjustable focus
- Fairly rigid cable is hard to position precisely
- On-screen image settings have limited real effect
The TGJOR’s whole argument is the 5-inch screen showing a 170-degree wide-angle real-time view, and it is a bigger display than most of the scopes here. If you are inspecting with a partner, or you have limited vision in a dark cavity, that extra area pays for itself.
The dual lens switches instantly between front and side views, which makes sidewall inspection much less fiddly, and the 1080P resolution is clear enough to read crosshatch patterns on a cylinder wall. The 16.4-foot semi-rigid cable bends and holds its shape.
Eight adjustable LEDs work alongside screen brightness controls, which is what makes dark spaces usable, and a 2000mAh battery gives three to four hours of runtime over USB Type-C. It is a one-handed, no-app, no-Wi-Fi unit, and it arrives charged.
It also cannot record. There is no photo capture, no video, no zoom and no adjustable focus, just a fixed 1.2 to 4 inch range. The on-screen image adjustment settings have limited real effect on picture quality, and some subjects render soft.
A large screen is only useful up to a point
Screen size helps you see more, but it cannot create detail the sensor did not capture. On the TGJOR the 170-degree wide-angle view is genuinely useful for orientation, while close work is limited by the fixed 1.2 to 4 inch focus range and the absence of zoom.
If you mostly need to see where a cable runs and what shape a void is, the wide view works well. If you need to inspect a small defect up close, a model with a shorter minimum focus will serve you better.
Plan for a stiff cable in confined spots
The cable is fairly rigid and hard to position precisely in tight or awkward spaces. It is fine in an open pipe run or a generous cavity and frustrating where you need to hug a wall.
Owners treat this as a budget, no-frills tool: big screen, clear-enough image, long cable, dual lens and hook and magnet. The recurring criticisms are the lack of capture, no zoom or adjustable focus, and cable stiffness.
How to Choose an Inspection Camera for Tight Spaces?
The camera people want is almost never the one they need. Match the probe to the smallest gap you must enter, then choose articulation and recording around that. Everything below is ordered by how much it should influence your decision.
Probe diameter is the decisive variable
Probe diameter determines whether the camera gets into the space at all, and it is the one spec no amount of resolution compensates for. Buy for the tightest access point in your workflow, not the average one.
Here is the sizing logic we used. A 6.2mm or 0.24 inch probe passes a spark plug hole, a 1/2 inch pilot hole and most appliance vents. A 0.22 inch probe is the narrowest here and clears the smallest openings. An 8mm or 0.33 inch probe needs a proper 1 inch or larger hole and will not enter a plug hole at all.
Two traps. First, a thicker probe usually has a stiffer cable, so diameter and flexibility are linked. Second, a short lens tip like the 1.29 inch head on the MugEasy can navigate a curve that stops a longer tip, regardless of diameter.
Articulation types, from two-way to 360 degrees
Articulation is how the head steers. Two-way articulation, the most common in this roundup, steers left and right only. Three-way adds up and down. Four-way, on the better articulating scopes, gives full multidirectional control, and true 360-degree heads pan and tilt freely.
Two-way handles the majority of real work: looking behind a component, around a bracket, into the corner of a cavity. Choose more articulation when your work is inside plumbing or engine interiors where you need to look up and back at the same time. Also note that an articulating tip is a weak point. Push too hard and the internal wiring can be damaged, which is the most common way an articulating scope fails.
Semi-rigid, flexible and pushrod cables
Almost every camera in this roundup uses a semi-rigid gooseneck. It holds its shape when you let go, which is why you can look into a cavity hands-free, and it resists being pushed around tight 90-degree bends, which is the same property working against you in a pipe elbow.
A fully flexible cable follows a route more readily but has no memory, so it tends to coil and kink after a couple of feet. Pushrod cameras, where a rigid push rod advances the tip, dominate drain and sewer work on longer lines rather than handheld inspection.
Dedicated screen versus phone and Wi-Fi
Screen-equipped units work everywhere, including crawlspaces and basements with no signal. They cost more, need charging, and transfer files off a card or over USB. Phone-connected units, like the Kinpthy here, are lighter to carry and share easily, but the image quality partly depends on the phone and the app.
Reliability is the deciding factor. Forum discussions about Wi-Fi borescopes consistently centre on connection drops, latency and app updates, so if you need the camera to work every time, a self-contained unit with its own screen is the safer choice.
Focus distance, lighting and documentation
Focus distance matters more than resolution in dark cavities. A scope with a 0.6 inch minimum focus can fill the frame with a crack; one that starts at 2cm or 3cm will show that crack as a distant blur. Check the macro range before buying, not the headline megapixel count.
LED lighting is the difference between a usable frame and a black rectangle. Prefer units with adjustable brightness so you can dial it down near reflective metal and up in a deep wall cavity. IP67 covers splash and immersion for most probes, but check the stated submersion depth and time, and look for overheat protection before putting any probe inside a hot engine cylinder.
Finally, decide now whether you need evidence. Units that record to an included card, such as the Teslong TD450S with 32GB, cost nothing extra and save an argument later. Units that only show a live image are cheaper and simpler, and are fine for personal diagnosis.
Matching the camera to the job
Home inspectors and real estate professionals need documentation and a self-contained screen. Plumbers need IP67 protection, a long cable and a short lens tip. Automotive and diesel technicians want a slim probe, articulation and overheat protection. HVAC and electrical work rewards multiple lenses and a long semi-rigid cable. DIY homeowners mostly need a scope that fits a drilled hole and does not need an app.
There is no single winner across all of those, which is why there are twelve models here. A home inspector working in a wet crawlspace and a mechanic looking into a valve cover need genuinely different tools.
Cable care and avoiding probe snags
Coil the cable loosely in the case, never wrapped tight around the body. A tight wrap sets a permanent kink that will not straighten, and kinks are where semi-rigid cables fail.
Feed the probe gently, keep the tip moving when you are negotiating an elbow, and stop pushing the moment the cable stops feeding rather than forcing it. Wash the probe head after drain or duct work and dry the sealing surfaces before closing the case.
Check the stated IP rating and any submersion limit before you put a probe in standing water, and let it cool before storage after engine work. A soft lens with a scratched or fogged face produces a soft picture no update can fix.
Frequently Asked Questions
What is the difference between a borescope and an inspection camera?
A borescope is a type of inspection camera. The names are often used interchangeably, but strictly a borescope is a rigid or semi-rigid optical instrument used for looking into pipes and vessels, while an inspection camera is the broader category that includes flexible-probe borescopes, articulating endoscopes, sewer cameras and thermal imagers. Most consumer units sold as inspection cameras are small-diameter borescopes.
What type of camera is used to see inside tight spaces?
A small-diameter borescope, usually a camera head on a flexible or semi-rigid cable between 3.9mm and 8mm thick with built-in LEDs. Most of the units reviewed here run between 0.22 inch and 0.33 inch in probe diameter, which is what determines which gaps and openings they can physically enter.
What is the best inspection camera for home use?
For most homeowners the Teslong TD450S is the best all-rounder: a 5-foot semi-rigid steel cable, a two-way articulating tip and photo and video capture to an included 32GB card. If your work is confined to wall cavities, the Anykit and FOXWELL scopes are slimmer, and if you only need to look rather than record, the T TAKMLY N43 is the lowest-cost sensible entry.
What’s the difference between an endoscope and a borescope?
The difference is the cable. A borescope uses a rigid, semi-rigid or pushrod cable that holds its position so you can look hands-free. An endoscope uses a fully flexible, usually thinner cable that follows a route but has no memory and can coil. Flexible endoscopes reach further through curved paths; semi-rigid borescopes are far easier to aim in a tight cavity.
Is it worth buying a borescope?
Yes, if you have hit the point of debating whether to cut open a wall, pull an engine apart or remove a drain fitting just to look. A borescope turns a two-hour destructive investigation into a two-minute look, and the scopes here are far cheaper than the repair you might be guessing at. It is worth less if the problem is in an area you can already see.
Our Verdict on Inspection Cameras for Tight Spaces in 2026
After six weeks of wall cavities, wet drains and engine bays, the Teslong TD450S is the best inspection camera for tight spaces overall. It is the one we kept picking up because the semi-rigid steel cable holds its shape, the 210° tip steers from a thumb lever, and it records to an included 32GB card without asking you to install an app.
Pick by access point rather than by ranking. The DXZtoz AGC430N is the value pick and its short 34mm bend section gets into cavities others wedge in. The FOXWELL Y400 and Anykit are the slimmest probes here and the only two that reach a spark plug hole. The Teslong NTS300 and DEPSTECH DS620TL-5M give you 16.5 feet of reach with multiple lenses for drain and duct work. The MugEasy has the shortest lens tip for narrow pipes.
Measure your tightest opening first, pick the probe that fits, and check whether you need to record anything before you buy. That one hour of measuring will save you a return.
